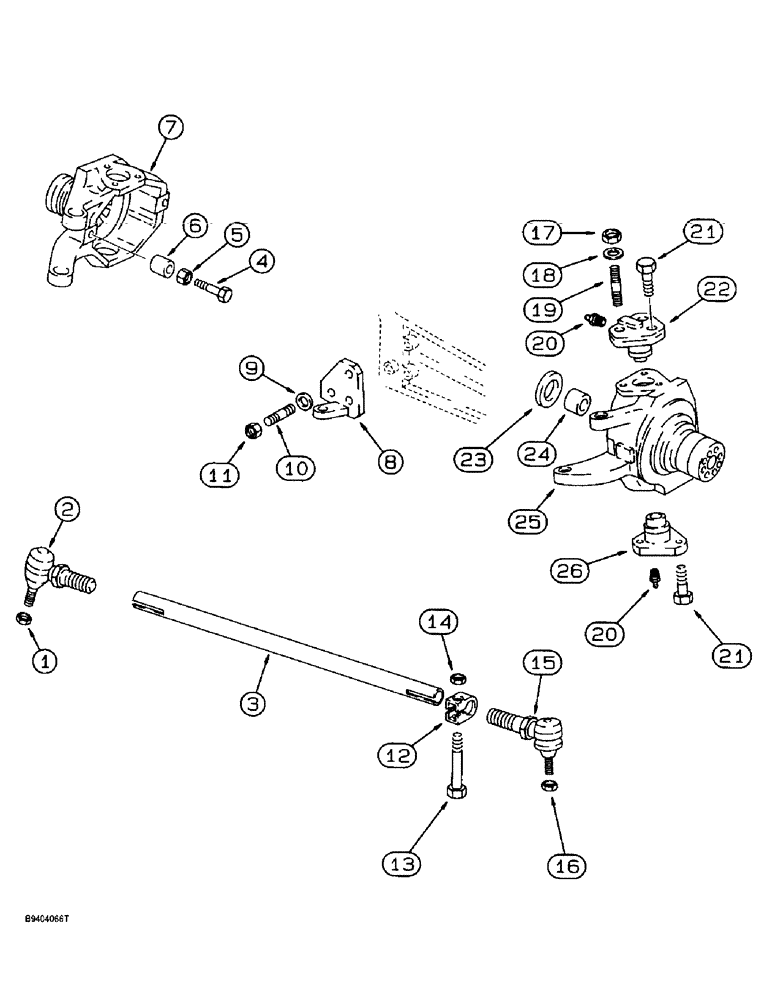

Запчасти Case 860 (6-65E) - FRONT AND REAR AXLE ASSEMBLIES - TIE ROD & SWIVEL HOUSING, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 this figure, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 figure 6-65A, 1 - 13 figure 6-65C, 1 - 27 this figure, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

1

102894A1

LOCK NUT

NUT - hex, self-locking, special, tie rod end

1шт.

2

K260250

BALL JOINT

JOINT - ball, right-hand (front axle), left-hand (rear axle)

1шт.

3

128383A1

ROD

- tie, steering, used with 111400A1 front axle

1шт.

3

N13498

ROD

- tie, steering, used with 111401A1 rear axle

1шт.

4

K395032

BOLT

- steering stop, special

4шт.

5

K965369

JAM NUT

- hex, special, 12 mm

4шт.

6

K393132

BUSHING

- swivel housing, used with 111401A1 rear axle

4шт.

7

N13499

HOUSING

- swivel, left-hand, used with 111401A1 rear axle

1шт.

7

N13523

LINK

HOUSING - swivel, left-hand, used with 111400A1 front axle

1шт.

8

N13501

SUPPORT

BRACKET - steering cylinder, left-hand

1шт.

8

N13502

SUPPORT

BRACKET - steering cylinder, right-hand

1шт.

9

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - lock, special

6шт.

10

N13503

STUD

- bracket

6шт.

11

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, special

6шт.

12

N8904

CLAMP

- tie rod

2шт.

13

N8905

BOLT

- hex, special

2шт.

14

K260157

NUT

- hex, self-locking, special

2шт.

15

K260254

BALL JOINT

JOINT - ball, left-hand (front axle), right-hand (rear axle)

1шт.

16

102894A1

LOCK NUT

NUT - hex, self-locking, special, tie rod end

1шт.

17

825-1414

NUT,M14, Cl 8

- hex, 14 mm - 2

1шт.

18

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

19

128382A1

STUD

- steering sensor mounting

1шт.

20

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , King pin M6 x 1, 16mm lg

4шт.

21

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - special, self-locking, king pin mounting

11шт.

22

122260A1

PIVOT

PIN - king, swivel, upper

2шт.

23

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, swivel housing

2шт.

24

1967535C1

BUSHING

- swivel housing

2шт.

25

N13521

LINK

HOUSING - swivel, right-hand, used with 111400A1 front axle

1шт.

25

N13497

HOUSING

- swivel, right-hand, used with 111401A1 rear axle

1шт.

26

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN - king, swivel, lower

2шт.

27

144611A1

SHIM

WASHER - spacer, kingpin, not shown

2шт.
