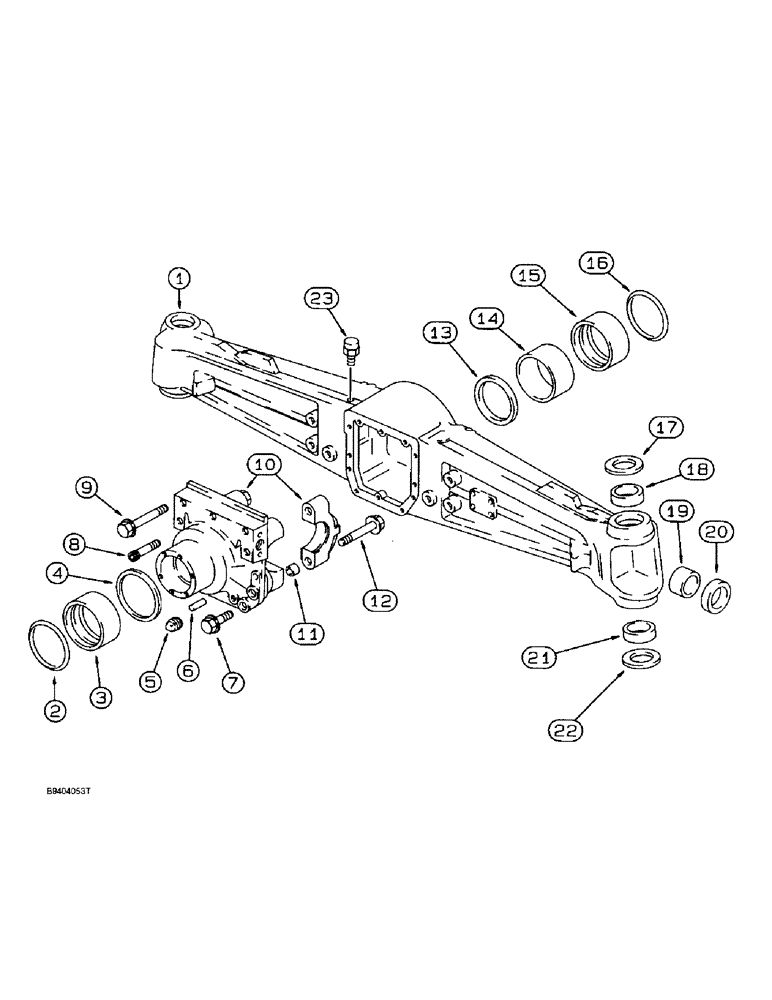

Запчасти Case 860 (6-65A) - FRONT AND REAR AXLE ASSEMBLIES - AXLE HOUSING, AXLES W/HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

111400A1

AXLE

ASSEMBLY - front, with hydraulic locking differential, Includes: Ref. 1 - 23 this figure, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

111401A1

AXLE

ASSEMBLY - rear, with hydraulic locking differential, Includes: Ref. 1 - 23 this figure, 1 - 13 figure 6-65C, 1 - 27 figure 6-65E, 1 - 12 figure 6-65G, 1 - 18 figure 6-65I, 1 - 7 figure 6-65K, and 1 - 27 figure 6-66

1шт.

1

122263A1

HOUSING

- front or rear axles

1шт.

2

K965267

O-RING,0.07" Thk x 4.489" ID

- front pivot, used with 111400A1 front axle

1шт.

3

K965265

BUSHING

COLLAR - front pivot, front pivot, used with 111400A1 front axle

1шт.

4

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

- thrust, rear pivot, used with 111400A1 front axle

1шт.

5

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

6

1966138C1

DOWEL

PIN - dowel

2шт.

7

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT - hex flange, 12 x 33 mm, class 12.9, Special, Carrier to housing

5шт.

8

128364A1

BOLT

- hex, special, 12 x 60 mm, Serial Range: carrier-housing

3шт.

9

128365A1

BOLT

- hex, special, 12 - 1,75 x 75 mm, Serial Range: carrier-housing

2шт.

128363A1

SUPPORT

CARRIER ASSEMBLY - differential, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

11

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering, carrier

4шт.

12

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special, Differential carrier Hex Flg, M14 x 75, 12.9

4шт.

13

K395022

WASHER

SPACER - front pivot, used with 111400A1 front axle

1шт.

14

K965266

BUSHING

SLEEVE - front pivot, used with 111400A1 front axle

1шт.

15

K965265

BUSHING

COLLAR - front pivot, used with 111400A1 front axle

1шт.

16

K965267

O-RING,0.07" Thk x 4.489" ID

- front pivot, axle housing, used with 111400A1 front axle

1шт.

17

122262A1

BELLEVILLE WASHER

- Belleville, axle housing, upper

2шт.

18

N14372

BUSHING

BEARING - roller, axle housing, upper

2шт.

19

K395019

BUSHING

- housing

2шт.

20

K395103

OIL SEAL

- oil, axle housing

2шт.

21

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, axle housing, lower

2шт.

22

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

- Belleville, axle housing, lower

2шт.

23

1966149C1

BREATHER

- axle housing

1шт.
