Запчасти Case 860 (6-62) - FRONT AND REAR AXLE ASSEMBLIES - AXLE SHAFTS, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

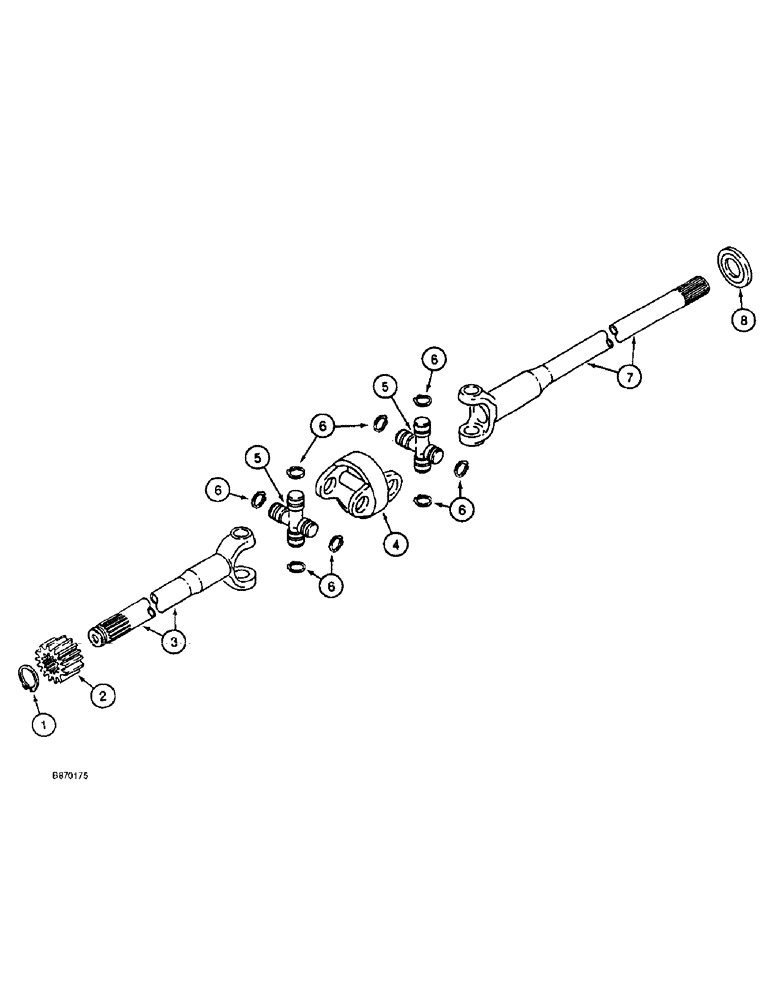

Схема запчастей Case 860 - (6-62) - FRONT AND REAR AXLE ASSEMBLIES - AXLE SHAFTS, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN
7
6
5
2
3
4
1
6
6
6
5
8
6

Артикул

Название

Примечание

Количество

H669895

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 this figure, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

H672080

AXLE

ASSEMBLY - rear, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 this figure, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

1

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

2

K395114

GEAR

- pinion, axle shaft

2шт.

N14156

SHAFT

ASSEMBLY - axle, Includes: Ref. 3 - 7

2шт.

3

N14409

SHAFT

- axle, wheel side, short

1шт.

4

N14412

BODY

- connecting

1шт.

5

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft, cross

2шт.

6

N14410

RING

- snap, universal joint

8шт.

7

N14413

SHAFT

- axle, differential side, long

1шт.

8

K395103

OIL SEAL

- oil, axle shaft

2шт.

Выбрано товаров: 13
