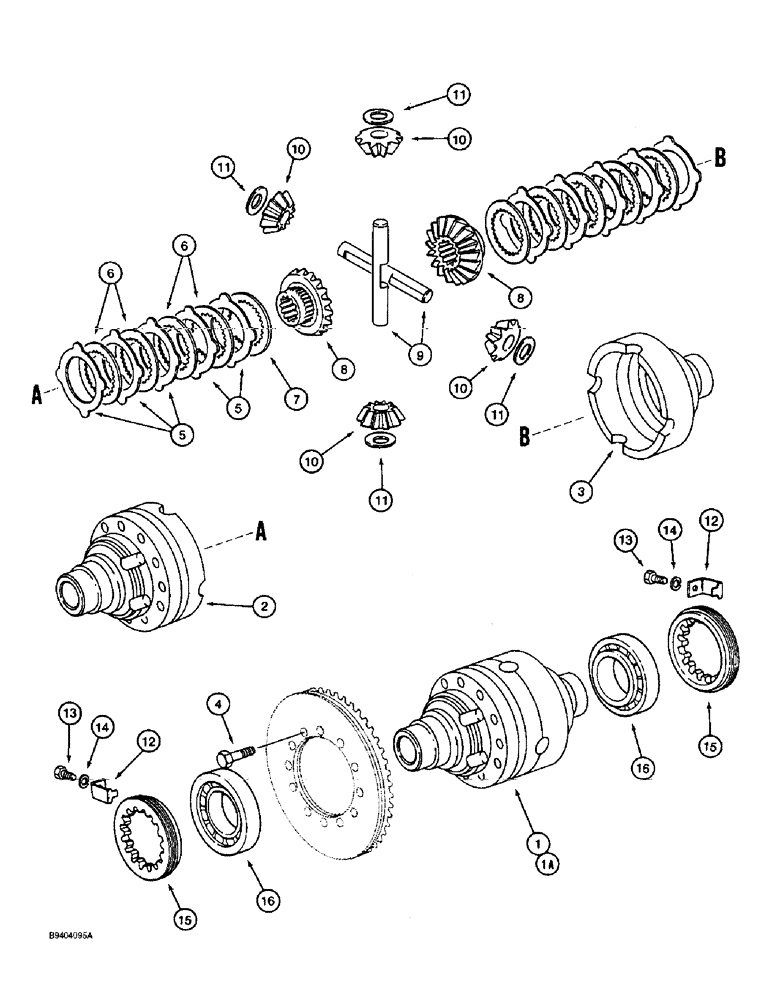

Запчасти Case 860 (6-60) - FRONT AND REAR AXLE ASSEMBLIES - DIFFERENTIAL, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

H669895

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 this figure, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

H672080

AXLE

ASSEMBLY - rear, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 this figure, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

1

1349056C1

HOUSING

ASSEMBLY - self locking differential, prior to front axle S.N. WA/14444, prior to rear axle S.N. WP/14445, Includes: Ref. 2 and 3

1шт.

1a

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY - differential, front axle S.N. WA/14444 and after, rear axle S.N. WP/1445 and after, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

4

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

5

1966155C1

PLATE

- drive, friction, outer

10шт.

6

1966156C1

WASHER

PLATE - driven, friction, inner

8шт.

7

1966154C1

PLATE

- backing

2шт.

8

1349057C1

PINION

GEAR - side, differential

2шт.

9

N13507

PIN

SHAFT - pinion gear

2шт.

10

N14408

SUN GEAR

GEAR - pinion, differential

4шт.

11

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear

4шт.

12

1966153C1

LOCKING PLATE

BRACKET - lock

2шт.

13

112486A1

BOLT,Hex, M6 x 12

BOLT - hex, self-locking, special

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

1966559C1

NUT

RING, LOCKING

2шт.

16

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.
