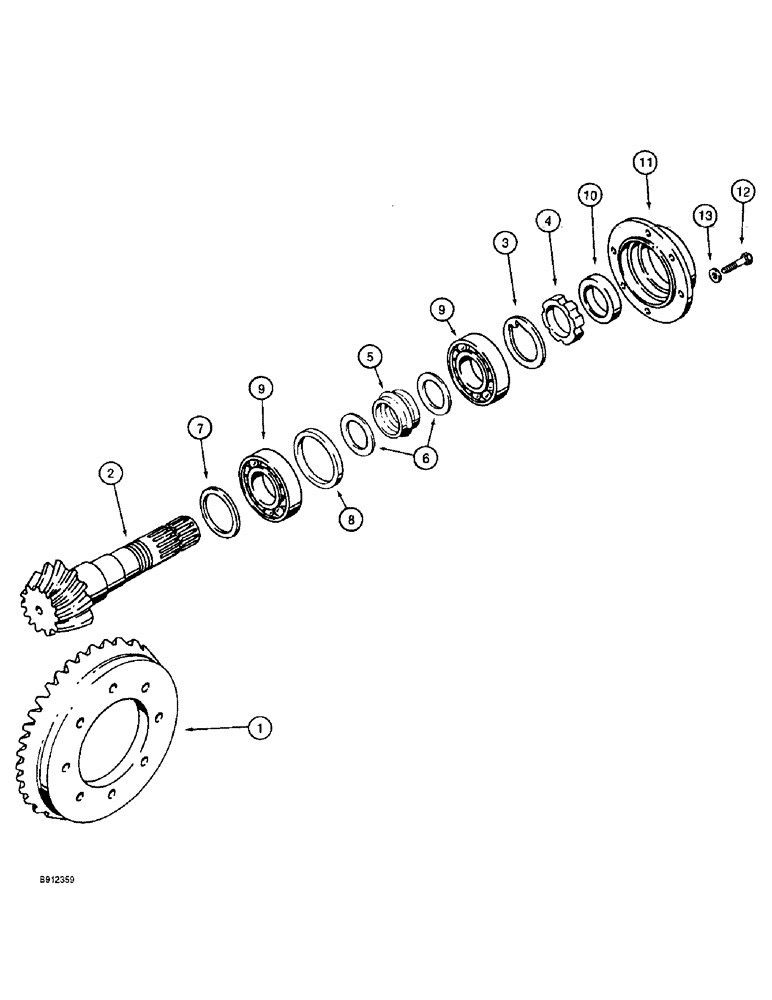

Запчасти Case 860 (6-58) - FRONT AND REAR AXLE ASSEMBLIES - RING & PINION GEAR SET, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
H669895
AXLE
ASSEMBLY - front, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 this figure, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64
1шт.
For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.
1шт.
H672080
AXLE
ASSEMBLY - rear, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 figure 6-56, 1 - 13 this figure, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64
1шт.
For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.
1шт.
N13506
BEVEL GEAR
GEAR ASSEMBLY - ring and pinion set, used with H669895 front axle, Includes: Ref. 1 - 6
1шт.
N13500
GEAR
ASSEMBLY - ring and pinion set, used with H672080 rear axle, Includes: Ref. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
GEAR - ring, differential
1шт.
2
NSS
NOT SOLD SEPARAT
GEAR - pinion, differential
1шт.
3
K261065
LOCK WASHER
- special
1шт.
4
K261014
RING NUT,M40 x 1.5
RING - nut, pinion gear
1шт.
5
1349058C1
SPACER
- collapsable, included or used with N13506
1шт.
6
1349059C1
WASHER,40.5mm ID x 50mm OD x 2mm Thk
- spacer, not included or used with N13506
2шт.
7
K965280
SHIM,2.50mm Thk
1шт.
7
K965282
SHIM,2.60mm Thk
1шт.
7
K965284
SHIM,40.1mm ID x 50mm OD x 2.7mm Thk
1шт.
7
K965286
SHIM,2.85mm Thk
1шт.
7
K965288
SHIM,2.90mm Thk
1шт.
7
K965290
SPACER
SHIM - 3.00 mm thick
1шт.
7
K965292
SHIM,3.10mm Thk
1шт.
7
K965294
SHIM,3.20mm Thk
1шт.
7
K965296
SHIM,3.30mm Thk
1шт.
7
K965298
SHIM,3.40mm Thk
1шт.
8
N14405
SPACER
- bearing, narrow, if used
1шт.
11
K395055
COVER
- differential
1шт.
12
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
- hex, full threads, 6 - 1.0 x 20 mm
6шт.
13
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
6шт.
Выбрано товаров: 28
