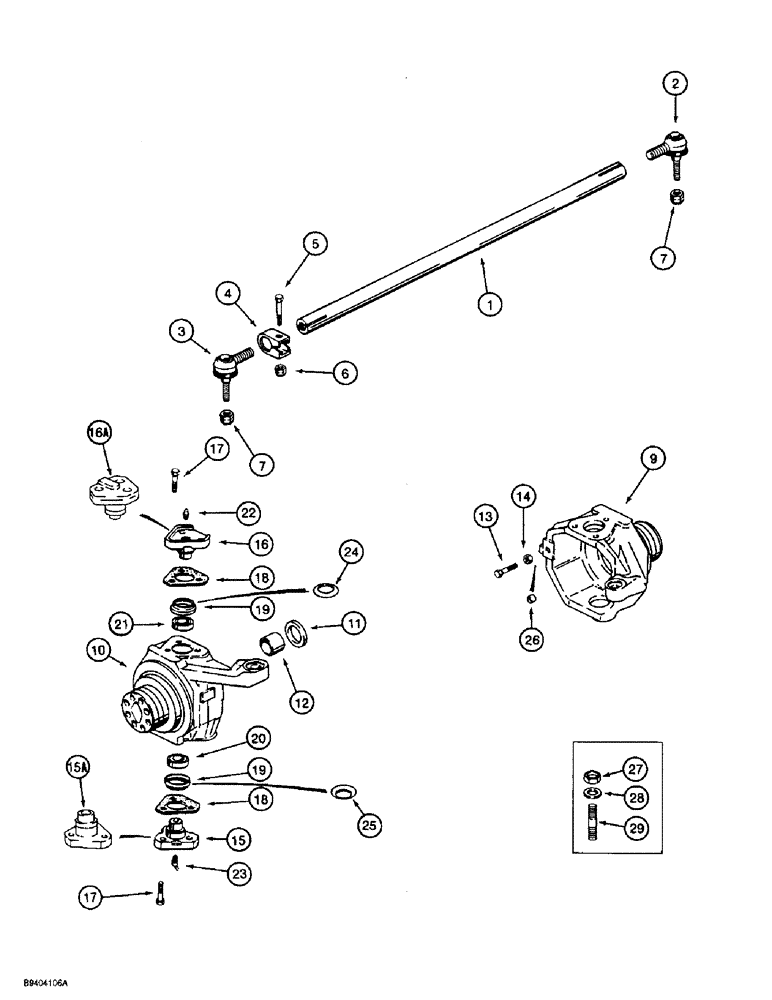

Запчасти Case 860 (6-56) - FRONT AND REAR AXLE ASSEMBLIES - TIE ROD & SWIVEL HOUSING, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

H669895

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 this figure, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

H672080

AXLE

ASSEMBLY - rear, Includes: Ref. 1 - 18 figure 6-54, 1 - 29 this figure, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

1

128383A1

ROD

- tie, steering, used with H669895 front axle

1шт.

1

N13498

ROD

- tie, sttering, used with H672080 rear axle

1шт.

2

K260250

BALL JOINT

JOINT - ball, right hand (front axle), left hand (rear axle)

1шт.

3

K260254

BALL JOINT

JOINT - ball, left hand (front axle), right hand (rear axle)

1шт.

4

N8904

CLAMP

- tie rod

2шт.

5

N8905

BOLT

- hex, special

2шт.

6

K260157

NUT

- hex, self-locking, special

2шт.

7

102894A1

LOCK NUT

NUT - hex, self locking, special, tie rod end

2шт.

9

N13523

LINK

HOUSING - swivel, right hand, used with H669895 front axle

1шт.

9

N13499

HOUSING

- swivel, right hand, used with H672080 rear axle

1шт.

10

N13521

LINK

HOUSING - swivel, left hand, used with H669895 front axle

1шт.

10

N13497

HOUSING

- swivel, left hand, used with H672080 rear axle

1шт.

11

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, swivel housing

2шт.

12

1967535C1

BUSHING

- swivel housing

2шт.

13

K395032

BOLT

- steering stop, special

4шт.

14

K965369

JAM NUT

- hex, special, 12 mm

4шт.

15

N13504

PIVOT

PIN - king, swivel, lower, if used

2шт.

15a

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN - king, swivel, lower, if used

2шт.

16

N14376

PIN

PIN - king, swivel, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

16a

122260A1

PIVOT

PIN - king, swivel, upper, if used

2шт.

17

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - special, king pin mounting

11-12шт.

18

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel pan, if used 0.10mm Thk

1шт.

18

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel pin, if used 0.19mm Thk

1шт.

18

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel pin, if used 0.35mm Thk

1шт.

19

K395039

SEAL

- bearing

4шт.

20

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, swivel pin, lower, two piece bearing

2шт.

21

N14372

BUSHING

BEARING - roller, swivel pin, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

22

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel pin, Upper M6 x 1, 16mm lg

2шт.

23

N13505

LUBE NIPPLE,45 Degree, M6 x 1

NIPPLE, LUBE, , Special, Swivel pin, Lower 45º, M6 x 1

2шт.

24

122262A1

BELLEVILLE WASHER

- Belleville, axle housing, upper if used

2шт.

25

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

- Belleville, axle housing, lower, if used

2шт.

26

K393132

BUSHING

- swivel housing, if used

4шт.

27

825-1414

NUT,M14, Cl 8

- hex, 14 mm - 2, if used

1шт.

Items 27 - 29 replace one item 17 bolt in the upper kingpin.

1шт.

28

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, If used

1шт.

Items 27 - 29 replace one item 17 bolt in the upper kingpin.

1шт.

29

128382A1

STUD

- steering sensor mounting, if used

1шт.

Items 27 - 29 replace one item 17 bolt in the upper kingpin.

1шт.
