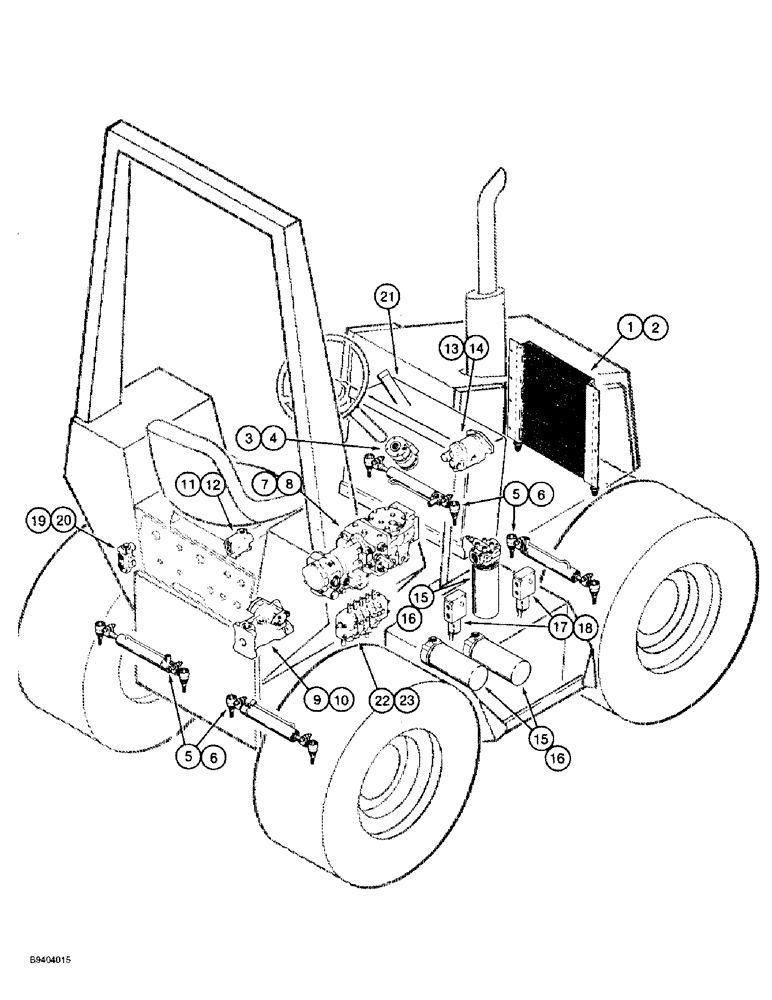

Запчасти Case 860 (1-12) - PICTORIAL INDEX - PRIME MOVER HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Hydraulic oil cooler mounting, Page

1шт.

8-15

1шт.

2

Hydraulic oil cooler supply and

1шт.

return lines, Page 8-15

1шт.

3

Steering control valve assembly and

1шт.

mounting, Page 5-3, 5-15, 5-15B

1шт.

4

Steering control valve hydraulic

1шт.

circuits, Page 5-9, 5-11

1шт.

5

Steering cylinder assembly and

1шт.

mounting, Page 5-11, 5-23

1шт.

6

Steering cylinder hydraulic

1шт.

circuits, Page 5-11

1шт.

7

Tandem pump assembly and mounting

1шт.

Page 6-7, 6-11 - 6-25

1шт.

8

Tandem pump (ground drive)

1шт.

hydraulic circuits, Page 6-7, 6-9

1шт.

9

Ground drive motor assembly and

1шт.

mounting, Page 6-9, 6-29

1шт.

10

Ground drive motor hdraulic

1шт.

circuit, Page 6-7, 6-9

1шт.

11

Priority flow divider valve

1шт.

assembly and mounting, Page 5-7

1шт.

5-19

1шт.

12

Priority flow divider valve

1шт.

hydraulic circuits, Page 5-7, 8-7 -

1шт.

8-11

1шт.

13

Dual pump assembly and mounting

1шт.

Page 5-7, 5-17

1шт.

14

Dual pump hydraulic circuits, Page

1шт.

5-7, 8-17

1шт.

15

Hydraulic charge and return filter

1шт.

assembly and mounting, Page 6-7

1шт.

6-33, 8-13, 8-125

1шт.

16

Hydraulic charge and return filter

1шт.

hydraulic circuits, Page 6-7, 8-13

1шт.

17

Solenoid valve assembly and

1шт.

mounting, Page 6-9, 6-31

1шт.

18

Solenoid valve hydraulic circuits

1шт.

Page 6-9, 6-9B

1шт.

19

Steering lockout valve assembly and

1шт.

mounting, Page 5-13, 5-21

1шт.

20

Steering lockout valve hydraulic

1шт.

circuit, Page 5-13

1шт.

21

Hydraulic oil reservoir and

1шт.

mounting, Page 8-3

1шт.

22

Attachment and rear steering

1шт.

control valve assembly and

1шт.

mounting, Page 5-13, 8-19 - 8-27

1шт.

23

Attachment and rear steering

1шт.

control valve hydraulic circuits

1шт.

Page 5-13, 8-7 - 8-11
