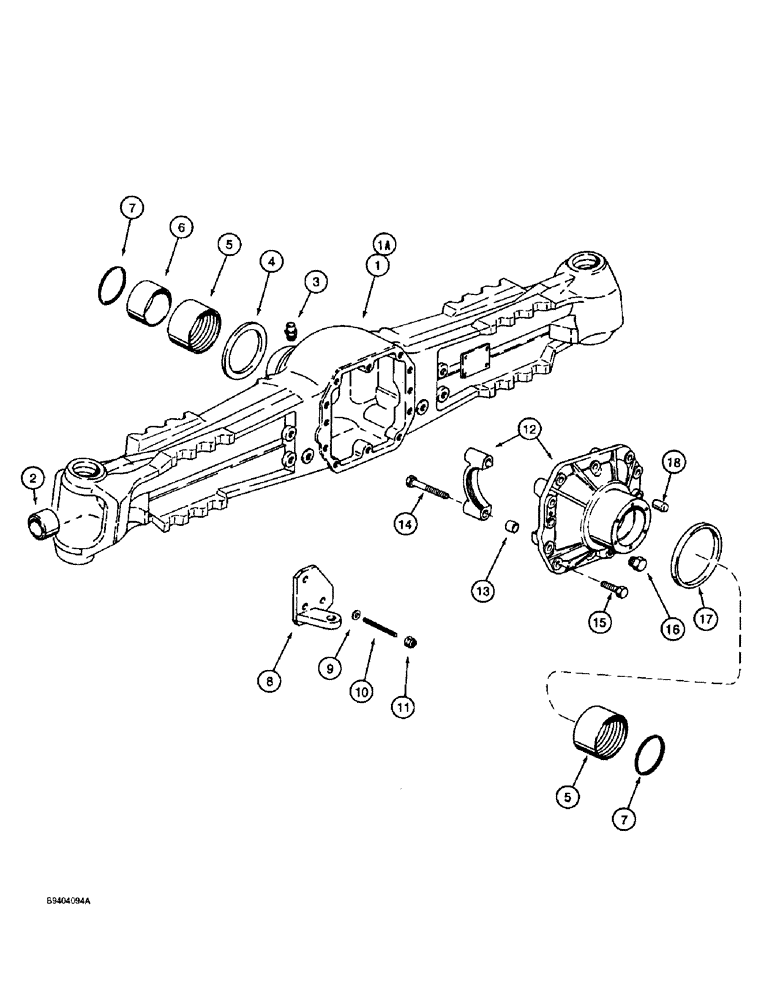

Запчасти Case 860 (6-54) - FRONT AND REAR AXLE ASSEMBLIES - AXLE HOUSING, AXLES W/O HYDRAULIC LOCKING DIFFERENTIAL (06) - POWER TRAIN

H669895

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 18 this figure, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

H672080

AXLE

ASSEMBLY - rear, Includes: Ref. 1 - 18 this figure, 1 - 29 figure 6-56, 1 - 13 figure 6-58, 1 - 16 figure 6-60, 1 - 8 figure 6-62, 1 - 30 figure 6-64

1шт.

For axles with Hydraulic Locking Differential, see Figures 6-65A through 6-66.

1шт.

1

N13496

HOUSING

- front or rear axles, prior to rear axle S.N. WA/1715 and prior to rear axle S.N. WP/1717

1шт.

1a

122263A1

HOUSING

- front or rear axles, front axle S.N. WA/1715 and after, rear axle S.N. WP/1717 and after

1шт.

2

K395019

BUSHING

- housing

2шт.

3

1966149C1

BREATHER

- axle housing

1шт.

4

K395022

WASHER

SPACER - front pivot, used with H669895 front axle

1шт.

5

K965265

BUSHING

COLLAR - front pivot, used with H669895 front axle

1шт.

6

K965266

BUSHING

SLEEVE - front pivot, used with H669895 front axle

1шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

O RING - front pivot, used with H669895 front axle

1шт.

8

N13501

SUPPORT

BRACKET steering cylinder, L.H., not shown

1шт.

8

N13502

SUPPORT

BRACKET steering cylinder, R.H., shown.

1шт.

9

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - lock, special, replaces K395052 lock washer

6шт.

10

N13503

STUD

- bracket

6шт.

11

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, special

6шт.

12

K395118

DIFFERENTIAL

CARRIER ASSEMBLY - differential

1шт.

13

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering, carrier

4шт.

14

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special, Differential carrier Hex Flg, M14 x 75, 12.9

4шт.

15

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT - hex flange, 12 x 33 mm, class 12.9, Carrier to housing

1шт.

16

110782A1

PLUG, DRAIN

PLUG - 24 mm, drain replaces A156873 plug

2шт.

17

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

- thrust, rear pivot, used with H669895 front axle

1шт.

18

1966138C1

DOWEL

PIN - dowel, Serial Range: housing-carrier

2шт.
