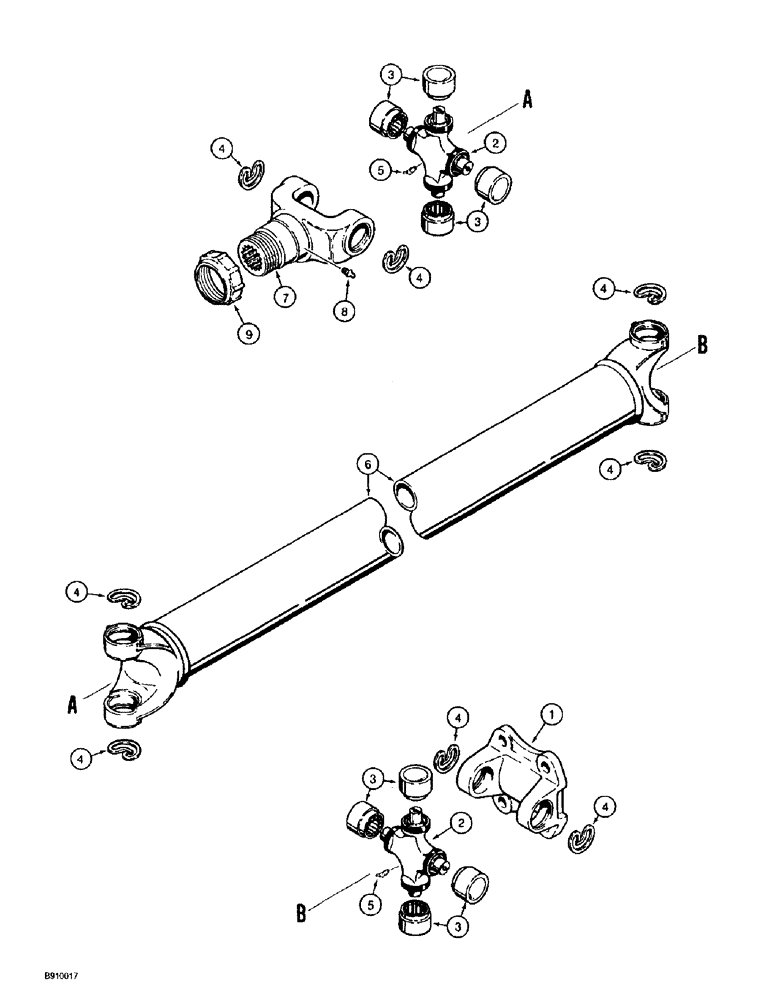

Запчасти Case 860 (6-48) - FRONT DRIVE SHAFT ASSEMBLY - H673501 (06) - POWER TRAIN

H673501

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front, Includes: Ref. 1 - 9

1шт.

1

H436605

FORK

BRACKET - flange

1шт.

H436603

KIT

- universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

1шт.

6

H673687

SHAFT

- drive, front

1шт.

7

H436604

FORK

YOKE - splined, Includes: Ref. 8

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

CAP - dust seal

1шт.
