(6-46) - FRONT DRIVE SHAFT ASSEMBLY - H672418

Запчасти Case 860 (6-46) - FRONT DRIVE SHAFT ASSEMBLY - H672418 (06) - POWER TRAIN

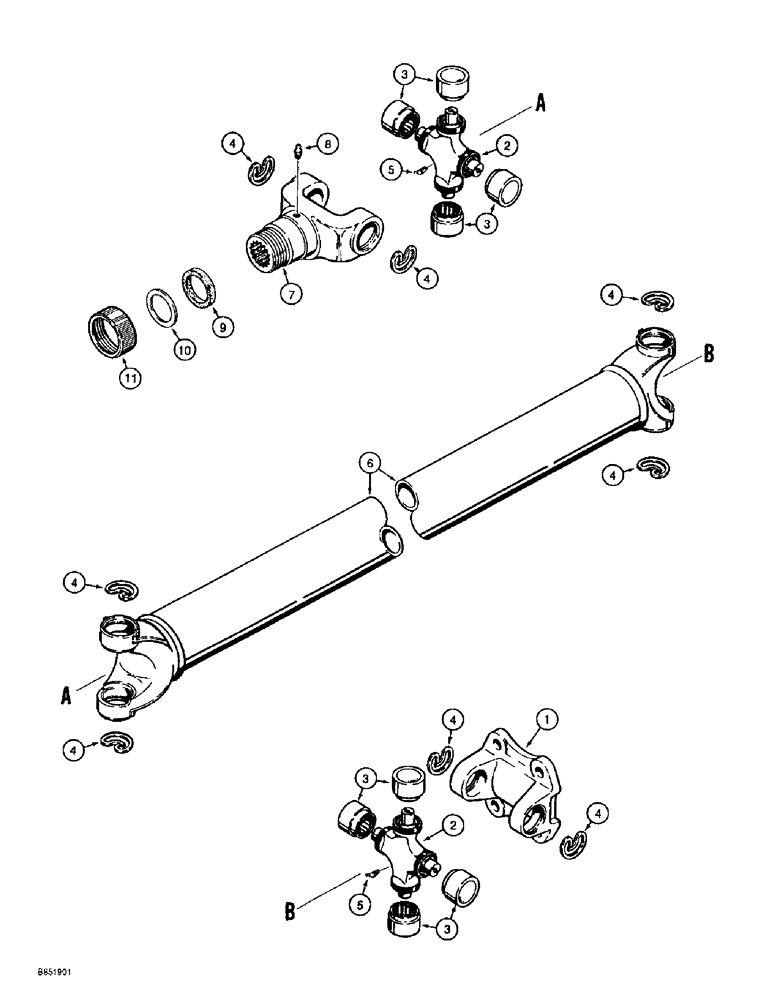

Схема запчастей Case 860 - (6-46) - FRONT DRIVE SHAFT ASSEMBLY - H672418 (06) - POWER TRAIN
3
4
4
4
7
2
3
10
5
9
4
4
6
2
3
4
4
5
8
11
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672418

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front, Includes: Ref. 11

1шт.

1

S80726

YOKE

BRACKET - flange

1шт.

R2713

BEARING ASSY

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - drive, front

1шт.

7

N13365

YOKE

- splined

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

9

R13997

WASHER

SEAL - dust, cork

1шт.

10

H299347

WASHER

- sealing, special

1шт.

11

H299321

CAP

- dust seal retaining

1шт.
