Запчасти Case 860 (6-42) - TRANSMISSION ASSEMBLY - 101703A1 - TRANSFER CASE (06) - POWER TRAIN

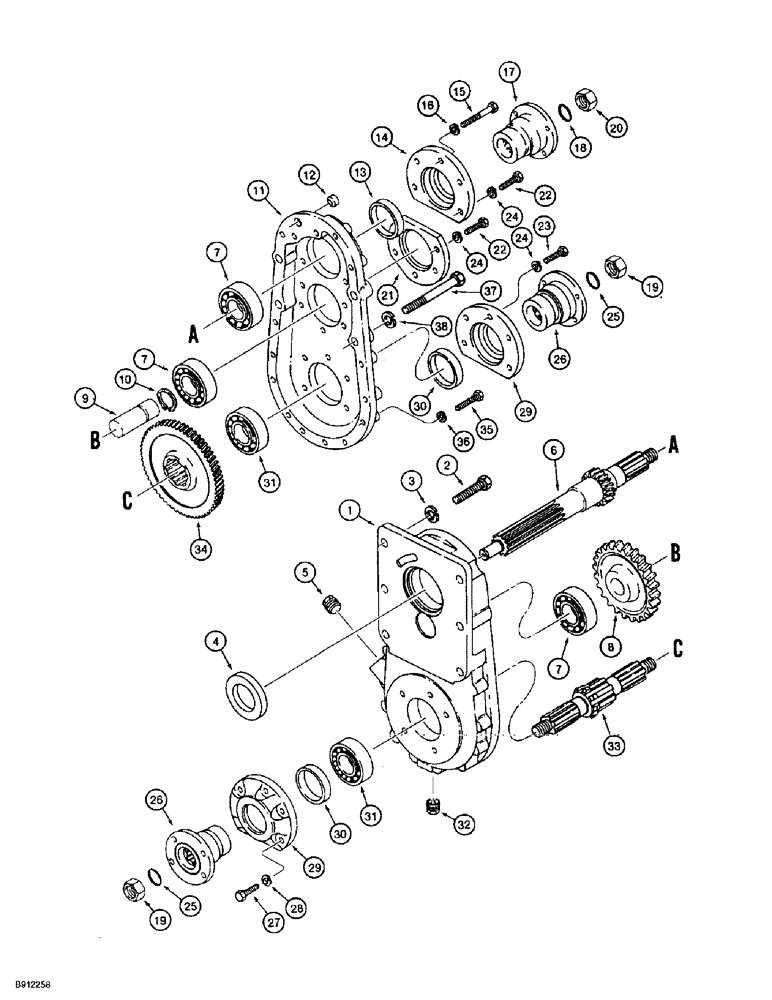

Схема запчастей Case 860 - (6-42) - TRANSMISSION ASSEMBLY - 101703A1 - TRANSFER CASE (06) - POWER TRAIN
29
33
24
12
6
7
25
9
10
2
15
31
1
30
3
11
14
21
8
37
17
36
29
35
22
13
34
30
22
16
20
18
26
19
31
25
24
27
32
4
7
38
19
23
24
26
28
5
7

Артикул

Название

Примечание

Количество

101703A1

CASE

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 22 figure 6-36, 1 - 22 figure 6-38, 1 - 12 figure 6-40, and 1 - 38 this figure

1шт.

1

105529A1

HOUSING

- transfer

1шт.

2

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm

2шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.

4

N13439

SEAL

- input shaft

1шт.

5

N13440

PLUG

- hex, oil fill, transfer housing

1шт.

6

105530A1

SHAFT

- input, transfer housing

1шт.

7

N13400

BALL BEARING

BEARING - ball, shaft

3шт.

8

105531A1

GEAR

- intermediate

1шт.

9

105532A1

PIN

- intermediate gear

1шт.

10

105533A1

RING, SNAP

RING - snap, gear

1шт.

11

105534A1

COVER

- transfer housing

1шт.

12

N13425

PLUG

- cover

1шт.

13

N13426

SEAL

- bearing

1шт.

14

N13427

COVER

- seal, upper

1шт.

15

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex, 10 - 1.5 x 55 mm

1шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

N13428

FLANGE

- input

1шт.

18

N13429

O-RING

SEAL - flange

1шт.

19

105535A1

SPECIAL NUT

- special, output shaft

2шт.

20

105536A1

SPECIAL NUT

- special, input shaft

1шт.

21

105539A1

COVER

- intermediate shaft

1шт.

22

614-10028

BOLT,Hex, M10 x 1.5 x 28mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 28 mm

9шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

5шт.

24

892-11010

LOCK WASHER,M10

14шт.

25

N13434

O-RING

SEAL - flange

2шт.

26

N13435

FLANGE

- output, transmission to drive shaft

2шт.

27

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

5шт.

28

892-11010

LOCK WASHER,M10

5шт.

29

N13436

BEARING COVER

COVER - output shaft bearing and seal

2шт.

30

N13426

SEAL

- bearing

2шт.

31

N13422

NEEDLE BEARING

BEARING - ball, output shaft

2шт.

32

N13407

PLUG

- magnetic, case drain

1шт.

33

N13438

SHAFT

- output, transmission

1шт.

34

105540A1

GEAR

- output shaft

1шт.

35

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

13шт.

36

892-11010

LOCK WASHER,M10

13шт.

37

814-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 8.8

4шт.

38

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

Выбрано товаров: 39
