Запчасти Case 860 (6-40) - TRANSMISSION ASSEMBLY - 101703A1 - COVER AND INPUT SHAFT (06) - POWER TRAIN

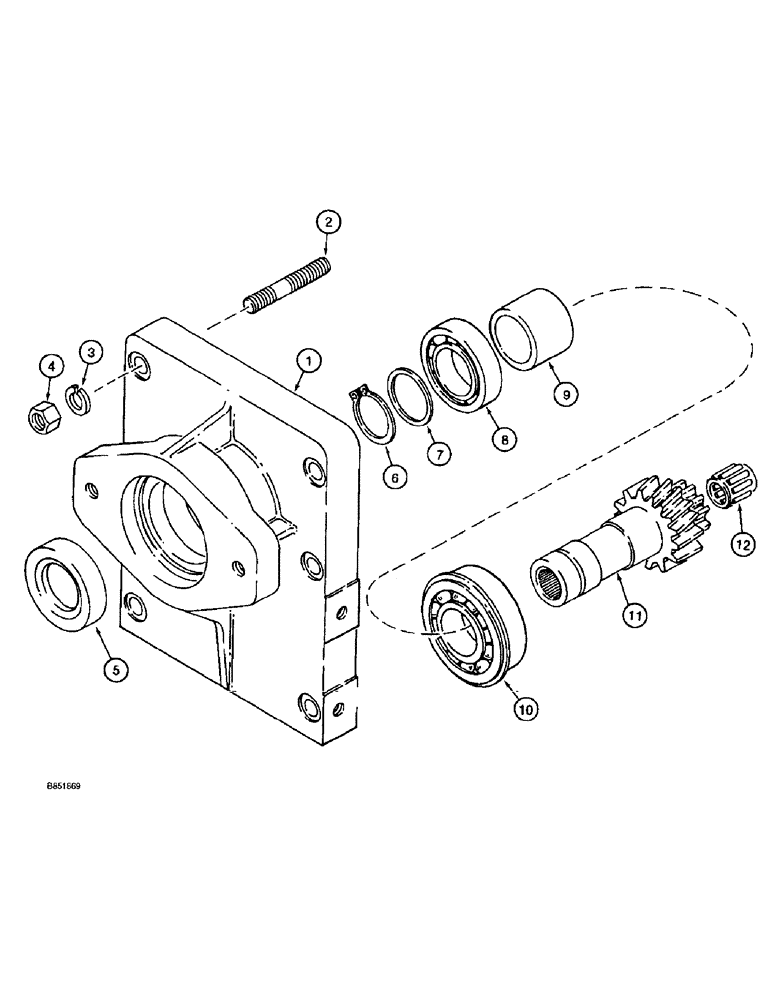

Схема запчастей Case 860 - (6-40) - TRANSMISSION ASSEMBLY - 101703A1 - COVER AND INPUT SHAFT (06) - POWER TRAIN
4
2
6
9
1
11
10
7
3
12
5
8

Артикул

Название

Примечание

Количество

101703A1

CASE

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 22 figure 6-36, 1 - 22 figure 6-38, 1 - 12 this figure, and 1 - 38 figure 6-42

1шт.

1

N13408

COVER

- transmission, motor end

1шт.

2

N13409

STUD

- cover

6шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

6шт.

4

825-1414

NUT,M14, Cl 8

- hex, 14 mm - 2

6шт.

5

N13416

SEAL,40mm ID x 72mm OD x 10mm Thk

- shaft

1шт.

6

N13415

RING, SNAP

RING - snap, bearing retaining

1шт.

7

N13414

SHIM,0.10" Thk

(2.5 mm) 0.10" Thk

1шт.

8

N13410

BALL BEARING

BEARING - ball, input shaft, small

1шт.

9

N13411

SPACER

- bearing

1шт.

10

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING - ball, input shaft, large

1шт.

11

N13413

SHAFT

- input, ground drive, Serial Range: motor-transmission

1шт.

12

N13412

NEEDLE BEARING

BEARING - needle, input shaft

1шт.

Выбрано товаров: 13
