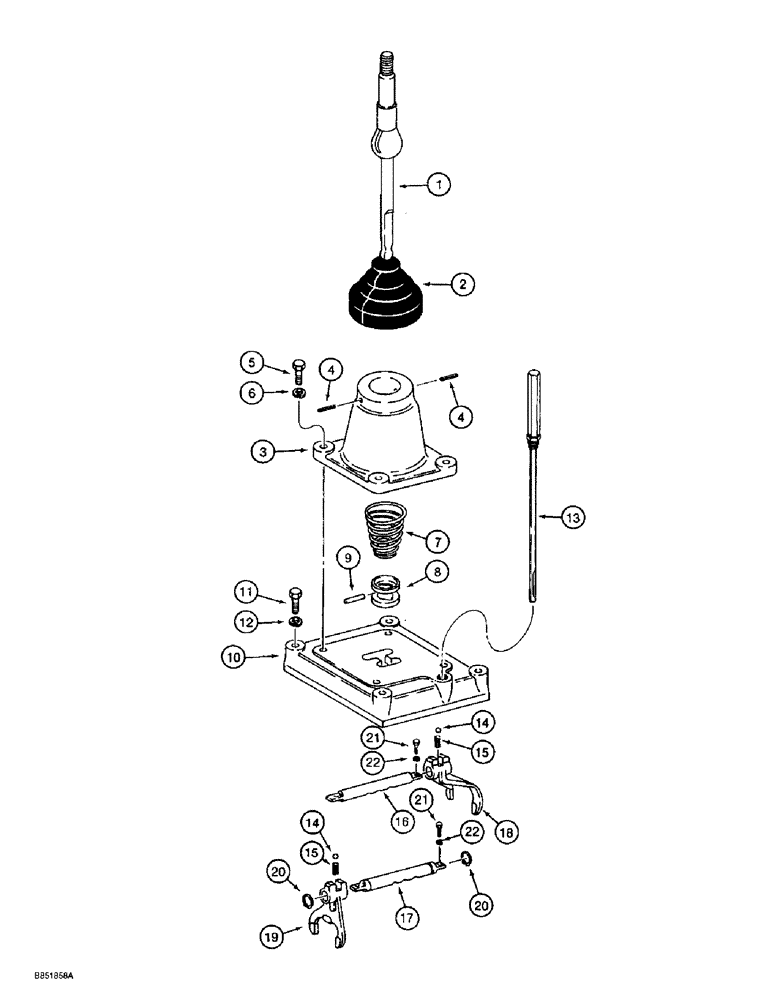

Запчасти Case 860 (6-36) - TRANSMISSION ASSEMBLY - 101703A1 - SHIFT LEVER AND LINKAGE (06) - POWER TRAIN

101703A1

CASE

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 22 this figure, 1 - 22 figure 6-38, 1 - 12 figure 6-40, and 1 - 38 figure 6-42

1шт.

1

105528A1

LEVER

- transmission shift, lower, see figure 6-34, items 13 and 14 for upper transmission shift lever and knob

1шт.

2

N13383

BOOT

- transmission shift lever

1шт.

3

105527A1

COVER

- transmission shift linkage, upper

1шт.

4

N13370

PIN

- roll, cover

2шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

4шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

N13372

SPRING

- transmission shift lever

1шт.

8

N13373

SEAT

- spring

1шт.

9

N13374

PIN

- dowel, transmission shift lever

1шт.

10

N13375

COVER

- transmission shift linkage, lower

1шт.

11

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

- hex, 10 - 1.5 x 55 mm

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

H672648

DIPSTICK

- transmission oil level

1шт.

14

N13376

BALL

- selector fork

2шт.

15

N13377

SPRING

- ball

2шт.

16

N13380

SHAFT

- selector, upper

1шт.

17

N13381

SHAFT

- selector, lower

1шт.

18

N13382

SELECTOR

FORK - selector, upper

1шт.

19

N13379

FORK

- selector, lower

1шт.

20

N13378

RING, SNAP

RING - snap, selector shaft

2шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.
