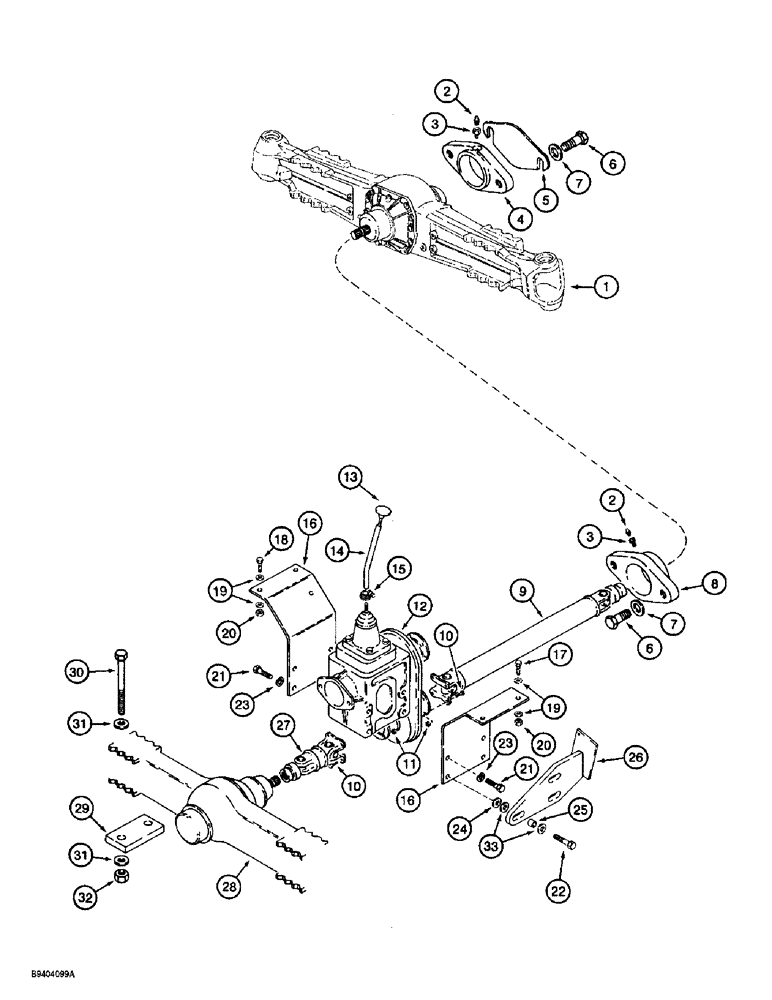

Запчасти Case 860 (6-34) - DRIVE LINE MOUNTING (06) - POWER TRAIN

1

H669895

AXLE

ASSEMBLY - front, front, parts list figures 6-54 - 6-66

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

3

D136218

SCREW

- straight, special, grease fitting

2шт.

4

H433408

TRUNNION

- front, axle

1шт.

5

H433359

SHIM,1.52mm Thk

Axle mounting, 0.5 mm (.02 inch) thick

1шт.

6

26026R1

BOLT,Hex, 1 1/4" - 7 x 3", Gr 8

- hex, 1-14 NC x 3 inch, grade 8

4шт.

7

D43536

WASHER

- flat, special, 1-1/4 inch, hardened

4шт.

8

H433407

TRUNNION

- rear, axle

1шт.

9

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, front, see figure 6-46 or 6-48 for correct drive shaft and assembly

1шт.

10

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch

8шт.

11

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

8шт.

12

101703A1

CASE

TRANSMISSION ASSEMBLY - complete, parts list figures 6-36 - 6-44

1шт.

13

T34930

KNOB

- lever

1шт.

14

H434433

LEVER

- transmission shift, upper, see figure 6-36, item 1, for lower transmission shift lever

1шт.

15

D71880

CLAMP,22.23mm

- adjustable, includes hardware

1шт.

16

H433891

BRACKET

- transmission mounting, right-hand and left-hand side

2шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

20

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

21

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

5шт.

22

814-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 8.8

3шт.

23

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

5шт.

24

495-31056

WASHER,14.27mm ID x 47.63mm OD x 2.77mm Thk

- flat, 9/16 x 1-7/8 x 7/64 inch, hardened

3шт.

25

H439067

BUSHING

SPACER - caliper mounting bracket

3шт.

26

H674889

ANCHOR

BRACKET - mounting, parking brake caliper, right-hand side

1шт.

27

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, rear, see Figure 6-50 or 6-52 for correct assembly and components

1шт.

28

H672080

AXLE

ASSEMBLY - rear

1шт.

29

H432690

BAR

SUPPORT - rear axle

2шт.

30

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

- hex, 1 NC x 10 inch

4шт.

31

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch, hardened

8шт.

32

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

4шт.

33

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

- flat, hardened, special

6шт.
