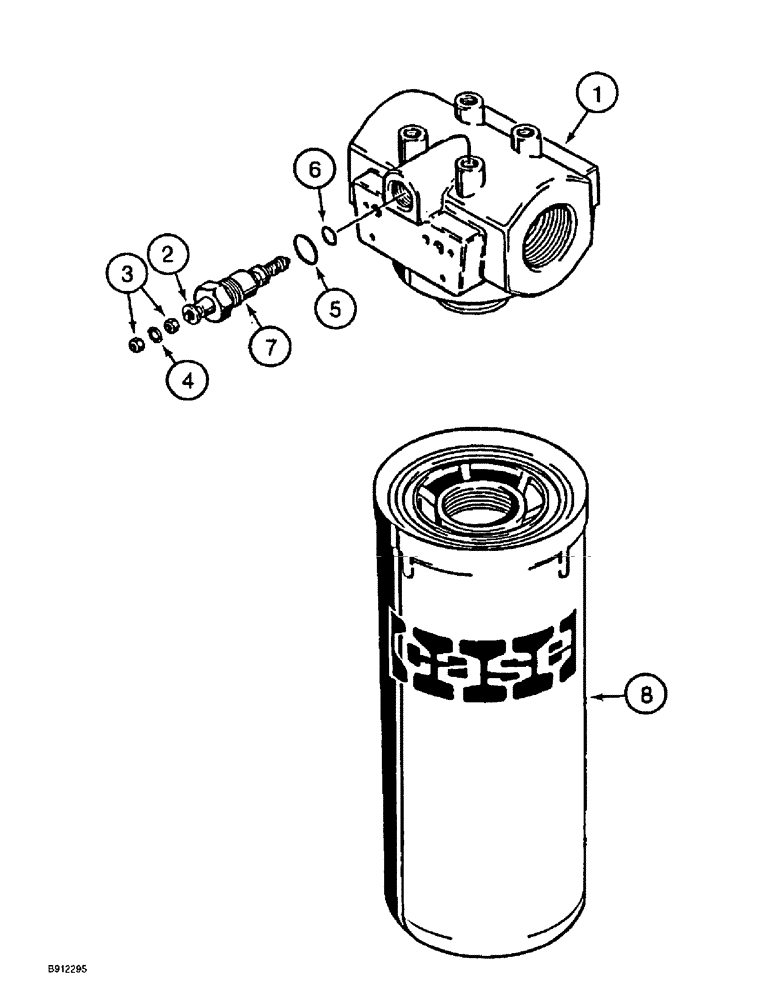

Запчасти Case 860 (6-32) - HYDRAULIC OIL CHARGE FILTER ASSEMBLY - R52031 (06) - POWER TRAIN

R52031

FILTER

ASSEMBLY - hydraulic oil charge, see figure 6-06 for mounting, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N7929

INDICATOR

ASSEMBLY - restriction, electric, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - identification, blue color

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Small

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, order N7929 assembly

1шт.

8

N14232

FILTER

ELEMENT - filter

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
