Запчасти Case 860 (6-28) - GROUND DRIVE MOTOR ASSEMBLY - H674155 (06) - POWER TRAIN

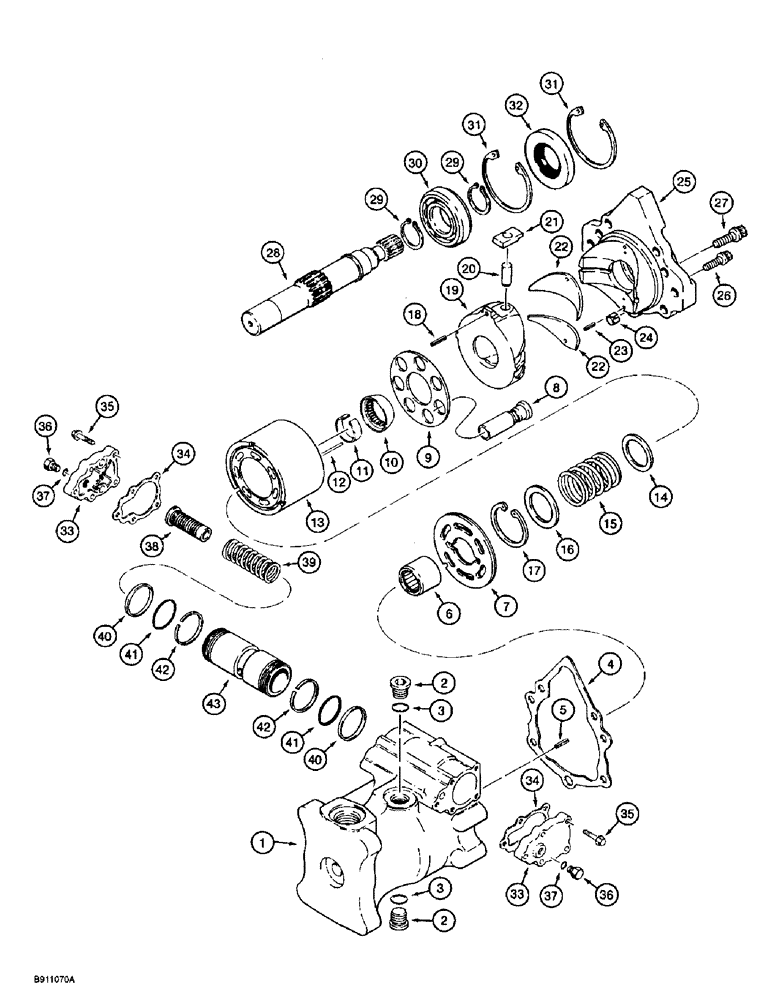

Схема запчастей Case 860 - (6-28) - GROUND DRIVE MOTOR ASSEMBLY - H674155 (06) - POWER TRAIN
13
3
32
14
36
28
2
24
11
3
43
20
4
39
26
22
37
18
40
15
36
34
35
30
31
42
25
40
12
23
16
29
33
38
42
2
41
6
7
21
10
8
41
5
34
37
9
19
17
27
1
29
31
35
33
22

Артикул

Название

Примечание

Количество

H674155

HYDRAULIC MOTOR

MOTOR ASSEMBLY - ground drive, see figure 6-06 for mounting

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

H436704

GASKET,0.79mm Thk

- cover

1шт.

5

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

6

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

7

N13197

PLATE

- wear

1шт.

115952A1

SET

BLOCK ASSEMBLY - cylinder, Includes: Ref. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

10

115942A1

GUIDE

- retainer

1шт.

11

115943A1

SNAP RING

RING - retaining, guide

1шт.

12

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

13

115944A1

CYLINDER BLOCK

BLOCK - cylinder

1шт.

14

115946A1

WASHER

WASHER - spring, block end

1шт.

15

115948A1

SPRING

- cylinder block

1шт.

16

115950A1

WASHER

WASHER - spring, cover end

1шт.

17

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.

18

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

19

N13988

COVER

PLATE - swash, block

1шт.

20

N13254

PIN

- swashplate

1шт.

21

N13224

SLEEVE

RETAINER - pin

1шт.

22

100418A1

JOURNAL

BEARING - journal

2шт.

23

38-1806

LOCK PIN,1/8" x 3/8", Slotted

Pin, 1/8" x 3/8", Slotted

2шт.

24

N13994

SPACER

PIN - roll, special, cover locating

1шт.

25

N13991

COVER

- rear

1шт.

26

N14479

12 PT SCREW

BOLT - 12 point, 3/8 NC x 1-1/8 inch

1шт.

27

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

BOLT - 12 point flange, 7/16 NC x 1 inch, grade 8

6шт.

28

124173A1

SHAFT

- motor, replaces 4033/23538

1шт.

29

100-11137

SNAP RING,#137, Ext

Ring, Snap, , bearing #137, Ext

2шт.

30

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, shaft

1шт.

31

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Seal 2.812", Int, #281

2шт.

32

N14103

SEAL

- shaft

1шт.

33

H436053

COVER

- servo, non-adjusting end

2шт.

34

N14063

GASKET

- servo cover

2шт.

35

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

SCREW - hex, special, 1/4 NC x 1-1/4 inch, grade 8

10шт.

36

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 37 and 38 Hex Hd, 9/16"-18 ORB

2шт.

38

100420A1

STOP

- spring, with 12 (twelve) identification grooves

1шт.

39

100419A1

SPRING

- servo

1шт.

H673773

KIT

- ring, Includes: Ref. 40 and 41

1шт.

40

N14668

RING, PISTON

RING - piston, servo

2шт.

41

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

42

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

RING - bearing

2шт.

43

100421A1

PISTON

- servo

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
