Запчасти Case 860 (6-26) - PUMP DRIVE ASSEMBLY - H674758 (06) - POWER TRAIN

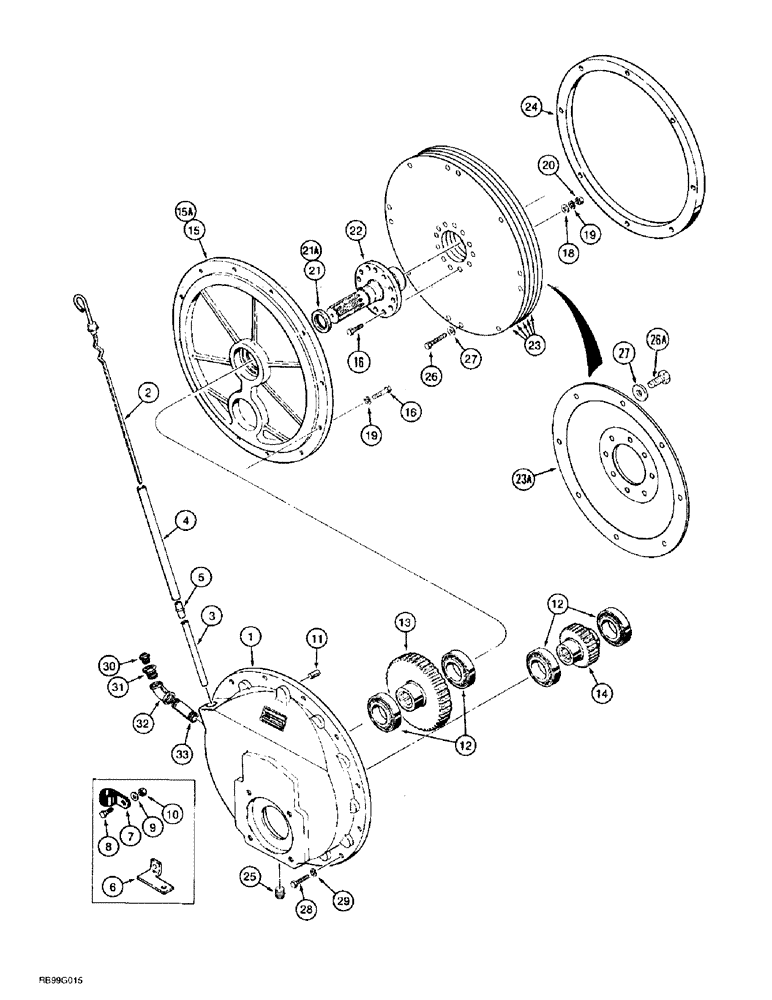

Схема запчастей Case 860 - (6-26) - PUMP DRIVE ASSEMBLY - H674758 (06) - POWER TRAIN
18
14
32
27
16
2
5
19
8
7
15
28
24
12
25
10
13
23a
21
29
3
26a
19
11
6
16
15a
21a
23
26
33
9
22
31
4
1
27
20
30
12

Артикул

Название

Примечание

Количество

H674758

GEARBOX ASSY

DRIVE ASSEMBLY - pump, not available as an assembly, order component parts, Includes: Ref. 1 - 25

1шт.

1

102996A1

HOUSING

- pump drive

1шт.

2

107718A1

DIPSTICK

- oil level

1шт.

3

109118A1

TUBE

- dipstick

1шт.

4

107716A1

TUBE,9.52 mm ID, 300 mm Length

- dipstick, extension

1шт.

5

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube, tube

1шт.

6

107719A1

BRACKET

- dipstick extension, use existing hardware to install bracket to item 15 or 15A cover

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

10

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

11

37-1616

DOWEL,3/8" x 1"

PIN - dowel, 3/8 x 1 inch, hardened

1шт.

12

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING - ball, input and output gears

4шт.

13

100452A1

GEAR

- input, 42 teeth

1шт.

14

102997A1

GEAR

- pinion, output, 31 teeth

1шт.

15

100449A1

COVER

- pump drive housing, prior to pump drive Serial Number 0073, uses item 21, 100458A1

1шт.

15a

128128A1

COVER

- pump drive housing, pump drive Serial Number 0073 and after, uses item 21A, 1957347C1

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

19шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

19

492-11038

LOCK WASHER,3/8"

19шт.

20

425-106

NUT,3/8"-16, Cl 5

8шт.

21

100458A1

SEAL

- pump drive shaft, 2-1/4 inch diameter, prior to pump drive Serial Number 0073, used with item 15, 100449A1 cover

1шт.

21a

1957347C1

OIL SEAL

- pump drive shaft, 2 inch diameter, Serial Number 0073 and after, used with item 15A, 128128A1 cover

1шт.

22

100456A1

SHAFT

- splined, pump drive

1шт.

23

100450A1

LARGE PLATE

PLATE - drive, set of five, no longer available, order 180822A1 plate and (8) 614-10020 bolts, Serial Range: -JAF0118104

1шт.

23a

180822A1

LARGE PLATE

PLATE - drive, Start Serial: JAF0118104

1шт.

24

100457A1

SPACER

- drive plate, Serial Range: -JAF0118104

1шт.

25

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT, replaces 221-23 plug

1шт.

26

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, Serial Range: -JAF0118104

8шт.

26a

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

JAF0118104 to

8шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

12шт.

29

892-11010

LOCK WASHER,M10

12шт.

30

A50096

VALVE

- relief

1шт.

31

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe, 1/2 male x 1/8 inch female

1шт.

32

221-1368

ELBOW,45 Degree, 1/2" NPT

- pipe, 45 degree, 1/2 inch

1шт.

33

221-194

PIPE,Nipple, 1/2" NPT x 4"

NIPPLE - straight, 1/2 PT x 4 inch

1шт.

Выбрано товаров: 37
