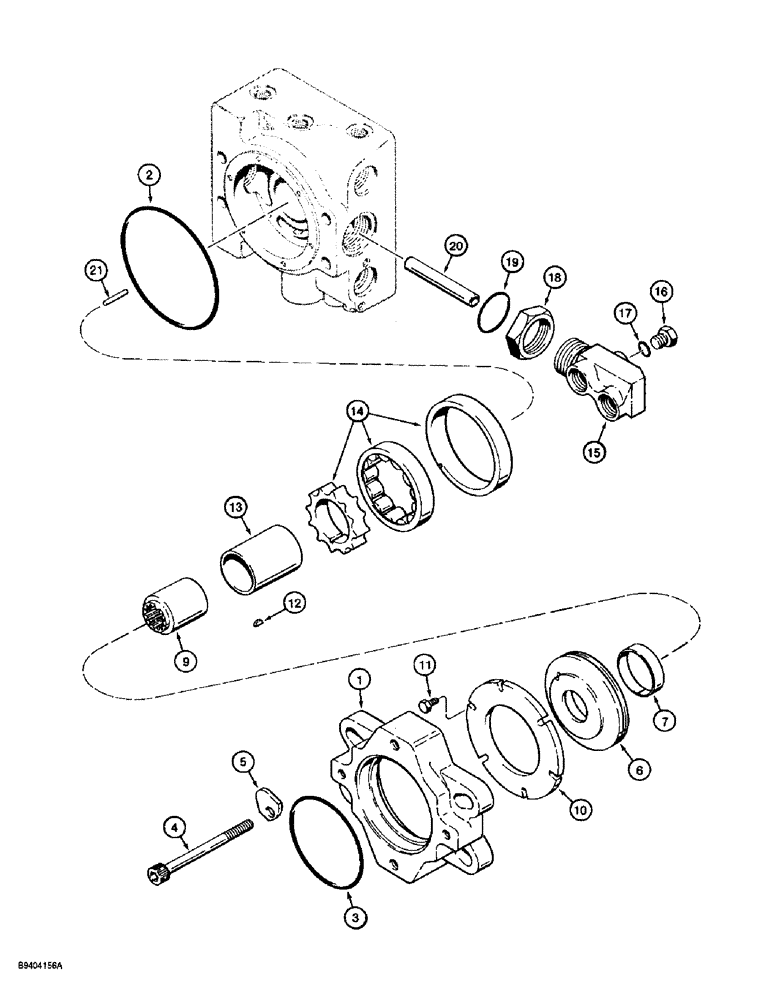

Запчасти Case 860 (6-25A) - ATTACHMENT DRIVE PUMP ASSEMBLY (FRONT SECTION) - H674753 - ADAPTER, CHARGE PUMP & MANIFOLD ASN 93-10 (06) - POWER TRAIN

H674753

PUMP

ASSEMBLY - attachment drive (front section), no longer available, order 182514A1 when replacing complete pump, Includes: Ref. 1 - 27 figure 6-18, 1 - 33 figure 6-20, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 this figure

1шт.

182514A1

PUMP

ASSEMBLY - attachment drive (front section), Includes: Ref. 1 - 27 figure 6-18, 1 - 33 figure 6-20, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 this figure

1шт.

105682A1

FLANGE

ASSEMBLY - pump mounting

1шт.

1

105687A1

ADAPTER

FLANGE - adapter, pump mounting, Includes: Ref. 2 - 9

1шт.

2

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

Part of Repair Kit P/N 105705A1

1шт.

3

238-5044

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

-044, 70 Duro, 3.739" ID x .070" Thk

1шт.

Part of Repair Kit P/N 105705A1

1шт.

4

105689A1

SCREW

- hex socket, special, flange mounting

4шт.

5

105688A1

WASHER

- flat, special, flange mounting bolt

4шт.

128595A1

COVER

ASSEMBLY - charge pump, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - charge pump

1шт.

7

105668A1

BUSHING

1шт.

8

238-5044

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

-044, 70 Duro, 3.739" ID x .070" Thk, Included with 128595A1 but not used in this application, not shown

1шт.

Part of Repair Kit P/N 105705A1

1шт.

9

105683A1

COUPLING

- drive shaft

1шт.

10

105679A1

LARGE PLATE

PLATE - retaining, cover

1шт.

11

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- M6 x 16; 10.9

6шт.

12

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff, 1/8 x 3/8 inch

1шт.

13

128596A1

SHAFT

- drive, charge pump

1шт.

14

128594A1

PUMP

- charge

1шт.

105697A1

KIT

- filter manifold, Includes: Ref. 15 - 20

1шт.

15

105698A1

TUBE ASSY.

MANIFOLD - filter

1шт.

16

76349

PLUG,9/16" - 18 ORB

1шт.

18

105699A1

NUT

- filter manifold

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Manifold

1шт.

Part of Repair Kit P/N 105705A1

1шт.

20

105700A1

TUBE

- filter manifold

1шт.

21

105677A1

PIN

- charge pump plate

1шт.

105705A1

SEAL KIT

- repair, seal replacement, Includes: Ref. 4, 15, 19, 20, 22, 23 figure 6-18, 2, 3, 6, 7, 9, 10, 14, 23, 29, 30 figure 6-20, 22, 28, 29 figure 6-22, 2, 3, 8, 21 figure 6-24, 2, 3, 8, 19 this figure

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1. 90 Duro, .468" ID x .078" Thk

1шт.
