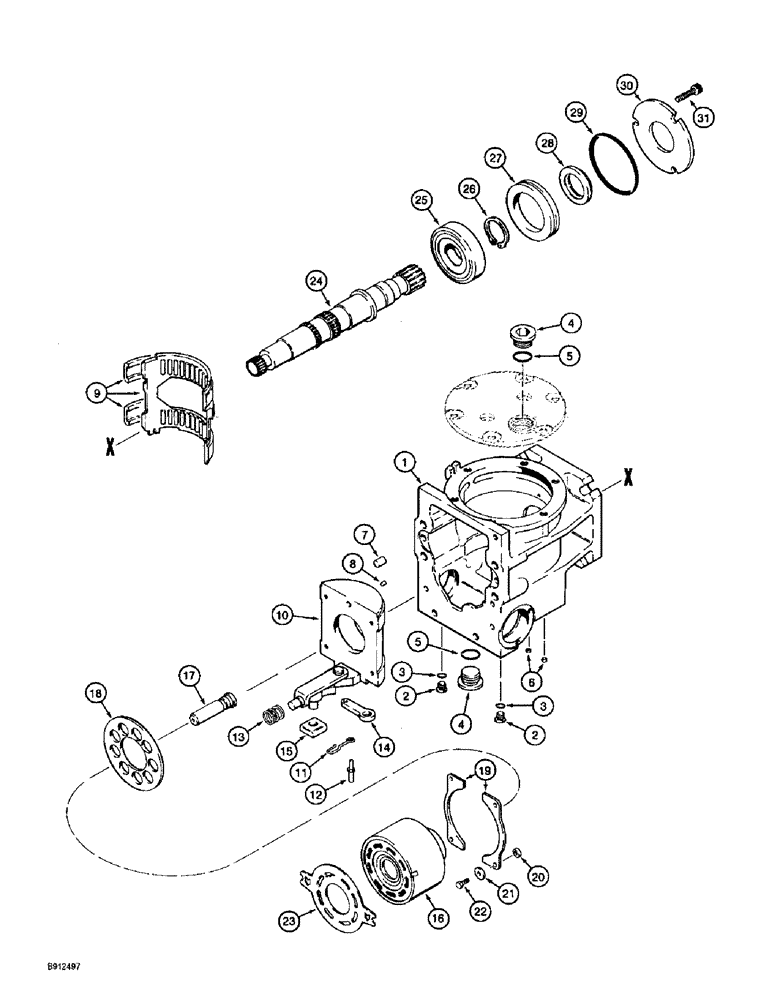

Запчасти Case 860 (6-22) - ATTACHMENT DRIVE PUMP ASSEMBLY (FRONT SECTION) - H674753 - CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

H674753

PUMP

ASSEMBLY - attachment drive (front section), no longer available, order 182514A1 when replacing complete pump, Includes: Ref. 1 - 27 figure 6-18, 1 - 33 figure 6-20, 1 - 31 this figure, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

182514A1

PUMP

ASSEMBLY - attachment drive (front section), Includes: Ref. 1 - 27 figure 6-18, 1 - 33 figure 6-20, 1 - 31 this figure, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - front drive pump

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 3 Hex Soc, 7/16"-20 ORB

2шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 5 Hex Soc, 1 1/16"-12 ORB

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

105638A1

BAFFLE

SCREEN - control filter

3шт.

7

F23124

AXLE PIN

PIN - locating, Serial Range: housing-cover

2шт.

8

105636A1

PIN

-, Serial Range: bearing-housing

2шт.

9

105637A1

BEARING

- swash plate

1шт.

10

105640A1

LARGE PLATE

PLATE - swash

1шт.

11

105641A1

LINK

- cage locator

1шт.

12

105642A1

PIN

- locator link

1шт.

13

105643A1

SPRING

- swash plate arm

1шт.

14

105696A1

LINK

- feedback

1шт.

15

105656A1

BLOCK

- slider

1шт.

105639A1

CYLINDER

KIT - repair, cylinder block, Includes: Ref. 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - cylinder

9шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - slipper

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - guide

2шт.

20

NSS

NOT SOLD SEPARAT

SPACER - bearing

4шт.

21

NSS

NOT SOLD SEPARAT

WASHER - bearing

4шт.

22

NSS

NOT SOLD SEPARAT

BOLT - bearing

4шт.

Part of Repair Kit P/N 105705A1

1шт.

23

142030A1

LARGE PLATE

PLATE - pump

1шт.

24

105690A1

SHAFT

- pump drive

1шт.

25

105658A1

BEARING

- roller, splined shaft

1шт.

26

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

27

105659A1

SUPPORT

CARRIER - shaft seal

1шт.

28

105660A1

SEAL

- oil, splined shaft

1шт.

Part of Repair Kit P/N 105705A1

1шт.

29

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

Part of Repair Kit P/N 105705A1

1шт.

30

105661A1

LARGE PLATE

PLATE - seal retainer

1шт.

31

105664A1

SCREW

- plate retainer

3шт.

105705A1

SEAL KIT

- repair, seal replacement, Includes: Ref. 4, 15, 19, 20, 22, 23 figure 6-18, 2, 3, 6, 7, 9, 10, 14, 23, 29, 30 figure 6-20, 22, 28, 29 this figure, 2, 3, 8, 21 figure 6-24, 2, 3, 8, 19 figure 6-25A

1шт.
