Запчасти Case 860 (6-20) - ATTACHMENT DRIVE PUMP ASSEMBLY (FRONT SECTION) - H674753 - NEUTRAL START AND SERVO (06) - POWER TRAIN

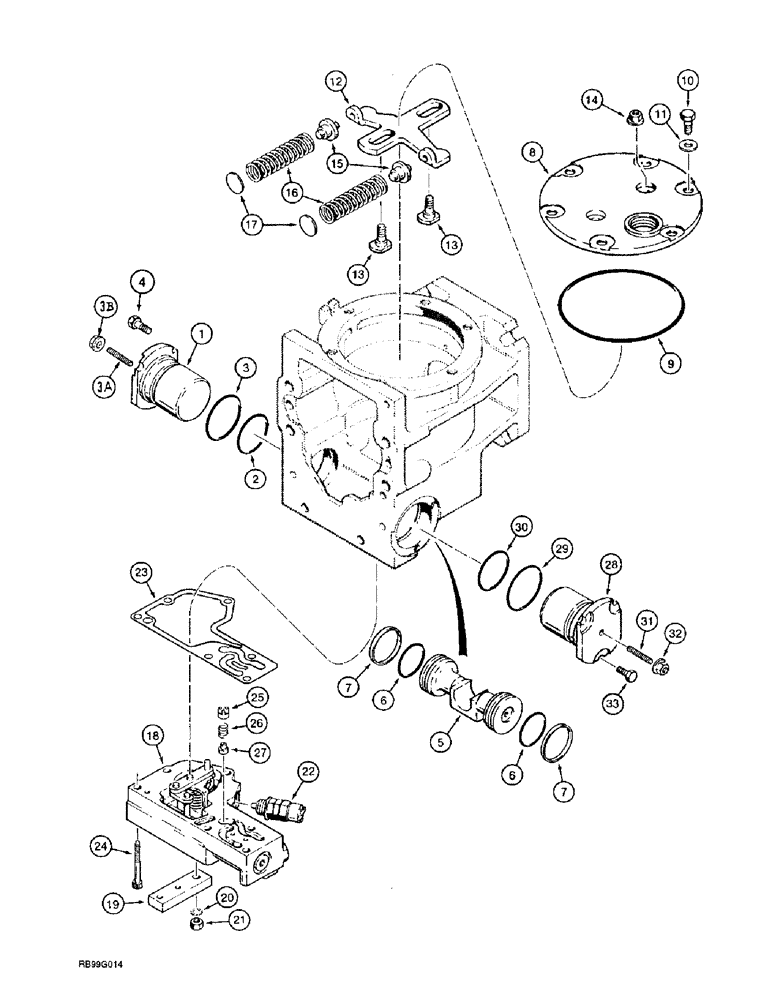

Схема запчастей Case 860 - (6-20) - ATTACHMENT DRIVE PUMP ASSEMBLY (FRONT SECTION) - H674753 - NEUTRAL START AND SERVO (06) - POWER TRAIN
6
24
27
22
4
18
32
13
20
3b
13
9
8
3a
31
25
26
14
7
33
16
23
15
7
1
5
12
29
28
30
2
3
19
17
6
10
21
11

Артикул

Название

Примечание

Количество

H674753

PUMP

ASSEMBLY - attachment drive (front section), no longer available, order 182514A1 when replacing complete pump, Includes: Ref. 1 - 27 figure 6-18, 1 - 33 this figure, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

182514A1

PUMP

ASSEMBLY - attachment drive (front section), Includes: Ref. 1 - 27 figure 6-18, 1 - 33 this figure, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

107114A1

KIT

- servo sleeve, with adjusting screw, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE - servo

1шт.

2

238-5031

O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro

-031, 70 Duro, 1.739" ID x .070" Thk

1шт.

Part of Repair Kit P/N 105705A1

1шт.

3

238-5032

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

- 1-7/8 ID x 2

1шт.

Part of Repair Kit P/N 105705A1

1шт.

3a

107835A1

ADJUSTMENT SCREW

- adjusting, special, servo sleeve

1шт.

3b

105649A1

NUT

- hex, special

1шт.

4

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

M6 x 16; 10.9

3шт.

105655A1

KIT

- servo piston, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - servo

1шт.

6

105653A1

O-RING

- special, servo piston

2шт.

Part of Repair Kit P/N 105705A1

1шт.

7

105654A1

RING

- servo piston

2шт.

Part of Repair Kit P/N 105705A1

1шт.

8

105644A1

COVER

- side, pump housing

1шт.

9

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

Part of Repair Kit P/N 105705A1

1шт.

10

105650A1

SCREW

- special, side cover

6шт.

Part of Repair Kit P/N 105705A1

1шт.

11

124172A1

WASHER

- flat, special

6шт.

12

105645A1

LEVER

LEVELER - guide

1шт.

13

105648A1

POST

- guide

2шт.

14

105649A1

NUT

- hex, guide post

2шт.

Part of Repair Kit P/N 105705A1

1шт.

15

105646A1

SEAT

- spring

2шт.

16

105652A1

SPRING

- leveler

2шт.

17

105647A1

SHIM

- leveler spring

2шт.

105691A2

CONTROL

ASSEMBLY - neutral start, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

CONTROL - neutral start

1шт.

19

NSS

NOT SOLD SEPARAT

LEVER - control, neutral start

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - external tooth lock, 5/16 inch

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - special, neutral start lever

1шт.

22

105695A3

SWITCH

- neutral start

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - neutral start control to pump housing

1шт.

Part of Repair Kit P/N 105705A1

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - special, neutral start control

6шт.

105704A1

KIT

- control orifice, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - valve spring

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

27

NSS

NOT SOLD SEPARAT

VALVE - check, control orifice

1шт.

107114A1

KIT

- servo sleeve, with adjusting screw, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE - servo

1шт.

29

238-5032

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

- 1-7/8 ID x 2

1шт.

Part of Repair Kit P/N 105705A1

1шт.

30

238-5031

O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro

-031, 70 Duro, 1.739" ID x .070" Thk

1шт.

Part of Repair Kit P/N 105705A1

1шт.

31

107835A1

ADJUSTMENT SCREW

- adjusting, special, servo sleeve

1шт.

32

105649A1

NUT

- hex, special

1шт.

33

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

M6 x 16; 10.9

3шт.

105705A1

SEAL KIT

- repair, seal replacement, Includes: Ref. 4, 15, 19, 20, 22, 23 figure 6-18, 2, 3, 6, 7, 9, 10, 14, 23, 29, 30 figure 6-20, 22, 28, 29 this figure, 2, 3, 8, 21 figure 6-24, 2, 3, 8, 19 figure 6-25A

1шт.

Выбрано товаров: 53
