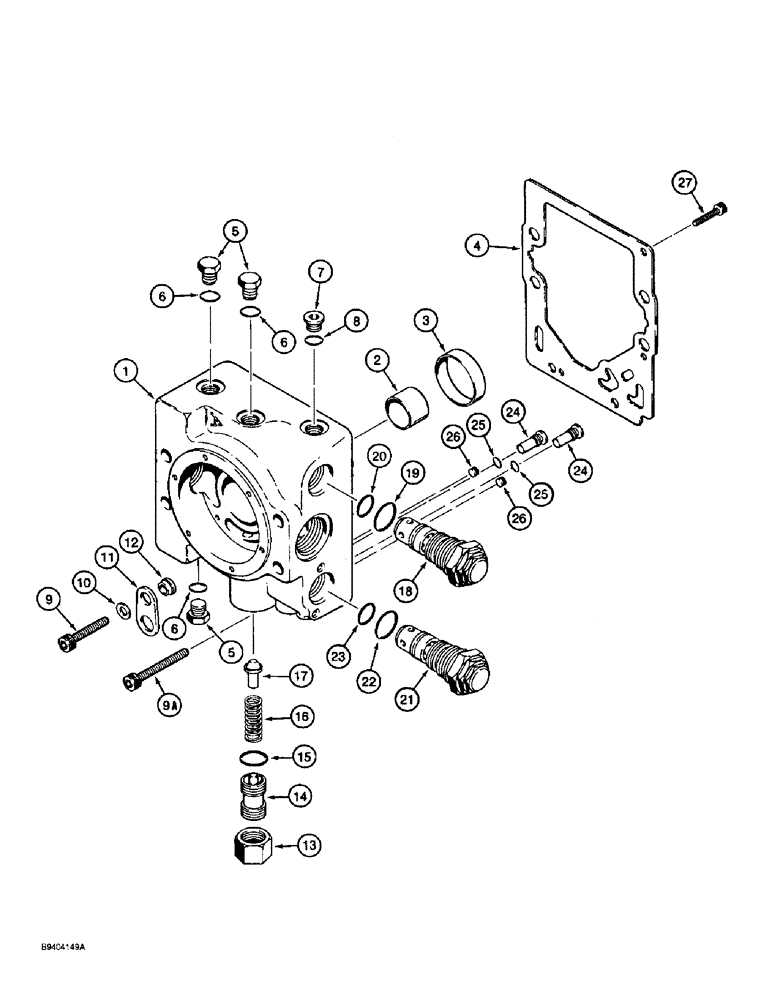

Запчасти Case 860 (6-18) - ATTACHMENT DRIVE PUMP ASSEMBLY (FRONT SECTION) - H674753 - END COVER AND VALVES (06) - POWER TRAIN

H674753

PUMP

ASSEMBLY - attachment drive (front section), no longer available, order 182514A1 when replacing complete pump, Includes: Ref. 1 - 27 this figure, 1 - 33 figure 6-20, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

182514A1

PUMP

ASSEMBLY - attachment drive (front section), Includes: Ref. 1 - 27 this figure, 1 - 33 figure 6-20, 1 - 31 figure 6-22, 1 - 22 figure 6-24, and 1 - 21 figure 6-25A

1шт.

105666A1

CAP

ASSEMBLY - pump end, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - pump end

1шт.

2

105667A1

BEARING

- journal

1шт.

3

105668A1

BUSHING

- end cover, front

1шт.

4

105669A1

GASKET

- end cover to pump housing

1шт.

Part of Repair Kit P/N 105705A1

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

3шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 8 Hex Soc, 9/16"-18 ORB

1шт.

9

105673A1

SCREW

- special, end cover at lift brake

1шт.

9a

105672A1

SCREW

- special, end cover

1шт.

10

F23187

WASHER

- flat, special

1шт.

11

105671A1

BRACKET

- lift

1шт.

12

105670A1

SPACER

- lift bracket

1шт.

105657A1

KIT

VALVE ASSEMBLY - charge relief, adjustable, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

NUT - charge relief valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - charge relief valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Valve plug

1шт.

Part of Repair Kit P/N 105705A1

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - charge relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET - charge relief valve

1шт.

116752A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, 6090 PSI (420 bar), "A" port, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE - relief, 6090 PSI (420 bar), "A" port

1шт.

19

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

Part of Repair Kit P/N 105705A1

1шт.

20

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

Part of Repair Kit P/N 105705A1

1шт.

116751A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, 330 PSI (230 bar), "B" port, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - relief, 3300 PSI (230 bar), "B" port

1шт.

22

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

Part of Repair Kit P/N 105705A1

1шт.

23

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

Part of Repair Kit P/N 105705A1

1шт.

24

105702A1

VALVE

- check

2шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

105703A1

PLUG

- orifice, special

2шт.

27

105674A1

SCREW

- special, end cover

1шт.

105705A1

SEAL KIT

- repair, seal replacement, Includes: Ref. 4, 15, 19, 20, 22, 23 this figure, 2, 3, 6, 7, 9, 10, 14, 23, 29, 30 figure 6-20, 22, 28, 29 figure 6-22, 2, 3, 8, 21 figure 6-24, 2, 3, 8, 19 figure 6-25A

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
