Запчасти Case 860 (6-16) - GROUND DRIVE PUMP ASSEMBLY (REAR SECTION) - H674754 - CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

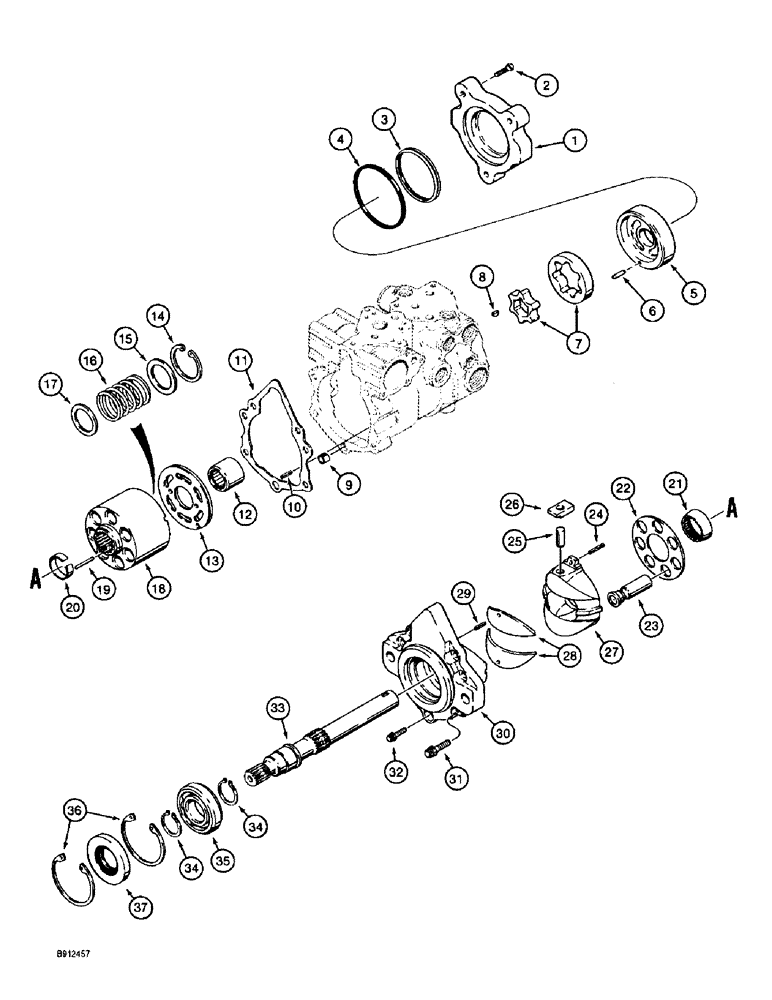

Схема запчастей Case 860 - (6-16) - GROUND DRIVE PUMP ASSEMBLY (REAR SECTION) - H674754 - CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN
25
19
35
14
3
29
12
36
18
32
22
2
10
26
8
20
31
17
33
21
16
23
6
7
28
37
1
5
11
30
27
24
4
9
15
34
34
13

Артикул

Название

Примечание

Количество

H674754

PUMP

ASSEMBLY - ground drive (rear section), also includes parts listed on figures 6-12 and 6-14, Includes: Ref. 1 - 37

1шт.

1

105721A1

COVER

- charge pump

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

3

105716A1

OIL SEAL

RING - temper load

1шт.

4

105715A1

O-RING

SEAL - gerotor cover

1шт.

5

105717A1

COVER

- gerotor

1шт.

6

181680A1

PIN,3/16" OD x 13/16" L

- locating, 3/16 x 13/16 inch, gerator cover

1шт.

7

105719A1

ROTOR ASSY.

GEAR - set, gerotor

1шт.

8

126-169

WOODRUFF KEY,#212, 3/32" x3/8"

#212, 3/32" x 3/8"

1шт.

9

N13994

SPACER

PIN - roll, special, cover locating

1шт.

10

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

11

H436704

GASKET,0.79mm Thk

- cover, pump housing

1шт.

12

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

13

N14468

PLATE

- valve, inner, cylinder block

1шт.

115952A1

SET

BLOCK ASSEMBLY - cylinder, Includes: Ref. 14 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.

15

115950A1

WASHER

WASHER - spring

1шт.

16

115948A1

SPRING

- cylinder block

1шт.

17

115946A1

WASHER

WASHER - spring, outer

1шт.

18

115944A1

CYLINDER BLOCK

BLOCK - cylinder

1шт.

19

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

20

115943A1

SNAP RING

RING - retaining, guide

1шт.

21

115942A1

GUIDE

- retainer

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

24

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

25

N13254

PIN

- swash plate

1шт.

26

N13224

SLEEVE

RETAINER - pin

1шт.

27

N14469

PLATE

- swash, block

1шт.

28

N14472

BEARING

JOURNAL - bearing

2шт.

29

38-1806

LOCK PIN,1/8" x 3/8", Slotted

Pin, 1/8" x 3/8", Slotted

2шт.

30

H436703

COVER

- front

1шт.

31

223677A1

SCREW,Torx, 7/16"

- torx head, special, 7/16 inch

6шт.

32

223680A1

SPECIAL BOLT,Torx, 3/8"

SCREW - torx head, special, 3/8 inch, special

1шт.

33

105718A1

SHAFT

- rear pump

1шт.

34

101-11137

SNAP RING,#137, 1.291", Ext

RING - snap, shaft cover, bearing retaining

2шт.

35

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, front cover

1шт.

36

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Front cover, brg 2.812", Int, #281

2шт.

37

N14103

SEAL

- shaft

1шт.

Выбрано товаров: 39
