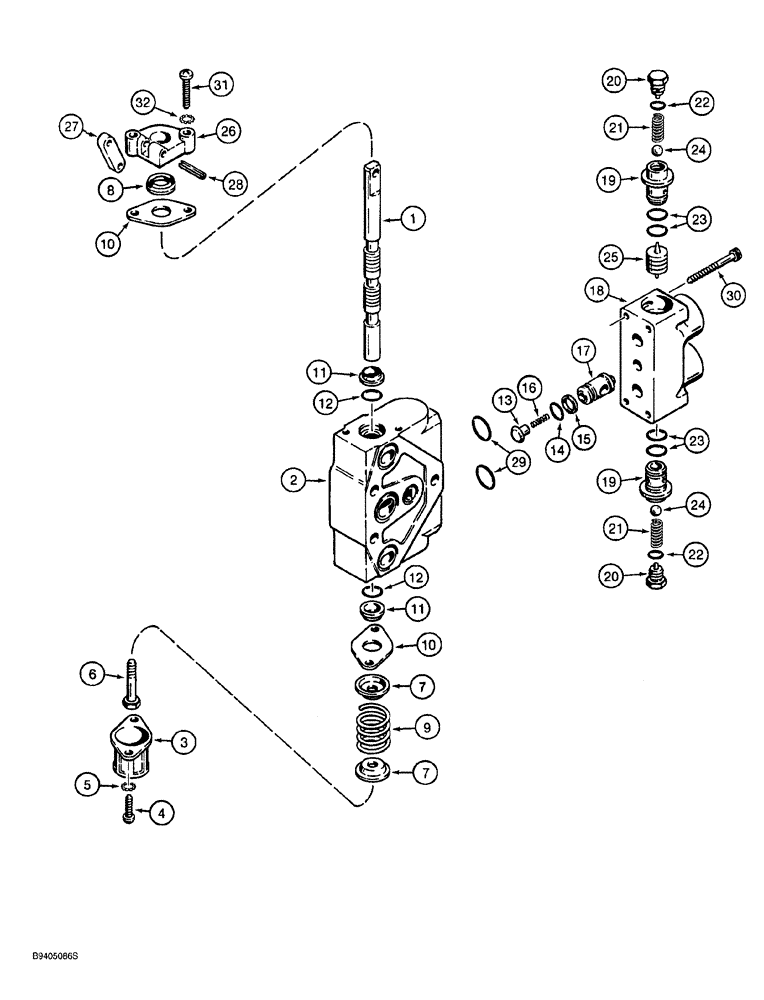

Запчасти Case 760 (08-058) - BACKHOE CONTROL VALE ASSEMBLY - H672270, STABILIZER SECTION MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-54 - 8-64, Includes: Ref. 1 - 32

1шт.

N14035

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, stabilizer, Includes: Ref. 1 - 32

2шт.

1

NSS

NOT SOLD SEPARAT

SPOOL stabilizer section

1шт.

2

NSS

NOT SOLD SEPARAT

BODY stabilizer section

1шт.

H401182

CAP

ASSEMBLY, spool end, no longer available, order H438212 cap, two (2) 440-12512 screws, and two (2) 493-41026

1шт.

3

H438212

CAP

spool, replaces H401182 assembly

1шт.

4

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

5

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

6

H401190

SCREW

special, spool end

1шт.

7

H401208

SEAT PLATE

spring

2шт.

8

1329639C1

SPACER

bracket

1шт.

9

H401216

SPRING

spool

1шт.

10

N14042

SHIN

RETAINER seal

2шт.

11

N14043

WIPER SEAL

SEAL

2шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

N14044

KIT

load check, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE load check

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

N14047

GASKET

RING backup, load check

1шт.

16

H438206

SPRING

load check

1шт.

17

H438205

VALVE

POPPET load check

1шт.

N14048

VALVE

ASSEMBLY, double check, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY, double check

1шт.

N14049

VALVE

CARTRIDGE ASSEMBLY, double check, Includes: Ref. 19 - 24

2шт.

19

NSS

NOT SOLD SEPARAT

BODY, double check

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG, double check valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING, double check valve

1шт.

22

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16 inch wide, plug

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Double check valve body

2шт.

24

NSS

NOT SOLD SEPARAT

BALL double check valve

1шт.

25

N14050

PILOT VALVE

SHUTTLE double check

1шт.

N14121

BRACKET

ASSEMBLY, stabilizer, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET stabilizer

1шт.

27

NSS

NOT SOLD SEPARAT

LINK stabilizer bracket

1шт.

28

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

29

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

Double check valve to stabilizer valve section

2шт.

30

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

4шт.

31

276-24720

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/4"

self-tapping, hex head, 1/4 NC x 1-1/4 inch

2шт.

32

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.
