(08-056) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MAIN RELIEF VALVE ASSEMBLY MANUFACTURED BY KONTAK

Запчасти Case 760 (08-056) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MAIN RELIEF VALVE ASSEMBLY MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS

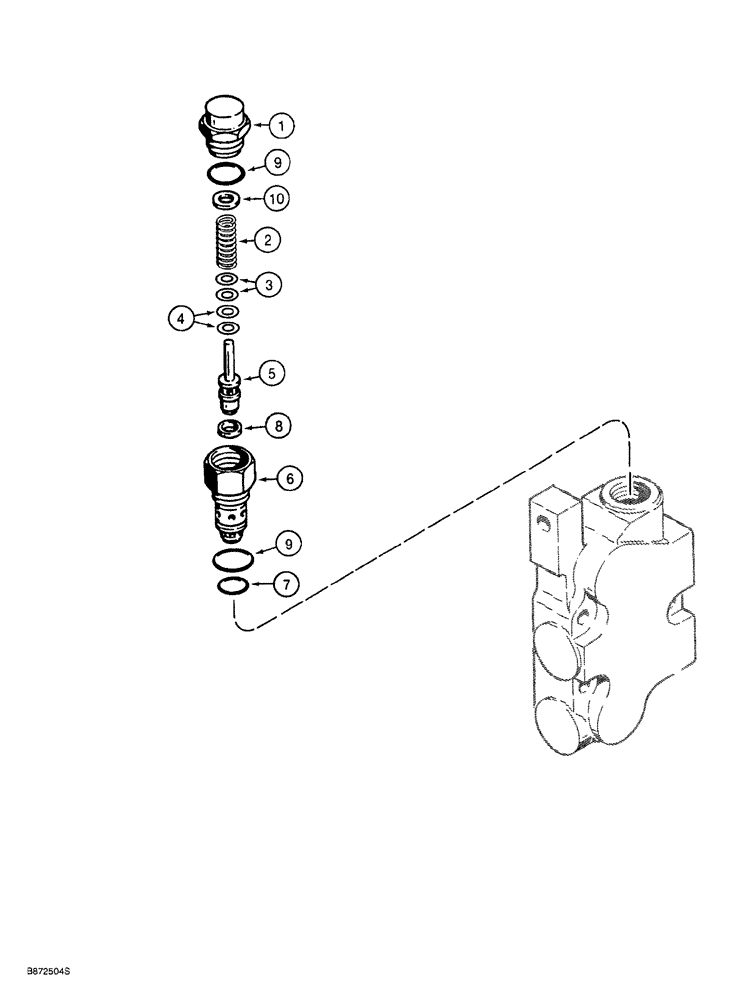

Схема запчастей Case 760 - (08-056) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MAIN RELIEF VALVE ASSEMBLY MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS
3
1
5
7
9
2
8
10
6
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, complete parts list Figs. 8-54 - 8-64, Includes: Ref. 1 - 10

1шт.

N14645

VALVE, PRESSURE RELI

EF ASSEMBLY, main, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

3

H398644

BLOCK

SHIM, 0.003 inch (0.08 mm) thick

1шт.

4

H398651

BLOCK

SHIM, 0.020 inch (0.51 mm) thick

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

BODY relief valve cartridge

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Relief valve

1шт.

8

N14120

SEAL

SPACER poppet

1шт.

9

H398685

O-RING

relief valve

2шт.

10

NSS

NOT SOLD SEPARAT

SPACER spring

1шт.
