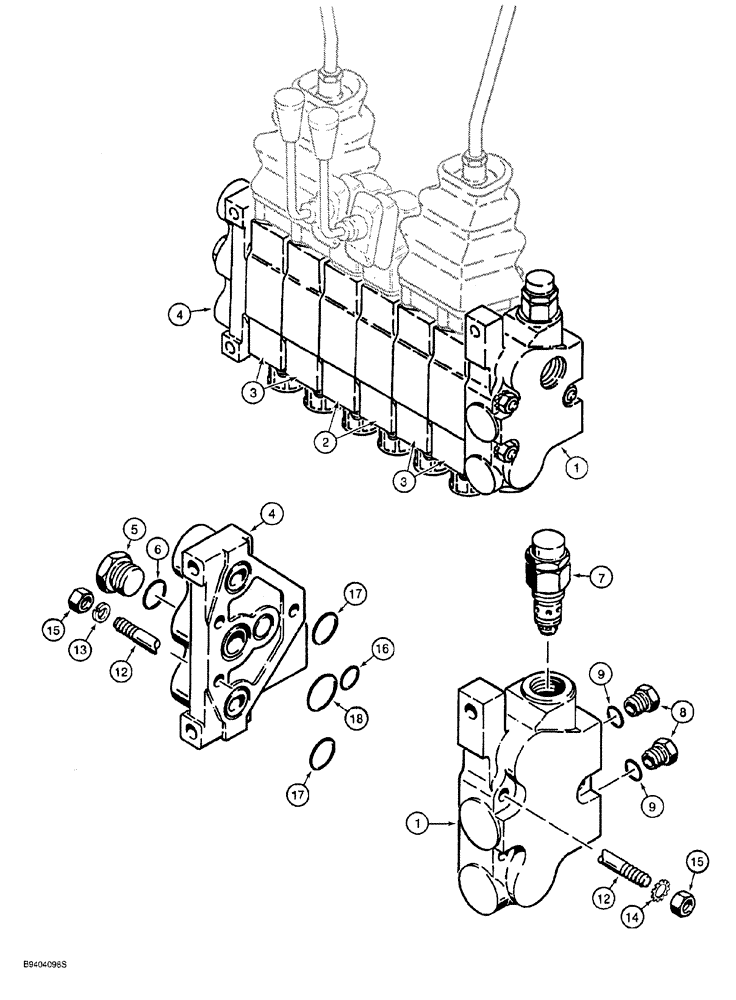

Запчасти Case 760 (08-054) - BACKHOE CONTROL VALVE ASSEMBLY - H672270, MANUFACTURED BY KONTAK (35) - HYDRAULIC SYSTEMS

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-54 - 8-64, also includes levers and boots, Includes: Ref. 1 - 18

1шт.

For control valve levers and boots see Fig. 8-62

1шт.

1

N14032

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, inlet

1шт.

2

N14035

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, stabilizer, parts list Fig. 8-58

2шт.

3

N14033

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, bucket, dipper, and swing parts list Fig. 8-60

4шт.

N14036

KNIFE SECTION

SECTION, KNIFE ASSEMBLY, outlet, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION outlet

1шт.

5

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

N14645

VALVE, PRESSURE RELI

EF ASSEMBLY, main, parts list Fig. 8-56

1шт.

8

76349

PLUG,9/16" - 18 ORB

Inlet section, Incl. Ref. 9

2шт.

10

N14045

VALVE

ASSEMBLY, circuit relief, 3200 psi, backhoe boom section "B" port and backhoe dipper, and swing sections "A" & "B" ports, parts list Fig. 8-64, not shown

5шт.

11

N14058

VALVE

ASSEMBLY, circuit relief, 1600 psi, backhoe boom section "A" port, parts list Fig. 8-64, not shown

1шт.

N14041

SET

KIT tie rod, Includes: Ref. 12 - 15

3шт.

12

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

15

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

N14040

SEAL KIT

KIT, intersection, Includes: Ref. 16 - 18

7шт.

16

NSS

NOT SOLD SEPARAT

O-RING small

1шт.

17

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

2шт.

18

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
