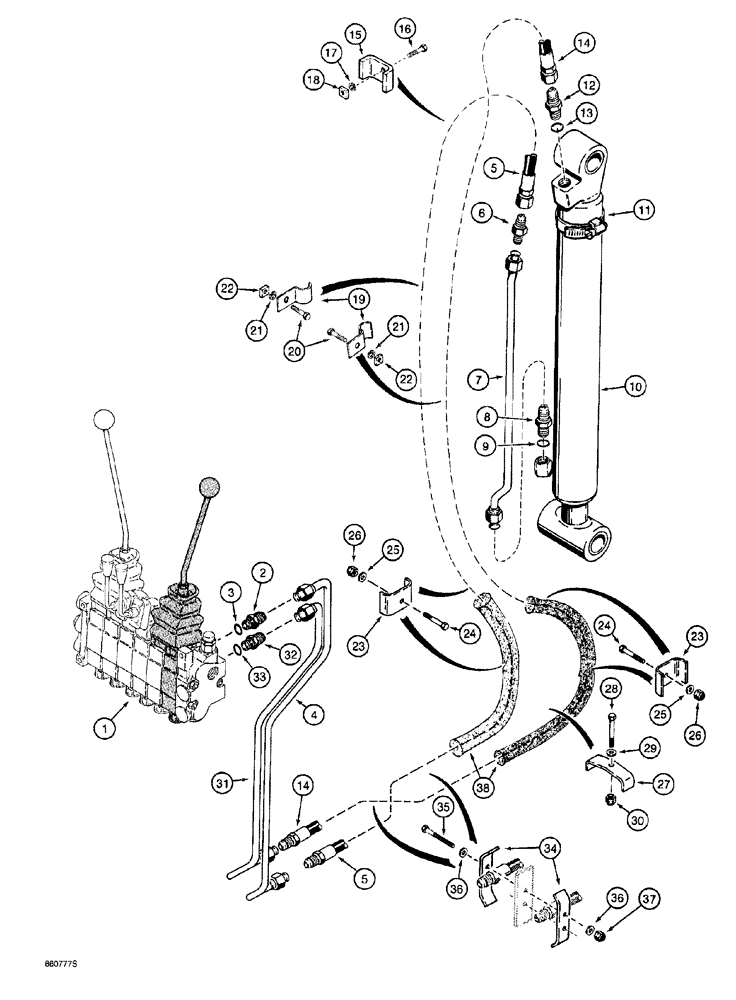

Запчасти Case 760 (08-052) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-54 -8-64 (Kontak) and Figs. 8-65A - 8-65K (Commercial Intertech)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672390

TUBE ASSY.,15.88 mm OD

control valve to bucket cylinder rod end hose

1шт.

5

H433857

HOSE ASSY.

111-3/8 inch (2830 mm) long, control valve tube to bucket cylinder rod end tube

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

straight, 7/8-14 inch flare

1шт.

7

H672353

TUBE ASSY.,15.88 mm OD

bucket cylinder, rod end

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

H672570

CYLINDER

ASSEMBLY, 3 (76) ID x 25-3/4 inch (654 mm) stroke, backhoe bucket, parts list Fig. 8-74

1шт.

11

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

adj, 3-1/16, 4 inch dia., bucket cylinder tube to bucket cylinder

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

H433857

HOSE ASSY.

111-3/8 inch (2830 mm) long, bucket cylinder closed end tube to control valve tube

1шт.

15

H231894

CLAMP

bucket cylinder hoses

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

19

H436769

CLAMP

hoses

2шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

23

H231894

CLAMP

hoses

4шт.

24

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

25

H426775

WASHER

flat, special, hardened

4шт.

26

230-4215

NUT,5/16"-18, GA

4шт.

27

H433518

CLAMP

hoses

1шт.

28

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

30

230-4216

LOCK NUT,3/8"-16, GA

1шт.

31

H672389

TUBE ASSY.,15.88 mm OD

bucket cylinder closed end at control valve

1шт.

32

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

H233304

CLAMP

hoses

4шт.

35

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

hex, 5/16 NC x 3-1/4 inch

4шт.

36

H426775

WASHER

flat, special, hardened

8шт.

37

230-4215

NUT,5/16"-18, GA

4шт.

38

D131814

SLEEVE

hose protector

2шт.
