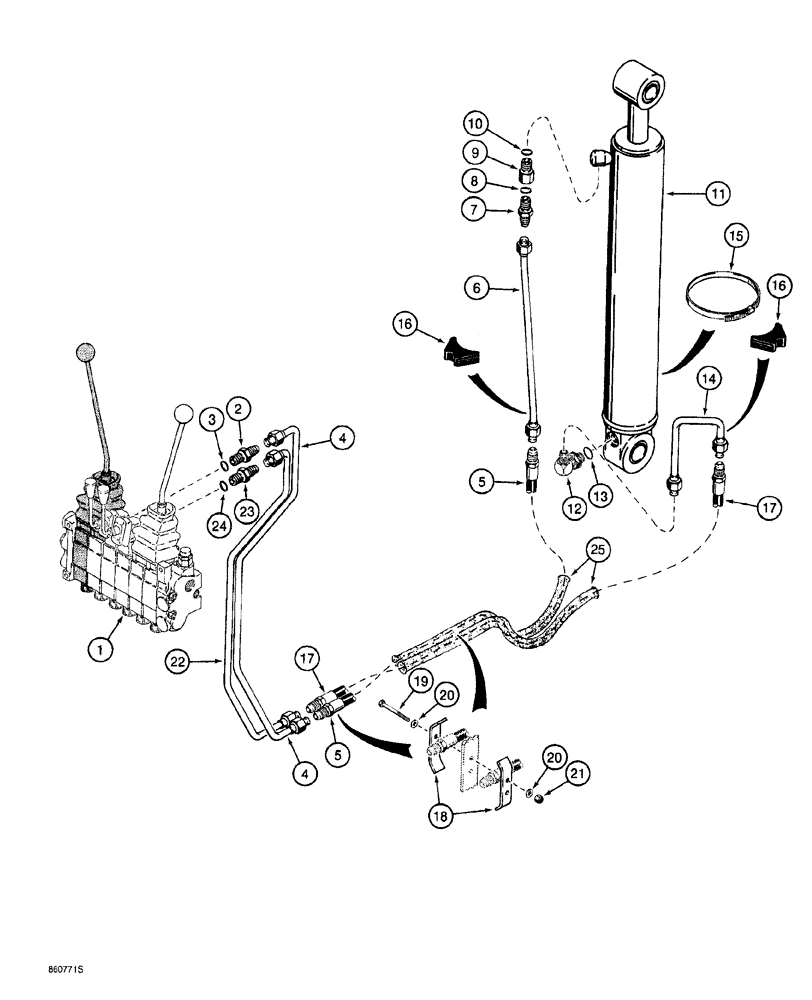

Запчасти Case 760 (08-048) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-54 -8-64 (Kontak) and Figs.8-65A - 8-65K (Commercial Intertech)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672386

TUBE ASSY.,15.88 mm OD

control valve to boom cylinder rod end hose

1шт.

5

H433855

HOSE ASSY.

36 inch (910 mm) long, control valve tube to boom cylinder rod end tube

1шт.

6

H672349

TUBE,15.88 mm OD x 505, 43 mm L

boom cylinder, rod end

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

H434281

FITTING

special, floating orifice, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

H672568

CYLINDER

ASSEMBLY, 4 (102) ID x 24-1/2 inch (622 mm) stroke, parts list Fig. 8-70

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

H672348

TUBE,15.88 mm OD

boom cylinder, closed end

1шт.

15

214-1488

HOSE CLAMP,130.05mm - 152.4mm

Adj.

1шт.

16

D38648

BLOCK

SPACER rubber

2шт.

17

H433855

HOSE ASSY.

36 inch (910 mm) long, boom cylinder closed end tube to control valve tube

1шт.

18

H233304

CLAMP

hoses

4шт.

19

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

hex, 5/16 NC x 3-1/4 inch

4шт.

20

H426775

WASHER

flat, special, hardened

8шт.

21

230-4215

NUT,5/16"-18, GA

4шт.

22

H672385

TUBE ASSY.,15.88 mm OD

boom cylinder closed end at backhoe control valve

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

D131789

SLEEVE

hose retaining

2шт.
