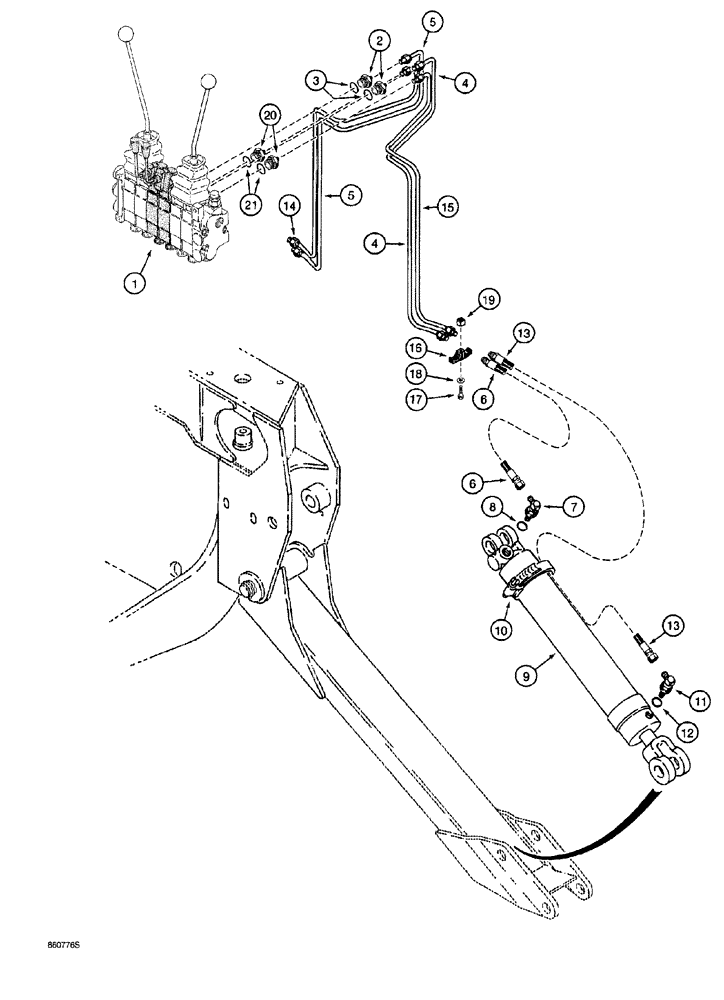

Запчасти Case 760 (08-042) - BACKHOE STABILIZER CYLINDER CIRCUIT (35) - HYDRAULIC SYSTEMS

1

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-54 - 8-64 (Kontak) and Figs. 8-65A - 8-65K (Commercial Intertech)

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H672407

TUBE ASSY.,9.53 mm OD

control valve to right-hand stabilizer cylinder hose

1шт.

5

H672405

TUBE ASSY.,9.53 mm OD

control valve to left-hand stabilizer cylinder hose

1шт.

6

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Tube to Stabilizer Cylinder, Closed End

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY, backhoe stabilizer, see Fig. 8-66 or 8-67A for correct assembly and components

2шт.

10

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj., Hose to stabilizer cylinder

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H434207

HOSE ASSY.

36 inch (915 mm) long, stabilizer cylinder rod, Serial Range: end-tube

2шт.

14

H672406

TUBE ASSY.,9.53 mm OD

left-hand stabilizer cylinder rod end hose to control valve

1шт.

15

H672408

TUBE ASSY.,9.53 mm OD

right-hand stabilizer cylinder rod end hose to control valve

1шт.

16

D120679

CLAMP,Tube, 1/2"

stabilizer cylinder hoses

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

19

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

20

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
