(08-040) - BACKHOE SUPPLY AND RETURN LINES, CONTROL VALVE AND MOUNTING

Запчасти Case 760 (08-040) - BACKHOE SUPPLY AND RETURN LINES, CONTROL VALVE AND MOUNTING (35) - HYDRAULIC SYSTEMS

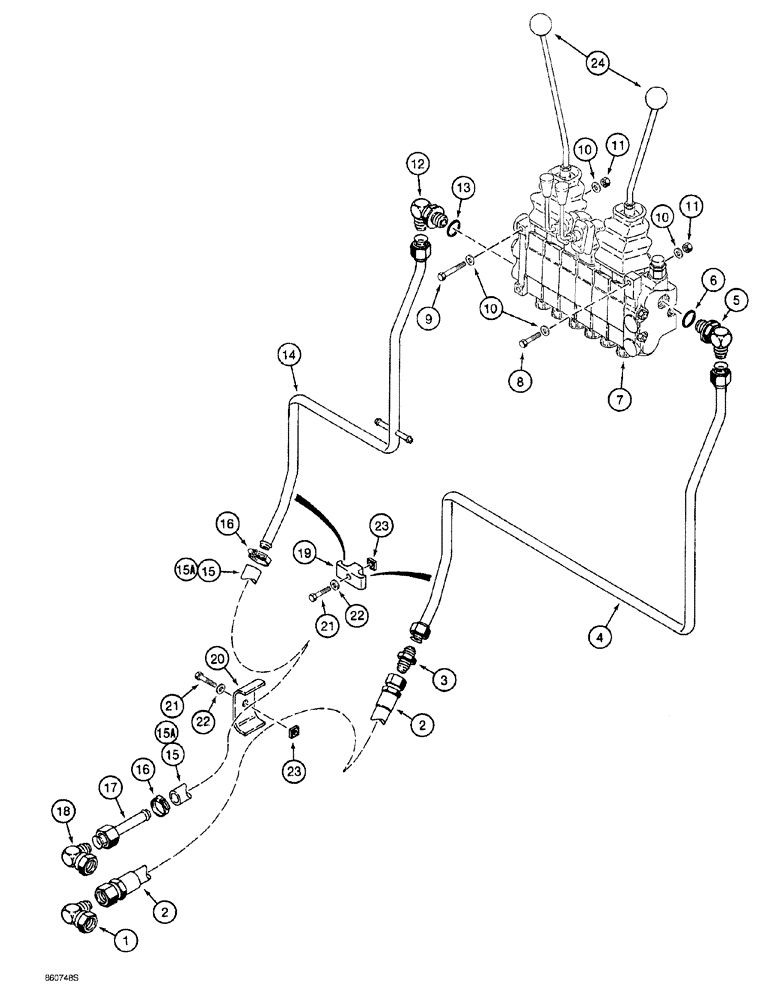

Схема запчастей Case 760 - (08-040) - BACKHOE SUPPLY AND RETURN LINES, CONTROL VALVE AND MOUNTING (35) - HYDRAULIC SYSTEMS
16
13
11
20
2
1
19
4
22
11
17
10
24
18
5
10
23
15
15a
21
2
9
22
10
21
7
23
15a
6
16
3
15
8
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

2

H433854

HOSE ASSY.

30-1/2 inch (775 mm) long, backhoe control valve supply

1шт.

3

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR straight, 1-1/16-12 inch flare

1шт.

4

H672533

TUBE ASSY.,19.05 mm OD

backhoe control valve supply

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

H672270

VALVE

ASSEMBLY, backhoe control, 6 spool, parts list Figs. 8-54 -8-64 (Kontak) and Figs. 8-65A - 8-65K (Commercial Intertech)

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

11

232-4116

NUT,3/8"-16, GC

3шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

H672534

TUBE ASSY.,19.09 mm OD

backhoe control valve return

1шт.

15

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

Cut from H379214 bulk hose, Backhoe control valve return, See below

1шт.

15a

D124348

HOSE,19.05 mm ID x 760.00 mm, SAE 30R2 TYPE 1

Cut from H379214 Bulk Hose, Backhoe Control Valve Return, See Below

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

17

H624452

TUBE,0.75" OD x 6" L

backhoe return hose to chassis

1шт.

18

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

19

D124301

CLAMP,3/4" ID

tubes

1шт.

20

H231878

CLAMP

hoses

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

23

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

24

CAS31375

KNOB

backhoe control valve

2шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Refs. 15 and 15A

1шт.
