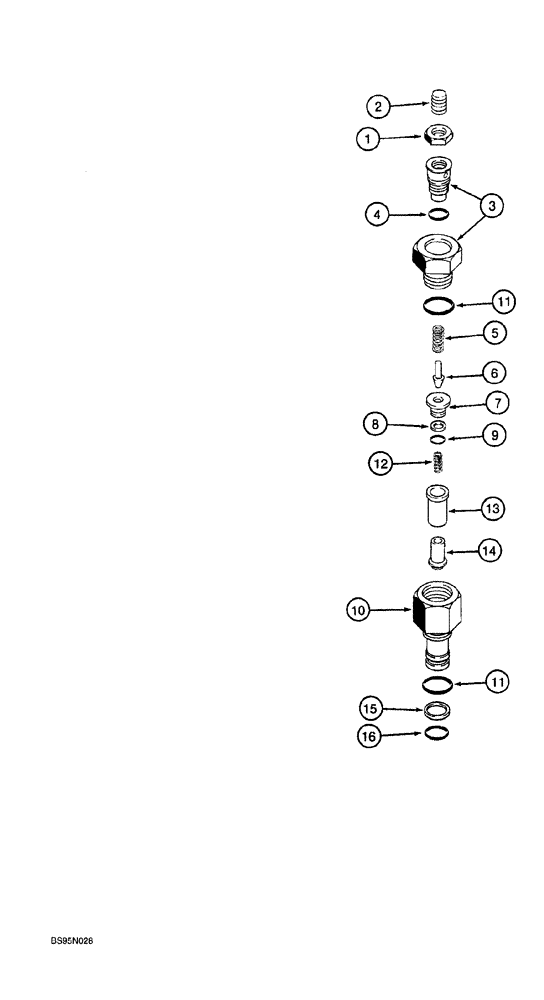

Запчасти Case 760 (08-039A) - ATTACHMENT CONTROL VALVE, RELIEF VALVE - 100868A1 (35) - HYDRAULIC SYSTEMS

100868A1

CLEVIS

VALVE ASSEMBLY, relief, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

NUT hex, jam, special

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW adjusting, special

1шт.

3

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING large

1шт.

6

NSS

NOT SOLD SEPARAT

POPPET

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

8

100869A1

GASKET

RING backup

1шт.

9

T29653

O-RING,11/32" ID x 7/32" OD x 1/16"

seat

1шт.

10

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING piston

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE piston

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup

1шт.

16

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

Small

1шт.
