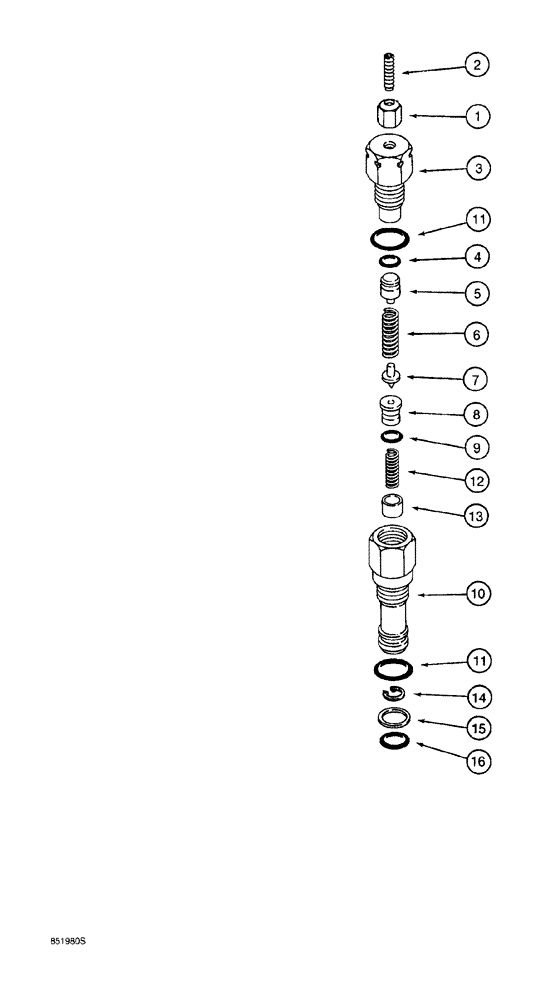

Запчасти Case 760 (08-038) - ATTACHMENT CONTROL VALVE, RELIEF VALVE - N13457 (35) - HYDRAULIC SYSTEMS

N13457

LOCK VALVE

ASSEMBLY, relief, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

NUT hex, jam, special

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW adjusting, special

1шт.

3

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

4

W11903

O-RING

poppet

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

9

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING piston

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE spring

1шт.

14

NSS

NOT SOLD SEPARAT

RING snap, piston stop

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup

1шт.

16

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

Small

1шт.
