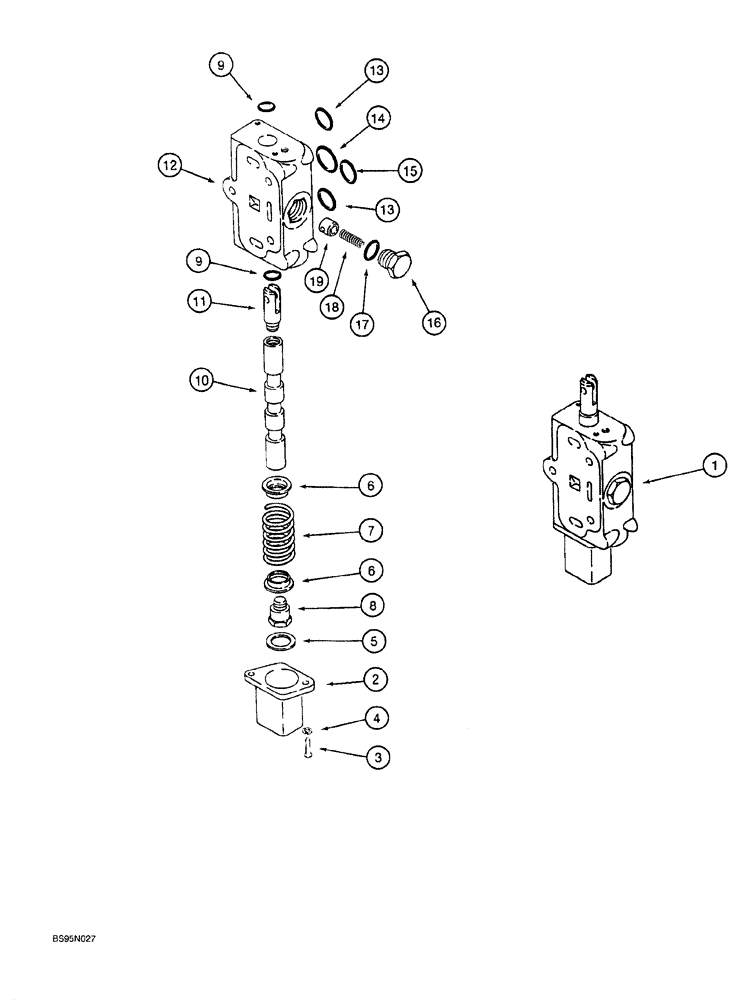

Запчасти Case 760 (08-036) - ATTACHMENT CONTROL VALVE, VALVE SECTIONS (35) - HYDRAULIC SYSTEMS

1

N13453

ELEMENT

SECTION ASSEMBLY, backfill tilt, Includes: Ref. 2 - 19

1шт.

1

N13453

ELEMENT

SECTION ASSEMBLY, backfill or reel carrier lift, Includes: Ref. 2 - 19

1шт.

1

N13453

ELEMENT

SECTION ASSEMBLY, manual rear steering, if used, Includes: Ref. 2 - 19

1шт.

The manual rear steering section is only used on machines w/out electronic rear steering. On models w/electronic rear steering, this section is plugged w/Ref. 20 hex head plugs

1шт.

1

N13453

ELEMENT

SECTION ASSEMBLY, trencher lift, Includes: Ref. 2 - 19

1шт.

1

N13453

ELEMENT

SECTION ASSEMBLY, backfill angle, Includes: Ref. 2 - 19

1шт.

2

N13465

COVER

detent

1шт.

3

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

2шт.

4

492-11010

LOCK WASHER,#10

2шт.

5

N13466

SPACER

cover

1шт.

6

N13467

GASKET

SEAT spring

2шт.

7

N13468

SPRING

detent

1шт.

8

NSS

NOT SOLD SEPARAT

END spool

1шт.

9

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL valve section

1шт.

11

NSS

NOT SOLD SEPARAT

END spool eye

1шт.

12

NSS

NOT SOLD SEPARAT

BODY valve section

1шт.

13

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

Small

2шт.

14

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

Large

1шт.

15

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

N13469

PLUG

ASSEMBLY, load check valve, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

N13470

SPRING

load check valve

1шт.

19

N13471

PISTON

load check valve

1шт.

20

214389

PLUG,3/4" - 16 ORB

Used in center valve section on models with electronic rear steering, if used, not shown, Includes Ref. 21

2шт.

The manual rear steering section is only used on machines w/out electronic rear steering. On models w/electronic rear steering, this section is plugged w/Ref. 20 hex head plugs

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not shown

1шт.

The manual rear steering section is only used on machines w/out electronic rear steering. On models w/electronic rear steering, this section is plugged w/Ref. 20 hex head plugs

1шт.
