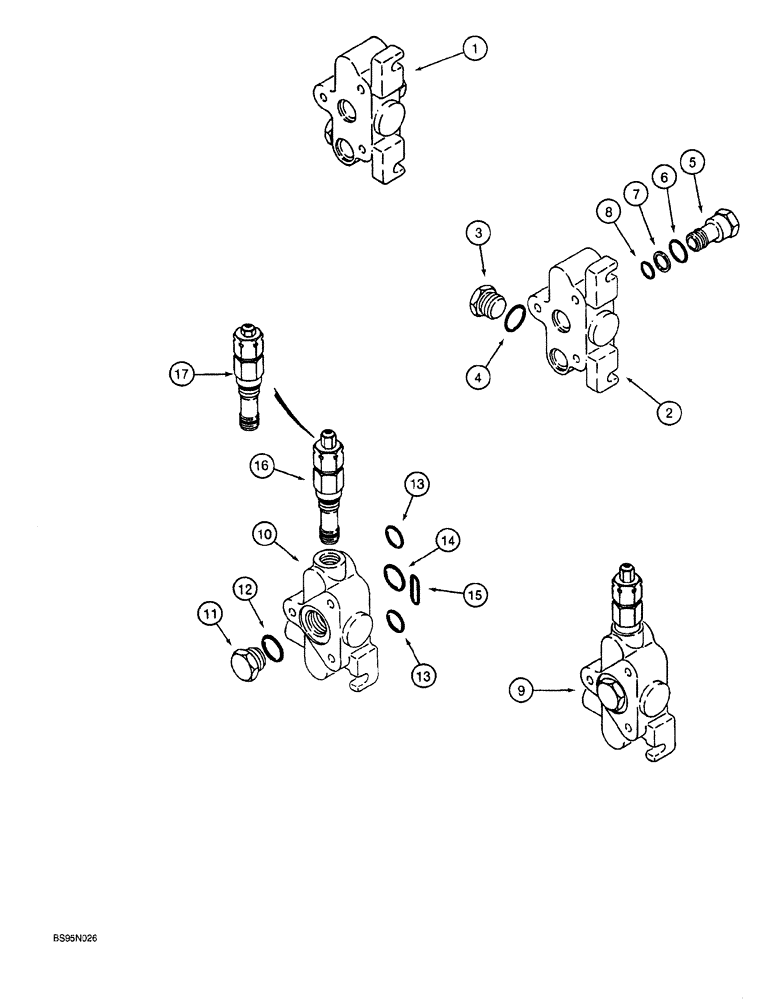

Запчасти Case 760 (08-034) - ATTACHMENT CONTROL VALVE, OUTLET AND INLET SECTIONS (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY, outlet, not available, order individual components, Includes: Ref. 2 - 8

1шт.

2

N13463

BODY

outlet section

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Outlet section, Incl. Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Outlet section

1шт.

N13464

SLEEVE

ASSEMBLY, power beyond, outlet section, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE power beyond, outlet section

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Large, outlet section

1шт.

7

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, small O, outlet section

1шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Small, outlet section

1шт.

9

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY, inlet, not available, order individual components, Includes: Ref. 10 - 17

1шт.

10

N13456

BODY

inlet section

1шт.

11

86512512

PLUG,7/8" - 14 ORB

Inlet section, Incl. Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Inlet section

1шт.

13

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

Small, inlet section

2шт.

14

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

Large, inlet section

1шт.

15

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

Inlet section

1шт.

16

N13457

LOCK VALVE

ASSEMBLY, relief, attachment control, with wide hex nut on outer end, parts list Fig. 8-38, inlet section

1шт.

17

100868A1

CLEVIS

VALVE ASSEMBLY, relief, attachment control valve, with thin hex nut on outer end, parts list Fig. 8-38, inlet section

1шт.
