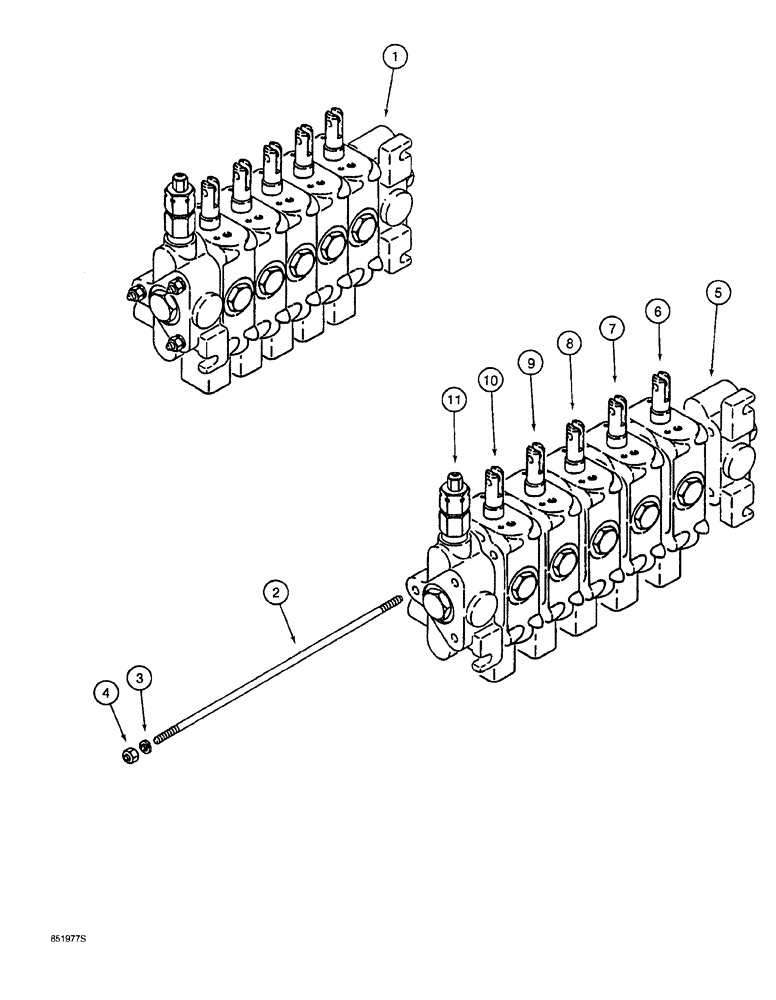

Запчасти Case 760 (08-032) - ATTACHMENT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

H672412

VALVE

ASSEMBLY, control, attachment, Includes: Ref. 2 - 11

1шт.

N14389

KIT

tie stud

1шт.

2

NSS

NOT SOLD SEPARAT

STUD tie, valve sections

3шт.

3

492-11031

LOCK WASHER,5/16"

6шт.

4

425-105

NUT,5/16"-18, G5

6шт.

5

NSS

NOT SOLD SEPARAT

SECTION outlet, control valve, complete assembly not available, order individual components, parts list Fig. 8-34

1шт.

6

N13453

ELEMENT

SECTION ASSEMBLY, backfill tilt, parts list Fig. 8-36

1шт.

7

N13453

ELEMENT

SECTION ASSEMBLY, backfill or reel carrier lift, parts list Fig. 8-36

1шт.

8

N13453

ELEMENT

SECTION ASSEMBLY, manual rear steering, if used, parts list Fig. 8-36

1шт.

Ref. 8 valve section assy. is only used on machines w/out electronic rear steering, On models w/electronic rear steering, this section is plugged w/Ref. 12 hex head plugs

1шт.

9

N13453

ELEMENT

SECTION ASSEMBLY, trencher lift, parts list Fig. 8-36

1шт.

10

N13453

ELEMENT

SECTION ASSEMBLY, backfill angle, parts list Fig. 8-36

1шт.

11

NSS

NOT SOLD SEPARAT

SECTION inlet, control valve, complete assembly not available, order individual components, parts list Fig. 8-34

1шт.

12

214389

PLUG,3/4" - 16 ORB

Used in item 8 valve section on models with electronic rear steering, if used, not shown, Includes Ref. 13

2шт.

Ref. 8 valve section assy. is only used on machines w/out electronic rear steering, On models w/electronic rear steering, this section is plugged w/Ref. 12 hex head plugs

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not shown

1шт.

Ref. 8 valve section assy. is only used on machines w/out electronic rear steering, On models w/electronic rear steering, this section is plugged w/Ref. 12 hex head plugs

1шт.
