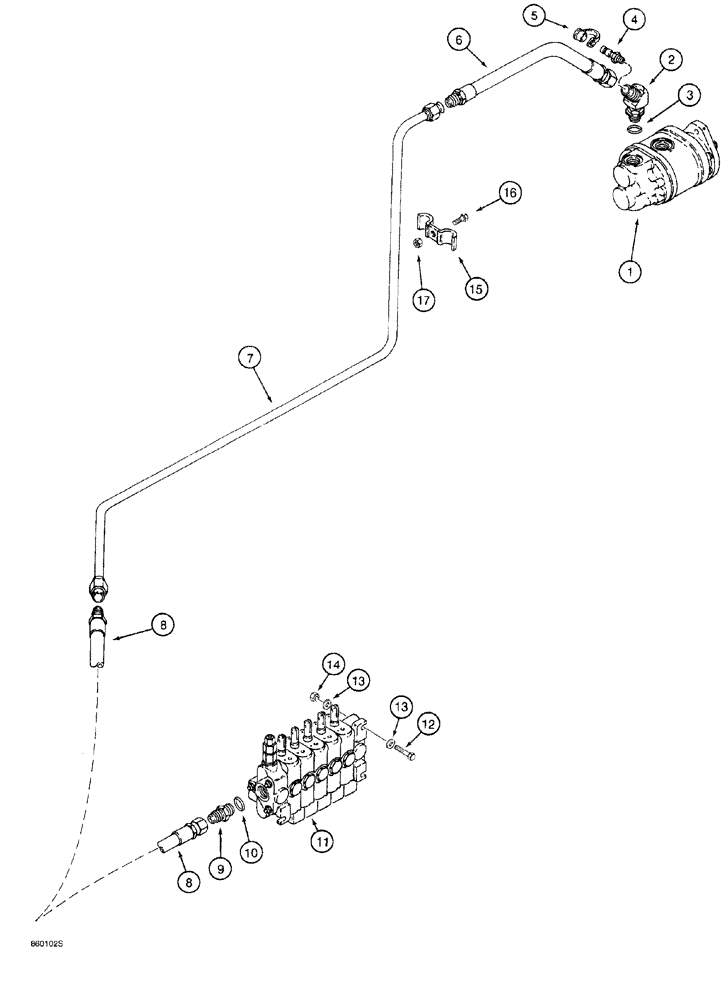

Запчасти Case 760 (08-030) - BASIC HYDRAULIC CIRCUIT, DUAL PUMP TO ATTACHMENT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

H672435

PUMP, HYDRAULIC

ASSEMBLY, dual, parts list Fig. 5-32

1шт.

2

H434165

ELBOW

45 degree, special, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H434164

COUPLING

quick check, steering diagnostic device

1шт.

5

H434163

DUST CAP

1шт.

6

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump to Attachment Control Valve Tube

1шт.

7

H672275

TUBE,15.9 mm OD

dual pump hose to attachment valve supply hose

1шт.

8

H267054

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R2

Dual pump tube to attachment control valve

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

H672412

VALVE

ASSEMBLY, control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

14

230-4216

LOCK NUT,3/8"-16, GA

3шт.

15

A12032

CLAMP

tube, use existing hardware in some applications

5шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

17

230-4215

NUT,5/16"-18, GA

1шт.
