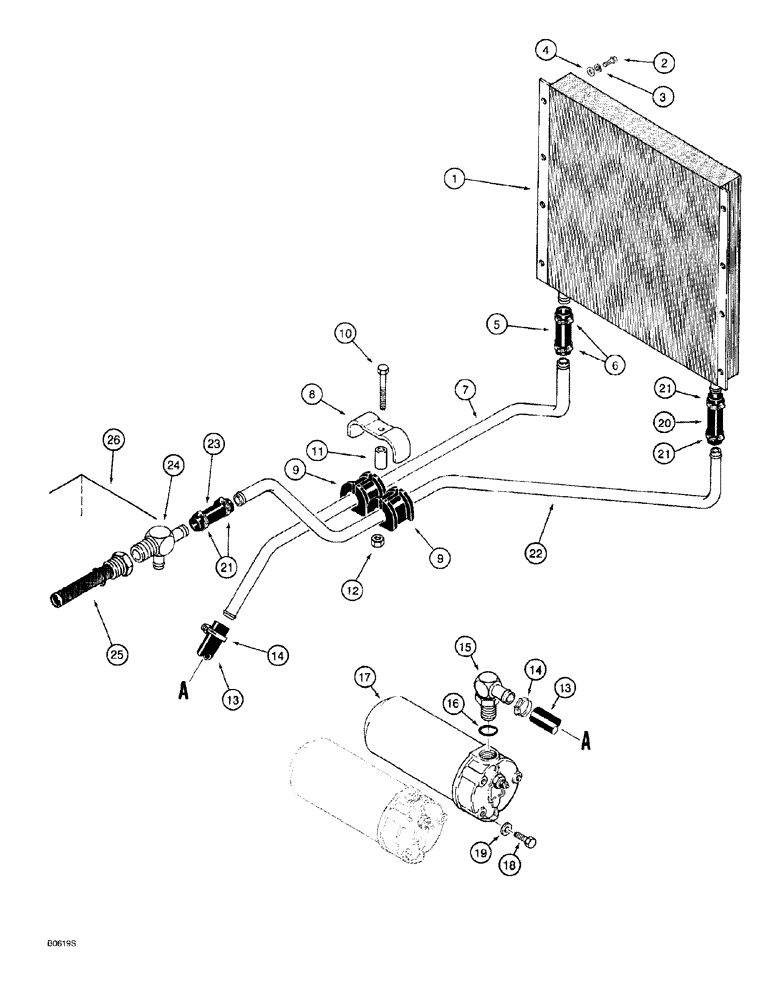

Запчасти Case 760 (08-028) - BASIC HYDRAULIC CIRCUIT, OIL COOLER AND LINES (35) - HYDRAULIC SYSTEMS

1

A171583

COOLER, OIL

hydraulic

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

3

492-11031

LOCK WASHER,5/16"

8шт.

4

H426775

WASHER

flat, special, hardened

8шт.

5

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

Cut from H307926 Bulk Hose, Tube to Oil Cooler, See Below

1шт.

6

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

7

H433570

TUBE,25.4 mm OD x 946 mm L

hose to oil cooler

1шт.

8

D83594

CLAMP

double

1шт.

9

D67297

BLOCK

INSULATOR rubber

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

11

H317818

SPACER

clamp

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

1шт.

13

H309013

HOSE

32 inch (813 mm) long, cut from H307926 bulk hose, filter to tube, see below

1шт.

14

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

15

H435465

FITTING

ELBOW, 90 degree, special, Includes: Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

H671529

FILTER ASSY

hydraulic oil return, parts list Fig. 8-168

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

20

A160211

HOSE,1.00" ID x 3.00", SAE 30R2 TYPE 2 PER SAE J30

Cut from H307926 Bulk Hose, Oil Cooler to Reservoir Tube, See Below

1шт.

21

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

4шт.

22

H433571

TUBE,25.4 mm OD

oil cooler to reservoir

1шт.

23

L60332

HOSE

5 inch (127 mm) long, cut from A140780 bulk hose, tube to reservoir, see below

1шт.

24

H353243

FITTING

TEE special

1шт.

25

H151399

FILTER STRAINER

SCREEN, hydraulic oil, return line

1шт.

26

H673055

RESERVOIR

ASSEMBLY, hydraulic oil, parts list Fig. 8-2

1шт.

H307926

HOSE ASSY.

bulk, 1 (25) ID x 62 inch (1575 mm) long, use to make Refs. 5, 13, and 20

1шт.

A140780

HOSE,1.00" ID x 83.00", SAE 30R2 TYPE 1

Bulk, Use to make Ref. 23

1шт.
