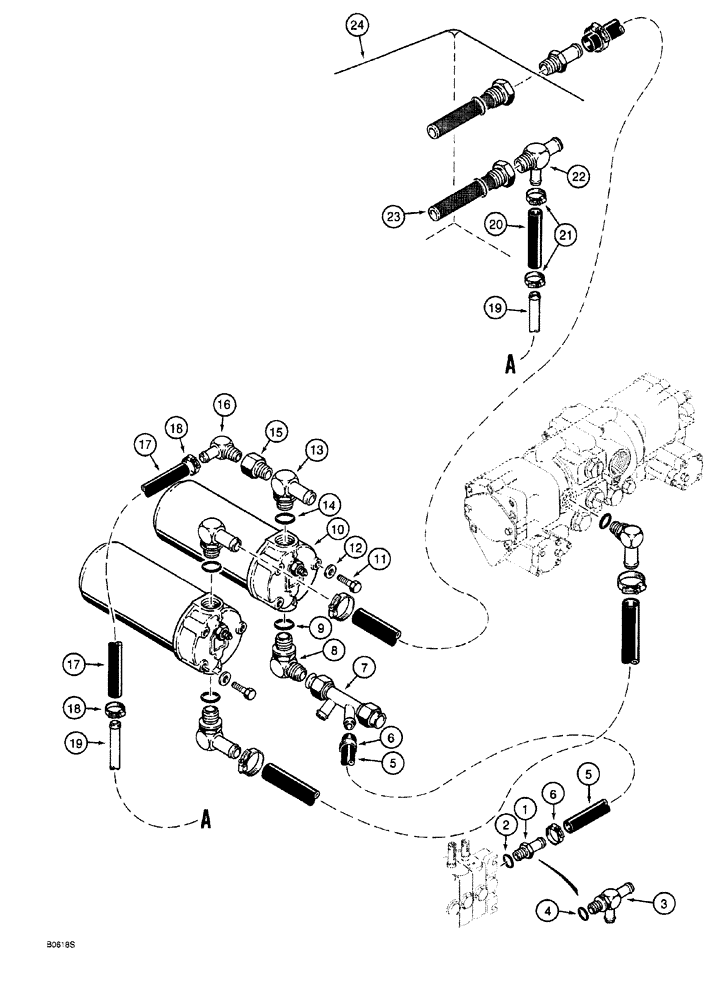

Запчасти Case 760 (08-024) - BASIC HYDRAULIC CIRCUIT, RETURN FILTERS AND LINES (35) - HYDRAULIC SYSTEMS

1

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

straight, 3/4 stem end x 7/8-14 inch adj O-ring boss, used on models without rear auxiliary hydraulics, if used, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H431825

FITTING

TEE, special, see Fig.8-18, Ref. 12, for hydraulic circuit from tee to bulkhead plate, if used, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

H316331

HOSE

33 inch (838 mm) long, cut from H379214 bulk, attachment control valve to filter, see below

1шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

7

H672308

TUBE,25.4 mm OD x 150, 106 mm L

hose to filter, front drain manifold

1шт.

8

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

H671529

FILTER ASSY

hydraulic oil return, parts list Fig. 8-168

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

13

H435465

FITTING

ELBOW, 90 degree, special, Includes: Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

H627513

VALVE

check

1шт.

16

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

ELBOW, 90 degree, 3/4 inch stem end x PT

1шт.

17

H383158

HOSE,0.75" ID x 17.72", SAE 30R2

Cut from D55911 Bulk, Bypass Line, See Below

1шт.

18

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

19

H433589

TUBE,19.05 mm OD

bypass line

1шт.

20

A57185

HOSE

4-3/4 inch (121 mm) long, cut from D55911 bulk, bypass line, see below

1шт.

21

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

22

H353243

FITTING

TEE, special, bypass and return lines

1шт.

23

H151399

FILTER STRAINER

SCREEN, hydraulic return oil

1шт.

24

H673055

RESERVOIR

ASSEMBLY, hydraulic oil, parts list Fig. 8-2

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 5

1шт.

D55911

HOSE

bulk, 3/4 inch (19 mm) ID x 28 inch (711 mm) long, use to make Refs. 17 and 20

1шт.

25

217-366

FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

H434444

HYDRAULIC HOSE,25.40 mm ID x 585.00 mm, SAE 30R2 Type 2

Cut from A160026 bulk hose, Tandem pump to filter, See below

1шт.

28

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

29

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 degree, 1 stem end x 1-5/16-12 inch adj. O-ring boss, Includes: Ref. 30

1шт.

30

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

H671529

FILTER ASSY

hydraulic oil return, parts list Fig. 8-169

1шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

34

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 degree, 1 stem end x 1-5/16-12 inch adj. O-ring boss, Includes: Ref. 35

1шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

H49650

LARGE HOSE

HOSE,LARGE 48 inch (1 21 9 mm) long, cut from S118383X bulk hose, filter to reservoir, see below

1шт.

37

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

2шт.

38

217-156

FITTING,1" Hose Barb x 1" Male NPTF

straight, 1 inch stem end x PT

1шт.

39

H151399

FILTER STRAINER

SCREEN, hydraulic return oil

1шт.

A160026

HOSE,1.00" ID x 77.00", SAE 30R2 TYPE 1 PER SAE J30

Bulk, Use to make Ref. 27

1шт.

S118383X

LARGE HOSE

HOSE,LARGE bulk, 1 (25) x 1-1/2 (38) x 192 inch (4877 mm) long, use to make Ref. 36

1шт.
