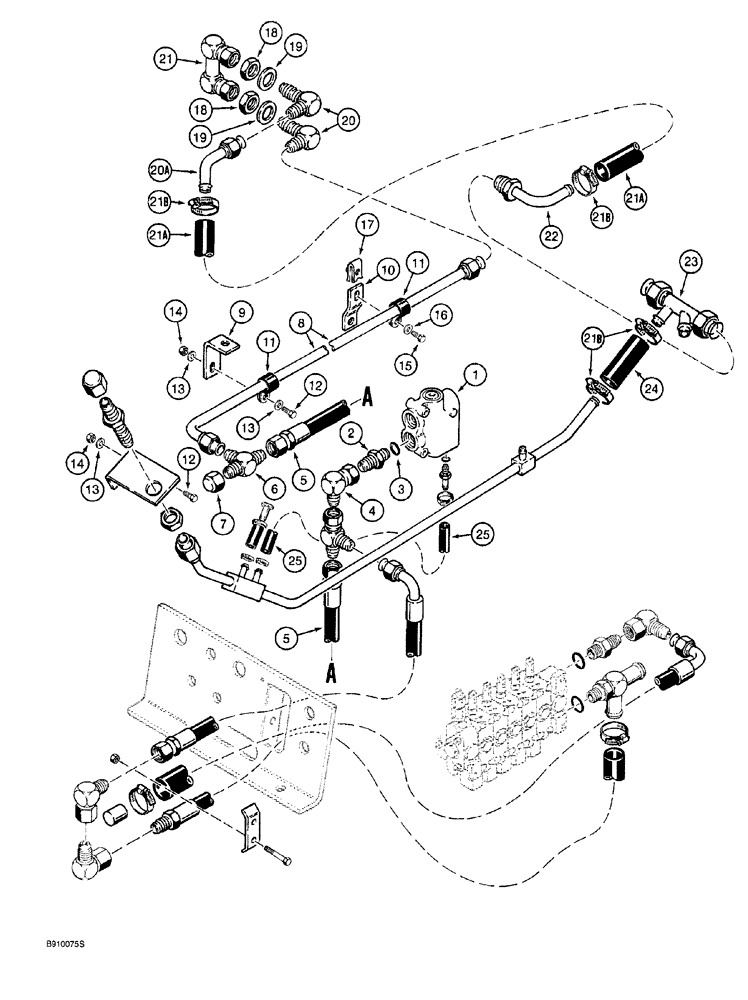

Запчасти Case 760 (08-020) - BASIC HYD. CIRCUIT, PRIORITY VALVE OUT, MODELS W/O ELECTRONIC STEERING, P.I.N. JAF0003171 AND AFTER (35) - HYDRAULIC SYSTEMS

1

H672904

VALVE

ASSEMBLY, priority flow divider, parts list Fig.5-40

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Straight, O-Ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

5

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve to Backhoe Supply Tube

1шт.

6

218-596

TEE,1 1/16"-12 37 Degree

TEE, 1-1/16-12 inch flare branch x flare x flare

1шт.

7

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

8

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

backhoe supply line

1шт.

9

H434096

BRACKET

tube support

1шт.

10

H435758

SUPPORT

tube

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

14

230-4216

LOCK NUT,3/8"-16, GA

2шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

16

H426775

WASHER

flat, special, hardened

1шт.

17

H346650

NUT

U-type, 5/16 inch NC

1шт.

18

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

See Fig. 8-40 for backhoe supply and return lines from bulkhead nuts (Ref.18) out

1шт.

19

95-81125

WASHER,1 1/16" x 1 3/4" x .065"

flat, 1-1/16 x 1-3/4 x 1/16 inch

2шт.

20

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

20a

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return, backhoe

1шт.

21

H673212

FITTING

special

1шт.

21a

H317313

HOSE ASSY.

28 inch (711 mm) long, cut from H379214 bulk hose, backhoe return line, see below

1шт.

See Fig. 8-40 for backhoe supply and return lines from bulkhead nuts (Ref.18) out

1шт.

21b

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

22

H672487

TUBE,19.05 mm OD x 80, 80 mm L

backhoe return line

1шт.

See Fig. 8-40 for backhoe supply and return lines from bulkhead nuts (Ref.18) out

1шт.

23

H672308

TUBE,25.4 mm OD x 150, 106 mm L

hose to filter, front drain manifold

1шт.

24

A57185

HOSE

4-3/4 inch (121 mm) long, cut from D55911 bulk hose, backhoe return line, see below

1шт.

See Fig. 8-40 for backhoe supply and return lines from bulkhead nuts (Ref.18) out

1шт.

25

H436938

HOSE

15-3/4 inch (400 mm) long, cut from S118400X bulk hose, priority valve return, see below

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Refs. 21A and 24

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long, use to make Ref. 25

1шт.

26

217-385

FITTING

straight, 3/8 stem end x 7/16-20 inch adj. O-ring boss, Includes: Ref. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

4шт.

29

S120052

HOSE, 2 inch (51 mm) long, cut from S118400X bulk hose, see below

1шт.

30

H44586

AXLE PIN

clevis, special, used as plug in this application

1шт.

31

H672485

TUBE,19.05 mm OD

manifold, rear steering valve drain

1шт.

32

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

32a

H434618

ANGLE

BRACKET tube support

1шт.

33

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1-1/16-12 inch flare x bulkhead flare

1шт.

34

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

35

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

36

H434986

HOSE ASSY.

25-1/4 inch (1150mm) long, priority flow divider valve to bulkhead plate

1шт.

37

H233304

CLAMP

hose

1шт.

38

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

39

230-4215

NUT,5/16"-18, GA

2шт.

40

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

41

H269449

PLUG

hose

1шт.

42

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

43

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

46

H434985

HOSE

41-5/16 inch (1050 mm) long, power beyond, attachment control valve to bulkhead plate

1шт.

47

H317347

HOSE

46 inch (1168 mm) long, cut from H379214 bulk hose, return, bulkhead plate to tee at attachment control valve, see below

1шт.

48

H431825

FITTING

TEE, special, see Fig. 8-24, Ref.3 for continuation of circuit, Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long, use to make Ref. 29

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 47

1шт.
