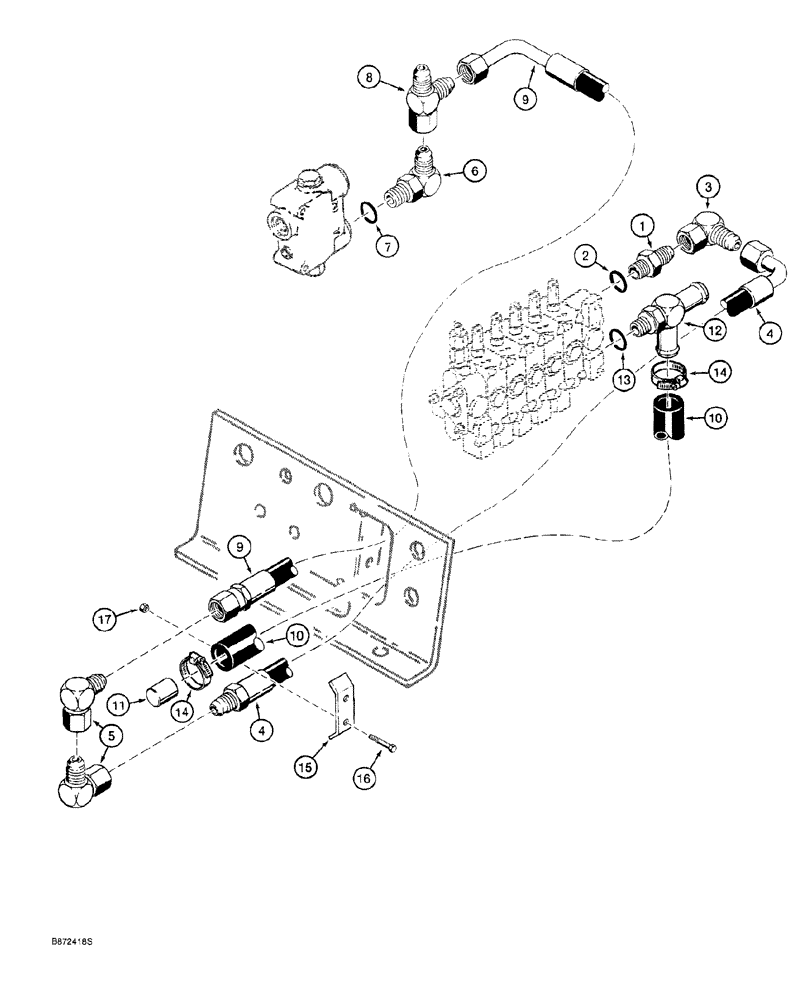

Запчасти Case 760 (08-018) - BASIC HYD. CIRCUIT, POWER BEYOND CIRCUIT, MODELS W/ REAR AUXILIARY HYD., PRIOR TO PIN JAF0003171 (35) - HYDRAULIC SYSTEMS

1

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

4

H434985

HOSE

41-5/16 inch (1050 mm) long, power beyond, attachment control valve to bulkhead plate

1шт.

5

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Not used on units equipped with plow option

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

9

H434986

HOSE ASSY.

25-1/4 inch (1150 mm) long, priority flow divider valve to bulkhead plate

1шт.

10

H317347

HOSE

46 inch (1168 mm) long, cut from H379214 bulk hose, return, bulkhead plate to tee at attachment control valve, see below

1шт.

11

H269449

PLUG

hose

1шт.

12

H431825

FITTING

TEE special, see Fig. 8-24, Ref. 3 for continuation of circuit, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

15

H233304

CLAMP

hose

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

17

230-4215

NUT,5/16"-18, GA

2шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 10

1шт.
