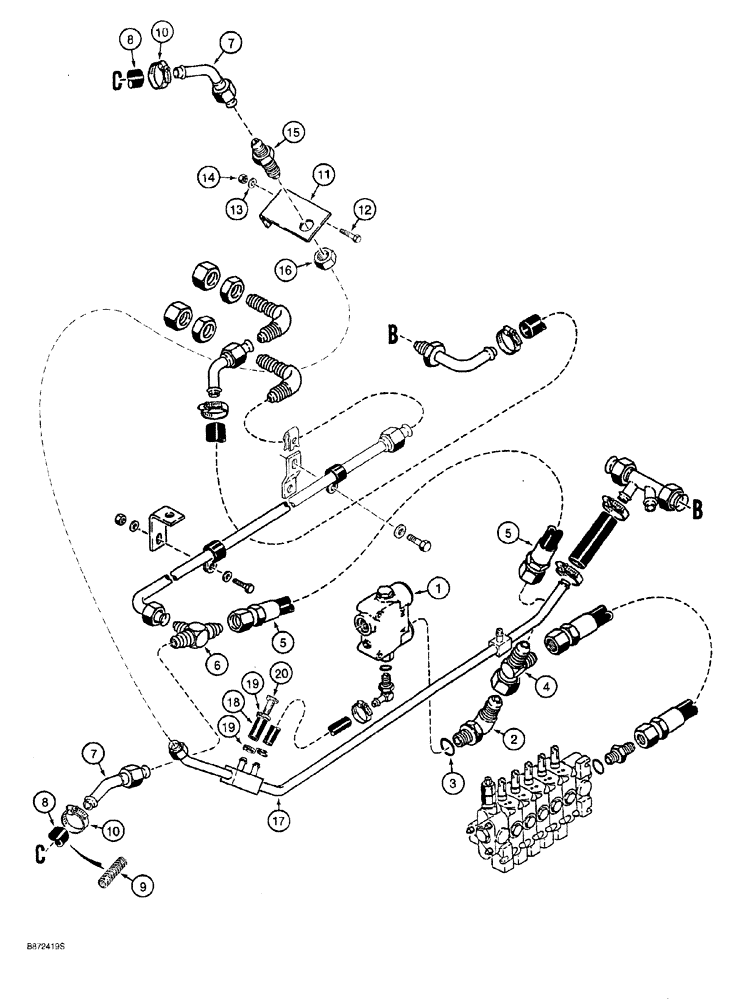

Запчасти Case 760 (08-014) - BASIC HYD. CIRCUIT, PRIORITY VALVE OUT, MODELS W/O ELECTRONIC STEERING, PRIOR TO P.I.N. JAF0003171 (35) - HYDRAULIC SYSTEMS

1

H672118

VALVE

ASSEMBLY, priority flow divider, parts list Fig. 5-38

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

5

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve Tee to return Line Tee

1шт.

6

218-596

TEE,1 1/16"-12 37 Degree

TEE, 1-1/16-12 inch flare branch x flare x flare

1шт.

7

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return

2шт.

8

H212951

HOSE

24 inch (610 mm) long, cut from H379214 bulk hose, return, not used when unit is equipped with a backhoe, see below

1шт.

See Fig. 8-40 for backhoe control valve supply and return lines

1шт.

9

H309906

SPRING

12 inch (305 mm) long, return hose, not used when unit is equipped with a backhoe

1шт.

See Fig. 8-40 for backhoe control valve supply and return lines

1шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Not used when unit is equipped with a backhoe

2шт.

See Fig. 8-40 for backhoe control valve supply and return lines

1шт.

11

H434618

ANGLE

BRACKET tube support

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

14

230-4216

LOCK NUT,3/8"-16, GA

1шт.

15

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER straight, 1-1/16-12 inch flare x bulkhead flare

1шт.

16

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

17

H672485

TUBE,19.05 mm OD

manifold, rear steering valve drain

1шт.

18

S120052

HOSE, 2 inch (51 mm) long, cut from S118400X bulk hose, drain manifold tube, see below

1шт.

19

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

2шт.

20

H44586

AXLE PIN

clevis, special, used as hose plug in this application

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 8

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE,LARGE bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long, use to make Ref. 18

1шт.

21

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW, 90 degree, 3/8 stem end x 9/16-18 inch adj O-ring boss, Includes: Ref. 22

1шт.

23

H433724

LARGE HOSE

HOSE,LARGE 11 inch (279 mm) long, cut from H434205 bulk hose, priority valve return, see below

1шт.

24

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

25

A57185

HOSE

4-3/4 inch (121 mm) long, cut from D55911 bulk hose, backhoe return line, see below

1шт.

26

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

27

H672308

TUBE,25.4 mm OD x 150, 106 mm L

hose to filter, front drain manifold

1шт.

28

H672487

TUBE,19.05 mm OD x 80, 80 mm L

backhoe return line

1шт.

29

H317313

HOSE ASSY.

28 inch (711 mm) long, cut from H379214 bulk hose, backhoe return line, see below

1шт.

30

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return, backhoe line

1шт.

31

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

32

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

34

218-335

CAP,37 Degree, 1 1/16"-12

Hex, Not used when unit is equipped with a backhoe

2шт.

35

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

backhoe supply line

1шт.

36

H434096

BRACKET

tube support

1шт.

37

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

39

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

40

230-4216

LOCK NUT,3/8"-16, GA

1шт.

41

L74334

PIPE

33 inch (838 mm) long, power beyond

1шт.

See Fig. 8-18 for models with power beyond circuit routed to rear bulkhead plate

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 43

1шт.

See Fig. 8-18 for models with power beyond circuit routed to rear bulkhead plate

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

See Fig. 8-18 for models with power beyond circuit routed to rear bulkhead plate

1шт.

44

H672412

VALVE

ASSEMBLY,control, attachment, parts list Figs. 8-32 through 8-39A

1шт.

45

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

46

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

47

H426775

WASHER

flat, special, hardened

1шт.

48

H435758

SUPPORT

tube

1шт.

49

H346650

NUT

U-type, 5/16 inch NC, special

1шт.

H434205

HYDRAULIC HOSE,9.52 mm ID x 655.00 mm, SAE 30R2 Type 2

Use to make Ref. 23

1шт.

D55911

HOSE

bulk, 3/4 inch (19 mm) ID x 28 inch (711 mm) long, use to make Ref. 25

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 29

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
