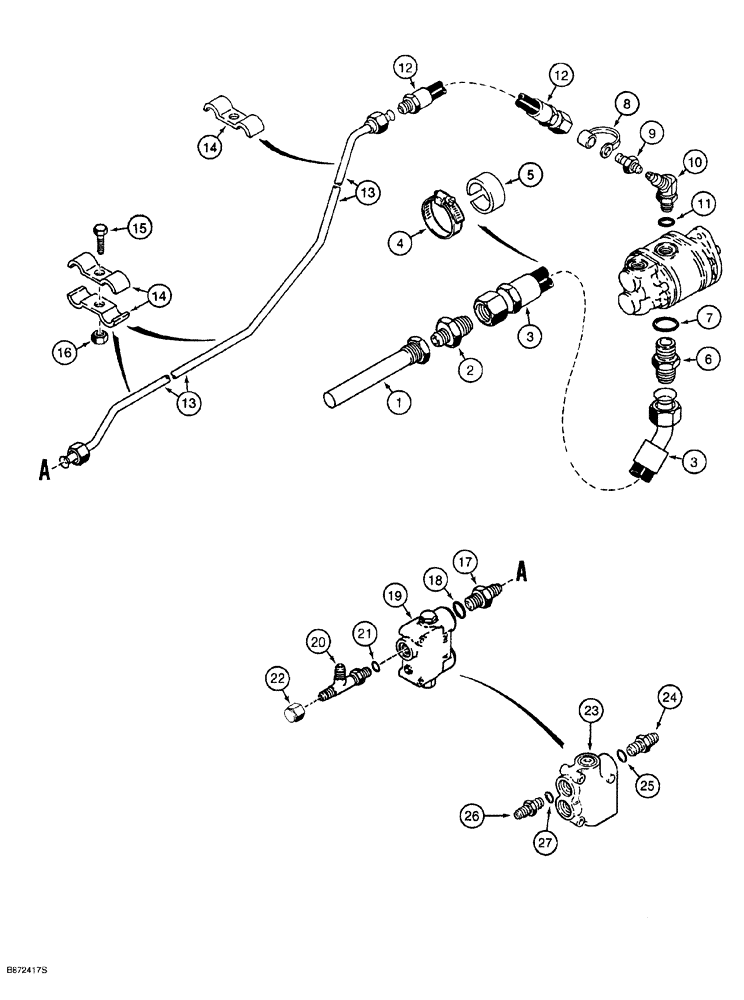

Запчасти Case 760 (08-012) - BASIC HYDRAULIC CIRCUIT, SUCTION SCREEN TO PRIORITY VALVE, MODELS WITHOUT ELECTRONIC STEERING (35) - HYDRAULIC SYSTEMS

1

H434204

BAFFLE

SCREEN suction

1шт.

2

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

straight, 1-5/8-12 flare x 1-1/4 inch PT

1шт.

3

H433853

HOSE

51 inch (1300 mm) long, dual pump suction

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

1шт.

5

H201301

GUARD

hose

1шт.

6

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

H434163

DUST CAP

1шт.

9

H434164

COUPLING

quick check, steering diagnostic device

1шт.

10

H434165

ELBOW

45 degree, special, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump to Priority Flow Divider Valve Tube

1шт.

13

H672274

TUBE,15.9 mm OD

priority flow divider valve supply

1шт.

14

A12032

CLAMP

tube, use existing hardware in some applications

5шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

16

230-4215

NUT,5/16"-18, GA

2шт.

17

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 18, prior to P.I.N. JAF0003171

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Prior to P.I.N. JAF0003171

1шт.

19

H672118

VALVE

ASSEMBLY, priority flow divider, parts list Fig. 5-38, prior to P.I.N. JAF0003171

1шт.

20

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 21, prior to P.I.N. JAF0003171

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Prior to P.I.N. JAF0003171

1шт.

22

218-755

CAP,37 Degree, 3/4"-16

Prior to P.I.N. JAF0003171

1шт.

23

H672904

VALVE

ASSEMBLY, priority flow divider, parts list Fig. 5-40, P.I.N. JAF0003171 and after

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 25, P.I.N. JAF0003171 and after

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

P.I.N. JAF0003171 and after

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 27, P.I.N. JAF0003171 and after

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

P.I.N. JAF0003171 and after

1шт.
