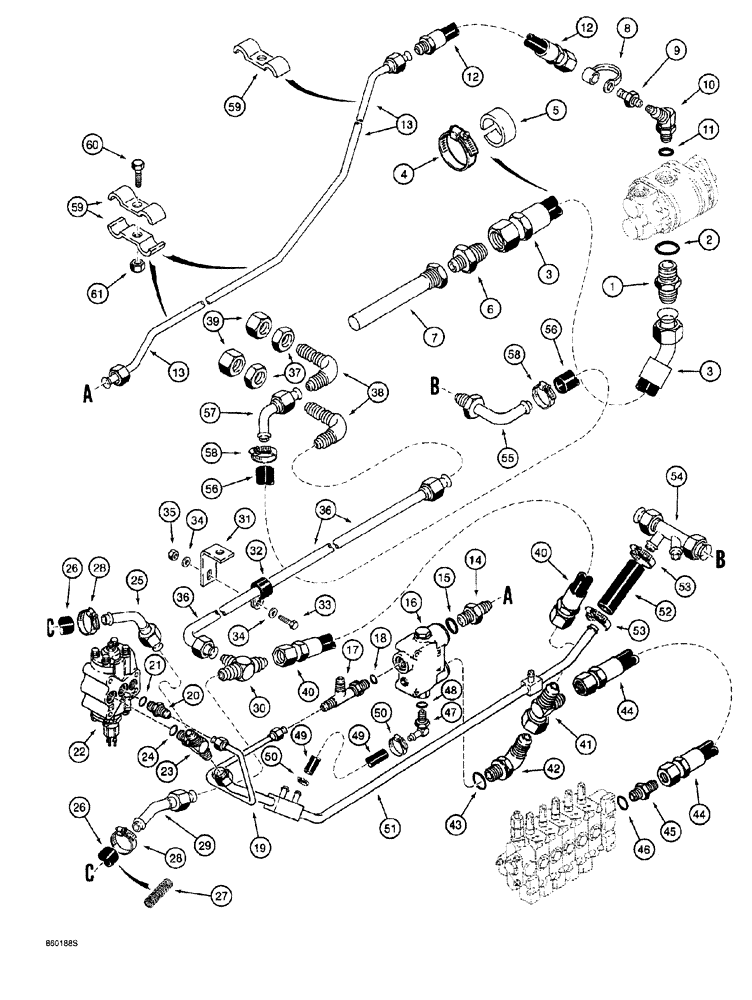

Запчасти Case 760 (08-004) - BASIC HYDRAULIC CIRCUIT, MODELS WITH ELECTRONIC STEERING, PRIOR TO P.I.N. JAF0003171 (35) - HYDRAULIC SYSTEMS

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

3

H433853

HOSE

51 inch (1300 mm) long, dual pump suction

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

1шт.

5

H201301

GUARD

hose

1шт.

6

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

straight, 1-5/8-12 flare x 1-1/4 inch PT

1шт.

7

H434204

BAFFLE

SCREEN suction

1шт.

8

H434163

DUST CAP

1шт.

9

H434164

COUPLING

quick check, steering diagnostic device

1шт.

10

H434165

ELBOW

45 degree, special, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump to Priority Flow Divider Valve Tube

1шт.

13

H672274

TUBE,15.9 mm OD

priority flow divider, valve supply

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

VALVE ASSEMBLY, priority flow divider, see Fig. 5-38 or 5-40 for correct assembly and components

1шт.

17

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

H672276

TUBE,12.7 mm OD

rear priority flow divider valve to rear steering control valve, see Fig. 5-22 for models equipped with H672747 pressure reducing valve, if used

1шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY, control, rear steering, see Fig. 5-34 or 5-36 for correct assembly and components, mounting parts on Fig. 5-8

1шт.

23

218-5503

TEE,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring Br

TEE, 7/8-14 adj O-ring branch x 1-1/16-12 inch flare x flare, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return

1шт.

26

H212951

HOSE

24 inch (610 mm) long, cut from H379214 bulk, return, not used when unit is equipped with a backhoe, see below

1шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

27

H309906

SPRING

12 inch (305 mm) long, not used when unit is equipped with a backhoe

1шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

28

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Not used when unit is equipped with a backhoe

2шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

29

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return

1шт.

30

218-596

TEE,1 1/16"-12 37 Degree

TEE, 1-1/16-12 inch flare branch x flare x flare

1шт.

31

H434096

BRACKET

tube support

1шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

35

230-4216

LOCK NUT,3/8"-16, GA

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.

36

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

backhoe supply line

1шт.

37

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

38

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

39

218-335

CAP,37 Degree, 1 1/16"-12

Hex

2шт.

40

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Priority Valve Tee to return Line Tee

1шт.

41

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 43

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

44

L74334

PIPE

33 inch (838 mm) long, power beyond

1шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 46

1шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

See Fig. 8-40 for backhoe supply and return lines

1шт.

47

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW, 90 degree, 3/8 stem end x 9/16-18 inch adj. O-ring boss, Includes: Ref. 48

1шт.

49

H433724

LARGE HOSE

HOSE,LARGE 11 inch (279 mm) long, cut from H434205 bulk hose, priority valve return, see below

1шт.

50

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Adj.

2шт.

51

H672485

TUBE,19.05 mm OD

manifold, rear steering valve drain

1шт.

52

A57185

HOSE

4-3/4 inch (121 mm) long, cut from D55911 bulk hose, backhoe return line, see below

1шт.

53

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

54

H672308

TUBE,25.4 mm OD x 150, 106 mm L

hose to filter, front drain manifold

1шт.

55

H672487

TUBE,19.05 mm OD x 80, 80 mm L

backhoe return line

1шт.

56

H317313

HOSE ASSY.

28 inch (711 mm) long, cut from H379214 bulk hose, backhoe return line, see below

1шт.

57

H672486

TUBE,19.05 mm OD x 146, 71 mm L

return, backhoe line

1шт.

58

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

59

A12032

CLAMP

tube, use existing hardware in some applications

5шт.

60

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

61

230-4215

NUT,5/16"-18, GA

1шт.

H434205

HYDRAULIC HOSE,9.52 mm ID x 655.00 mm, SAE 30R2 Type 2

Use to make Ref. 49

1шт.

D55911

HOSE

bulk, 3/4 inch (19 mm) ID x 28 inch (711 mm) long, use to make Ref. 52

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 56

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
