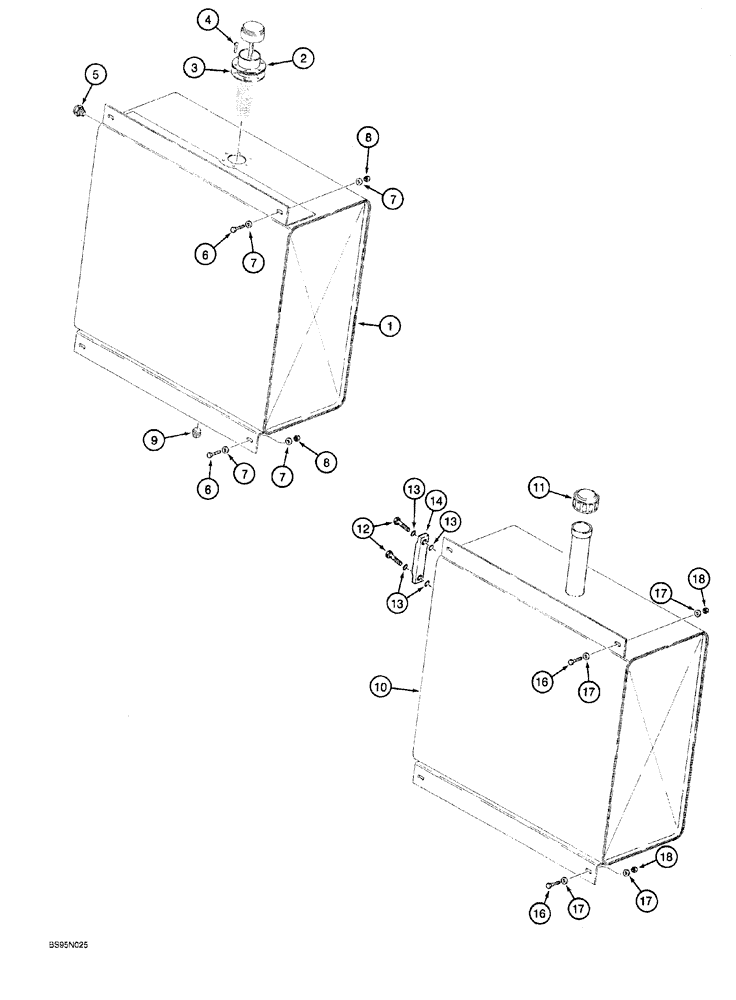

Запчасти Case 760 (08-002) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

H673055

RESERVOIR

ASSEMBLY, hydraulic oil, no longer available, order Refs. 10 - 15 shown below, H438327 decal, Ref. 22 on Fig. 9-150, and 8-80350 instruction sheet, H673055, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR hydraulic oil, H673055

1шт.

2

N13366

BREATHER

ASSEMBLY, filler neck, includes cap, H673055 hydraulic oil reservoir, Includes: Ref. 3 and 4

1шт.

3

132907A1

GASKET

breather, H673055 hydraulic oil reservoir

1шт.

4

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

H673055 hydraulic oil reservoir

6шт.

5

D63875

PLUG

GAUGE sight, hydraulic oil level, H673055, reservoir

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

H673055 hydraulic oil reservoir

4шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, H673055 hydraulic oil reservoir

8шт.

8

232-4116

NUT,3/8"-16, GC

H673055 Hydraulic oil reservoir

4шт.

9

221-48

PLUG

square, 3/4 inch PT, hollow core, H673066 hydraulic oil reservoir

1шт.

10

103629A1

TANK, HYDRAULIC OIL

RESERVOIR, 10362A1

1шт.

11

H674463

PLUG

CAP with filter, 10362A1 hydraulic oil reservoir

1шт.

L116247

GAUGE

ASSEMBLY, sight, 10362A1 hydraulic oil reservoir, Includes: Ref. 12 - 14

1шт.

12

N13213

BOLT

special, sight gauge, 10362A1 hydraulic oil reservoir

2шт.

13

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge, 10362A1 hydraulic oil reservoir

4шт.

14

NSS

NOT SOLD SEPARAT

GAUGE sight, order L116247 assembly, 10362A1 hydraulic oil reservoir

1шт.

15

205-67

HOLE PLUG BUTTON,2"

button, 2 inch, not shown, 10362A1 hydraulic oil reservoir

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10362A1 hydraulic oil reservoir

4шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 10362A1 hydraulic oil reservoir

8шт.

18

232-4116

NUT,3/8"-16, GC

10362A1 Hydraulic oil reservoir

4шт.
