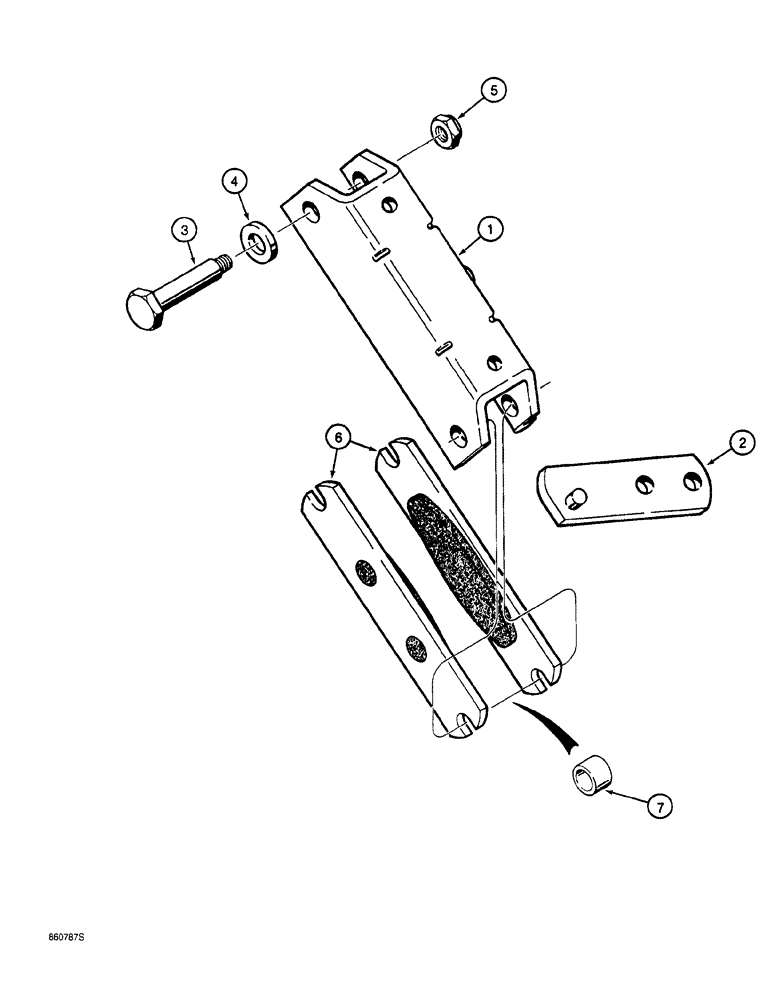

Запчасти Case 760 (07-004) - PARKING BRAKE CALIPER - H638718 (33) - BRAKES & CONTROLS

H638718

CALIPER

ASSEMBLY, parking brake, no longer available, order H673926, parts list Fig. 7-6, Includes: Ref. 1 - 6

1шт.

1

H391334

BRACKET

caliper mounting

1шт.

2

H391326

LEVER

actuating

1шт.

3

H391300

BOLT

shoulder, special

2шт.

4

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32")

2шт.

5

131-508

NUT,3/8"-16

heavy hex, self-locking, 3/8 inch NC

2шт.

6

H391318

BRAKE LINING

LINING, BRAKE PAD, parking, shoe

2шт.

7

H433988

SPRING

urethane, brake shoe return

2шт.
