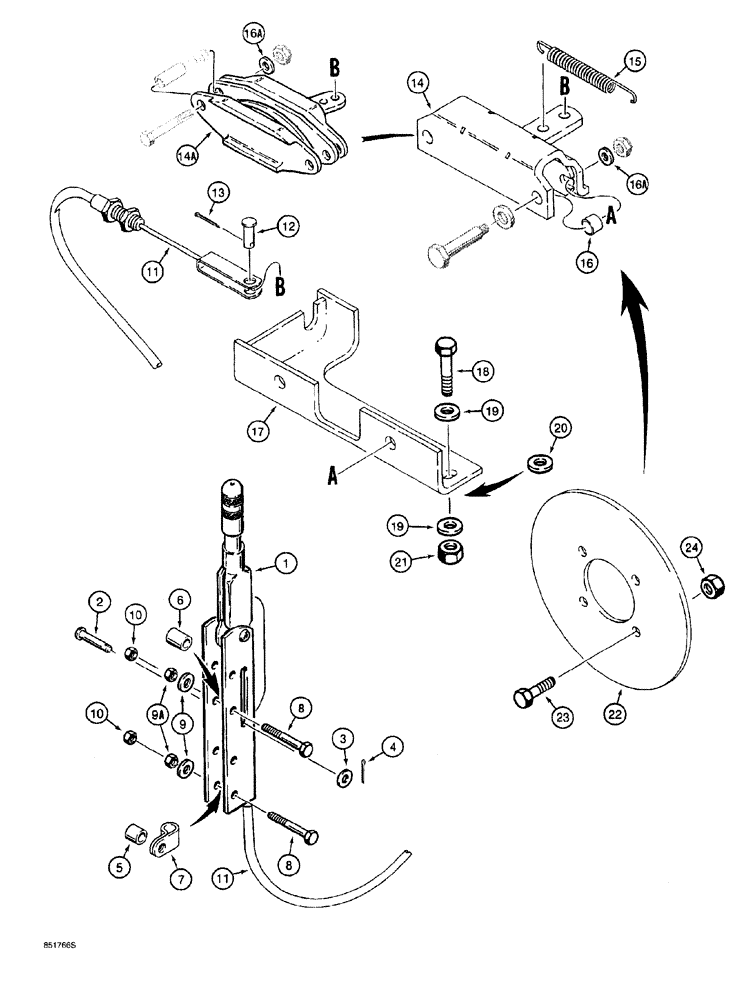

Запчасти Case 760 (07-002) - PARKING BRAKE (33) - BRAKES & CONTROLS

H506881

HANDLE

ASSEMBLY, parking brake, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

2

D42458

PIN

clevis, special

1шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

H53959

SPACER

brake lever, 1/2 inch (13 mm) long

1шт.

6

H53942

SPACER

brake lever, 3/4 inch (20 mm) long

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

parking brake cable

1шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

9

H426775

WASHER

flat, special, hardened

2шт.

9a

425-105

NUT,5/16"-18, G5

2шт.

10

230-4215

NUT,5/16"-18, GA

2шт.

11

H433975

CABLE

parking brake

1шт.

12

H44586

AXLE PIN

clevis, special, parking brake, Serial Range: cable-caliper

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1шт.

14

H638718

CALIPER

ASSEMBLY, parking brake, parts list Fig. 7-4, no longer available, replace with Ref. 14A, H673926

1шт.

14a

H673926

CALIPER

ASSEMBLY, parking brake, parts list Fig. 7-6

1шт.

15

H358069

SPRING

return

1шт.

16

H433988

SPRING

urethane, brake shoe return, used with H638718 caliper assembly only

2шт.

16a

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

17

H672411

CHANNEL

BRACKET, brake caliper mounting

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

21

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

2шт.

22

H336412

BRAKE DISC

DISC, BRAKE parking

1шт.

23

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

hex, 7/16 NF x 1-1/4 inch

4шт.

24

232-4617

LOCK NUT,7/16"-20, GC

4шт.
