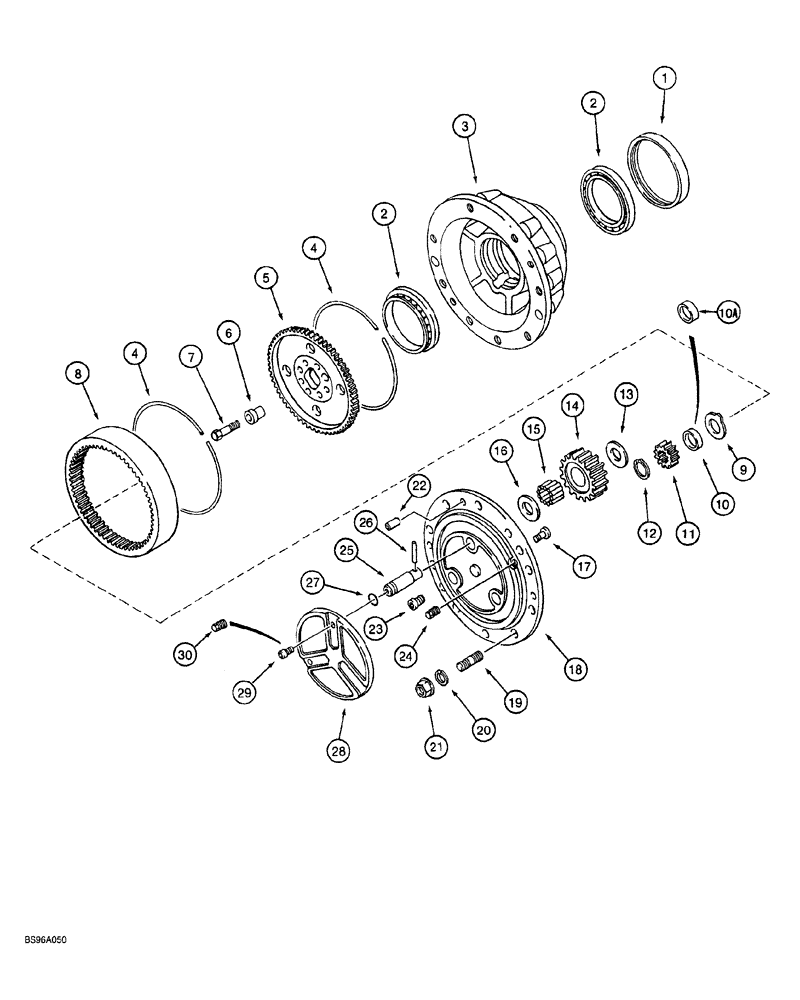

Запчасти Case 760 (06-064) - FRONT AND REAR AXLES, PLANETARY (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes parts listed on Figs. 6-52 - 6-62 and 6-66, Includes: Ref. 1 - 30

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-52 - 6-62 and 6-66, Includes: Ref. 1 - 30

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

ball, hub

4шт.

3

K395123

HUB

wheel attaching

2шт.

4

K395095

CIRCLIP

locking

4шт.

Refs. used prior to axle SN WA/1042 on H669895 axle and prior to axle SN WA/1018 on H672080

1шт.

4a

H437679

RING, SNAP

RING SNAP locking, not shown

4шт.

Refs. used on axle SN WA/1042 and after on H669895 axle and axle SN WA/1018 and after on H672080

1шт.

5

K395126

WHEEL

GEAR support

2шт.

Refs. used prior to axle SN WA/1042 on H669895 axle and prior to axle SN WA/1018 on H672080

1шт.

5a

H437678

RING, FLYWHEEL

GEAR support, not shown

2шт.

Refs.used on axle SN WA/1042 and after on H669895 axle and axle SN WA/1018 and after on H672080

1шт.

6

107071A1

BUSHING

20 mm OD, Replaces K395105

14шт.

6

107072A1

CENTERING RING

BUSHING, 24 mm O.D., replaces K395104

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

Special

16шт.

8

K395113

GEAR

internal-tooth

2шт.

Refs. used prior to axle SN WA/1042 on H669895 axle and prior to axle SN WA/1018 on H672080

1шт.

8a

H437677

GEAR, RING

RING, GEAR internal-tooth, not shown

2шт.

Refs. used on axle SN WA/1042 and after on H669895 axle and axle SN WA/1018 and after on H672080

1шт.

9

K395115

WASHER

tab locking, special, no longer available, replaced by Ref. 10A, 107073A1 spacer

2шт.

10

K395121

SPACER

SPACER pinion gear, no longer available, replaced by Ref. 10A, 107073A1

2шт.

10a

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER pinion gear

2шт.

11

K395114

GEAR

pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING SNAP pinion gear retaining

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

thrust, planetary gear, inner

6шт.

14

N13513

GEAR,29 T

Planetary

6шт.

15

119686A1

10 NEEDLE BRG KIT

BEARING, package of 10, planetary gear

18шт.

16

K395091

THRUST WASHER

Planetary gear, Outer

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

locking, planetary cover

2шт.

18

N13516

COVER

planetary

2шт.

19

K260218

STUD

without collar, special, not shown

12шт.

19

N13515

STUD

with collar, special

4шт.

20

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

lock, special

16шт.

21

K395089

WHEEL NUT

hex, special

16шт.

22

K395094

DOWEL,M18 x 36

Planetary cover

4шт.

23

K395029

SCREW

special, planetary cover

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

N13517

PIN,34.4mm OD x 80mm L

SHAFT planetary gear

6шт.

26

838-5436

LOCK PIN,M4 x 36, Slotted

Replaces K261891

6шт.

27

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

6шт.

28

K395135

COVER

PLATE planetary, if used

2шт.

29

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Replaces K395082, Used with K395135 planetary cover plate

6шт.

30

138866A1

PLUG

planetary cover, used on models without Ref. 28 plate

6шт.
