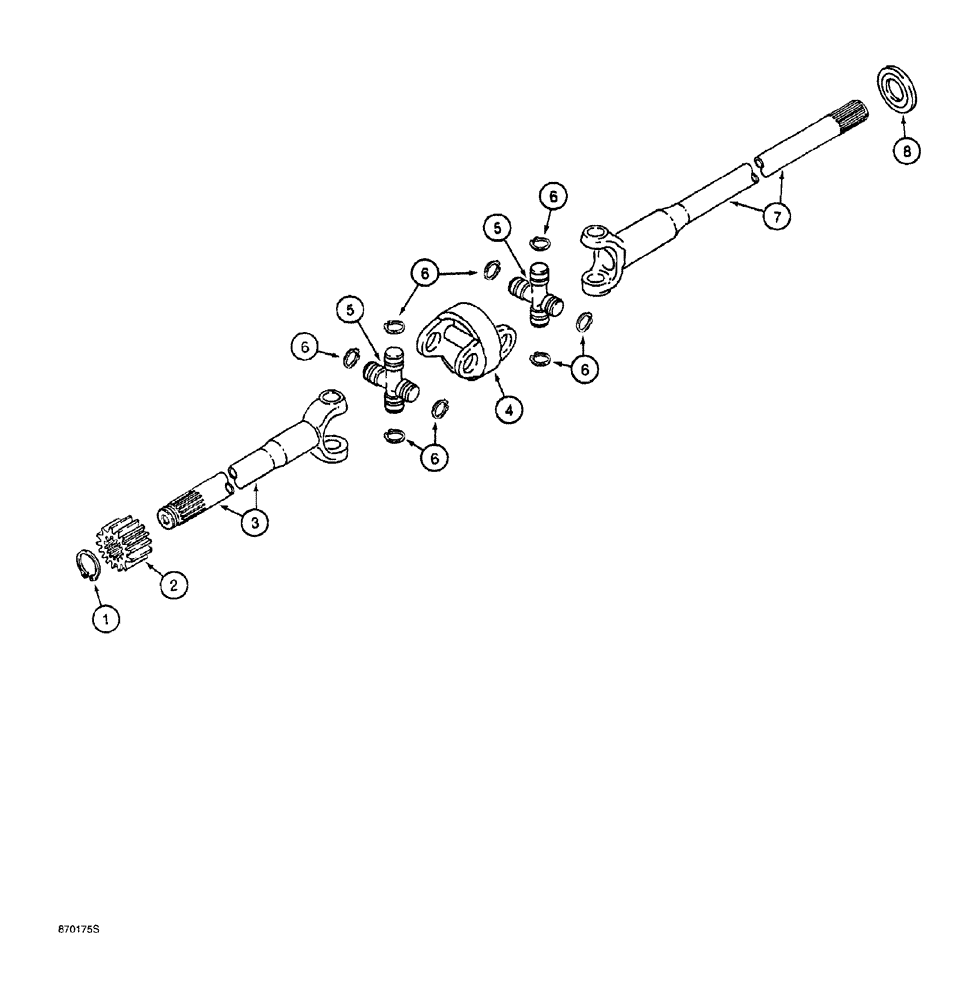

Запчасти Case 760 (06-062) - FRONT AND REAR AXLES, AXLE SHAFTS, USED ON MODELS WITH AXLE SN B310 (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes listed on Figs. 6-52 - 6-60 and 6-64 - 6-66, Includes: Ref. 1 - 8

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-52 - 6-60 and 6-64 - 6-66, Includes: Ref. 1 - 8

1шт.

1

K261897

RING, SNAP

RING SNAP axle shaft

2шт.

2

K395114

GEAR

pinion, axle shaft

2шт.

N14156

SHAFT

ASSEMBLY, axle, Includes: Ref. 3 - 7

2шт.

3

N14409

SHAFT

axle, wheel side, short

1шт.

4

N14412

BODY

connecting

1шт.

5

N14411

U-JOINT SPIDER

axle shaft, cross

2шт.

6

N14410

RING

snap, universal joint

8шт.

7

N14413

SHAFT

axle, differential side, long

1шт.

8

1966164C1

OIL SEAL

axle shaft, replaces K395103

2шт.
