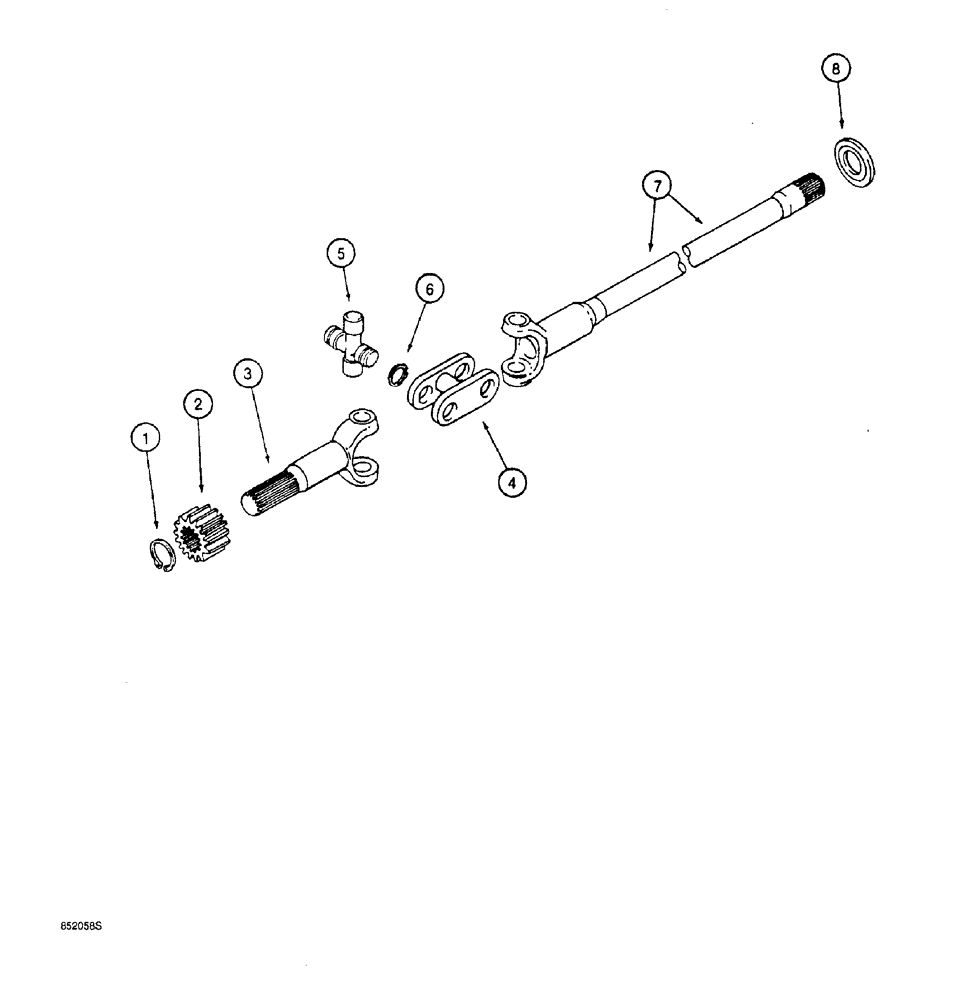

Запчасти Case 760 (06-060) - FRONT AND REAR AXLES, AXLE SHAFTS, USED ON MODELS WITH AXLE SN B210 (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes parts listed on Figs. 6-52 - 6-58 and 6-62 - 6-66, Includes: Ref. 1 - 8

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-52 - 6-58 and 6-62 - 6-66, Includes: Ref. 1 - 8

1шт.

1

K261897

RING, SNAP

RING SNAP axle shaft

2шт.

2

K395114

GEAR

pinion, axle shaft

2шт.

3

N13510

SHAFT

axle, short

2шт.

To replace B210 series axle shafts with B310 series axle shafts, order N14156 shaft assembly shown on Fig. 6-62

1шт.

4

K262199

FORK

FLANGE connecting

2шт.

To replace B210 series axle shafts with B310 series axle shafts, order N14156 shaft assembly shown on Fig. 6-62

1шт.

5

K262161

U-JOINT SPIDER

axle shaft

4шт.

To replace B210 series axle shafts with B310 series axle shafts, order N14156 shaft assembly shown on Fig. 6-62

1шт.

6

K965336

RING, SNAP

RING SNAP universal joint

16шт.

To replace B210 series axle shafts with B310 series axle shafts, order N14156 shaft assembly shown on Fig. 6-62

1шт.

7

N13509

SHAFT

axle, long

2шт.

To replace B210 series axle shafts with B310 series axle shafts, order N14156 shaft assembly shown on Fig. 6-62

1шт.

8

1966164C1

OIL SEAL

axle shaft, replaces K395103

2шт.
