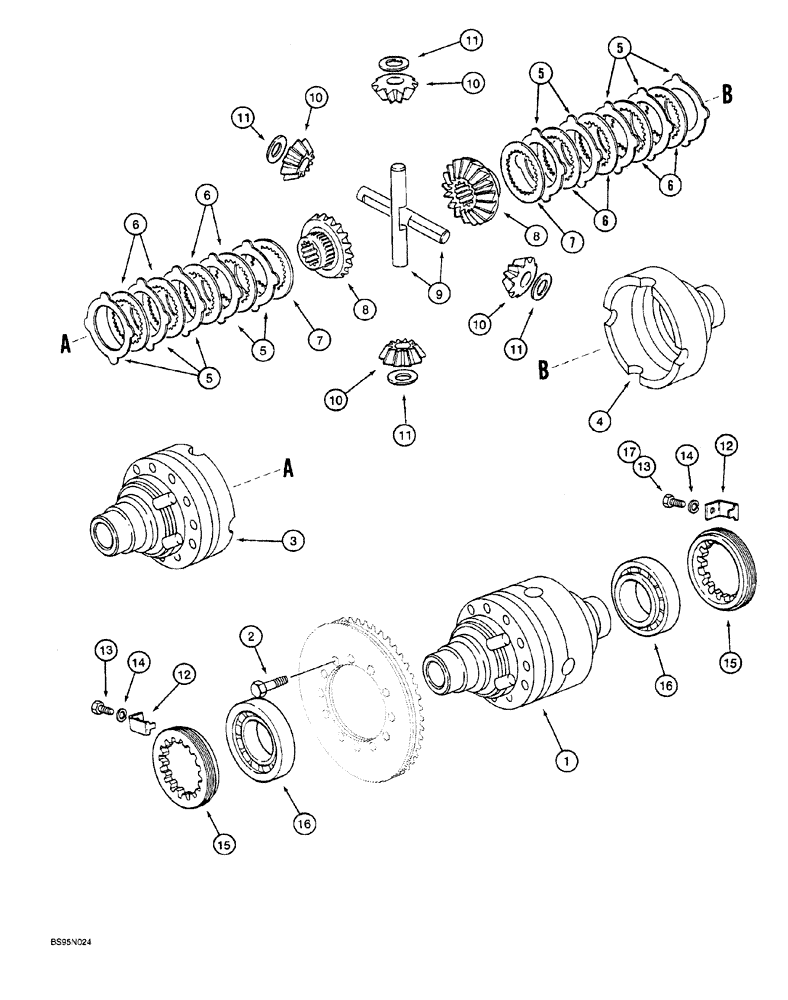

Запчасти Case 760 (06-058) - FRONT AND REAR AXLES, DIFFERENTIAL (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes parts listed on Figs. 6-52 - 6-56 and 6-60 - 6-66, Includes: Ref. 1 - 17

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-52 - 6-56 and 6-60 - 6-66, Includes: Ref. 1 - 17

1шт.

1

N13508

DIFFERENTIAL

HOUSING ASSEMBLY, self-locking, no longer available, order Ref. 1A, 109686A1, Includes: Ref. 2 - 4

1шт.

This housing assembly used prior to axle SN WA/0958 on H669895 axle and prior to axle SN WB/0958 on H672080

1шт.

1a

109686A1

HOUSING ASSY.

differential, not shown, replaces N13508 or 1349056C1, Includes: Ref. 2 - 4

1шт.

This housing assembly used on axle SN WA/0958 and after on H669895 axle and axle SN WB/0958 and after on H672080

1шт.

2

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

Replaces 827-10080, 800 mm

12шт.

3

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

5

1966155C1

PLATE

drive, friction, outer, replaces K261862

10шт.

6

1966156C1

WASHER

PLATE driven, friction, inner, replaces K261863

8шт.

7

1966154C1

PLATE

backing, replaces 1966154C1

2шт.

231987A1

SET OF PARTS

GEAR ASSEMBLY, pinion, Includes: Ref. 8 - 11

1шт.

8

1349057C1

PINION

GEAR side, differential, replaces K395077

2шт.

9

N13507

PIN

SHAFT pinion gear

2шт.

10

N14408

SUN GEAR

GEAR pinion, differential

4шт.

11

K395075

THRUST WASHER

Pinion gear

4шт.

12

1966153C1

LOCKING PLATE

BRACKET, replaces K261869

2шт.

13

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

No Longer Used, Order Ref.17, 112486A1, Self-locking

2шт.

14

892-11006

LOCK WASHER,M6

No Longer Used, Order Ref. 17, 112486A1 Self-Locking Bolt

2шт.

15

1966559C1

NUT

Replaces K261868

2шт.

16

K395027

TAPERED BEARING

Differential

2шт.

17

112486A1

BOLT,Hex, M6 x 12

hex, self-locking, special

2шт.
