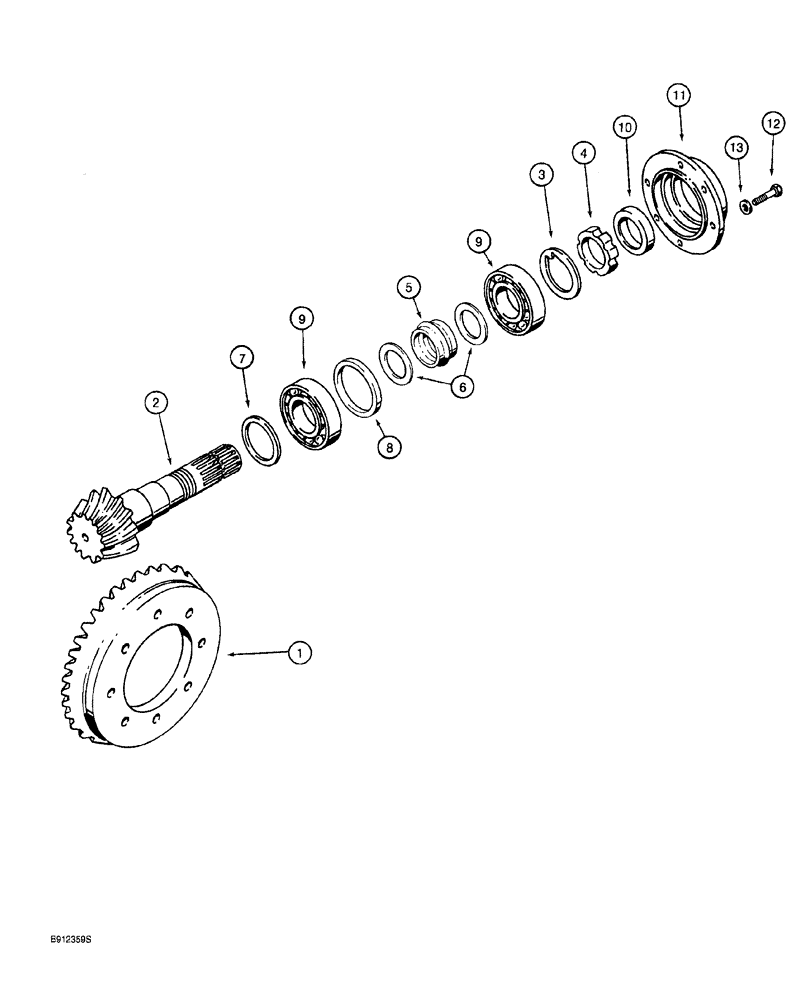

Запчасти Case 760 (06-056) - FRONT AND REAR AXLES, RING AND PINION GEAR SET (23) - FOUR WHEEL DRIVE SYSTEM

H669895

AXLE

ASSEMBLY, front, also includes parts listed on Figs. 6-52 - 6-55A and 6-58 - 6-66, Includes: Ref. 1 - 13

1шт.

H672080

AXLE

ASSEMBLY, rear, also includes parts listed on Figs. 6-52 -6-55A and 6-58 - 6-66, Includes: Ref. 1 - 13

1шт.

N13506

BEVEL GEAR

ASSEMBLY, ring and pinion, used with H669895 front axle, Includes: Ref. 1 - 6

1шт.

N13500

GEAR

ASSEMBLY, ring and pinion set, used with H672080 rear axle, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR pinion, differential

1шт.

3

K261065

LOCK WASHER

special, replaces N7536

1шт.

4

K261014

RING NUT,M40 x 1.5

RING, pinion gear, replaces K261852

1шт.

5

1349058C1

SPACER

collapsible, replaces N14406

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

spacer, if used

2шт.

7

K965280

SHIM,2.50mm Thk

If used

1шт.

7

K965282

SHIM,2.60mm Thk

If used

1шт.

7

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

If used

1шт.

7

K965286

SHIM,2.85mm Thk

If used

1шт.

7

K965288

SHIM,2.90mm Thk

If used

1шт.

7

K965290

SPACER

SHIM, 3.00 mm thick, if used

1шт.

7

K965292

SHIM,3.10mm Thk

If used

1шт.

7

K965294

SHIM,3.20mm Thk

If used

1шт.

7

K965296

SHIM,3.30mm Thk

If used

1шт.

7

K965298

SHIM,3.40mm Thk

If used

1шт.

8

N14405

SPACER

bearing, narrow, if used

1шт.

9

K395090

TAPERED BEARING,40mm ID x 90mm OD

Pinion gear

2шт.

10

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

1шт.

11

K395055

COVER

differential

1шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Cover mounting

6шт.

13

892-11006

LOCK WASHER,M6

6шт.
